Integra DTR-8.4 - Manual (Page 31)

31
Connecting the DTR-8.4 —Continued
This section shows how to connect a VCR for recording
from a TV or another VCR.
Video Connections
• Use an S-Video cable to connect the DTR-8.4’s
S VIDEO VIDEO 1 OUT to an S-Video input on your
recording VCR. Use another S-Video cable to connect
the DTR-8.4’s S VIDEO VIDEO 3 IN to an S-Video
output on your TV or playback VCR, as shown.
OR
• Use a composite video cable to connect the DTR-8.4’s
VIDEO VIDEO 1 OUT to a composite video input on
your recording VCR. Use another composite video
cable to connect the DTR-8.4’s VIDEO VIDEO 3 IN
to a composite video output on your TV or playback
VCR, as shown.
Audio Connections
• Use an analog audio cable (RCA/phono) to connect
the DTR-8.4’s AUDIO VIDEO 1 L/R OUTs to the
audio inputs on your recording VCR.
• Use an analog audio cable (RCA/phono) to connect
the DTR-8.4’s AUDIO VIDEO 3 L/R IN inputs to the
audio outputs on your TV or playback VCR.
Playback from the Recording VCR
To enjoy playback from the recording VCR through the
DTR-8.4, use an S-Video cable to connect the DTR-8.4’s
S VIDEO VIDEO 1 IN input to an S-Video output on
your recording VCR, or use a composite video cable to
connect the DTR-8.4’s VIDEO VIDEO 1 IN input to a
composite video output on your recording VCR, and use
an analog audio cable (RCA/phono) to connect the
DTR-8.4’s AUDIO VIDEO 1 L/R IN inputs to the audio
outputs on your recording VCR.
Notes:
• The DTR-8.4 must be turned On for recording.
Recording is not possible while it’s in Standby mode.
• If you want to record directly from your TV or play-
back VCR to your recording VCR without going
through the DTR-8.4, connect your TV/VCR’s audio
and video outputs directly to your recording VCR’s
AV inputs. See the manuals supplied with your TV and
VCR for details.
• Video signals connected to composite video inputs
can only be recorded via composite video outputs. If
your TV and video playback components are con-
nected via composite video, you must connect your
recording VCR via composite video as well. Similarly,
video signals connected to S-Video inputs can only be
recorded via S-Video outputs. If your TV and video
playback components are connected via S-Video, you
must connect your recording VCR via S-Video as
well.

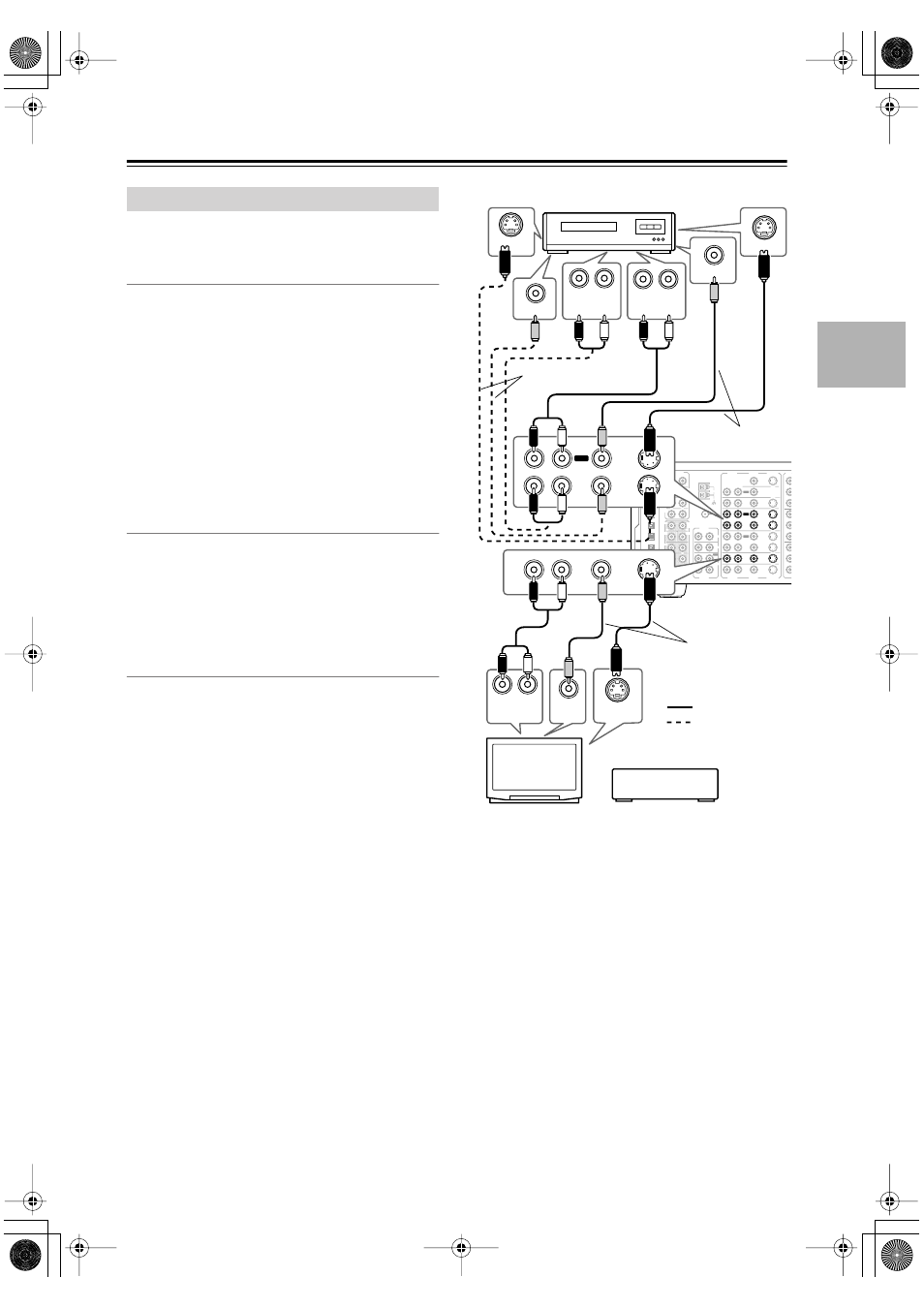

Connecting a VCR for Recording
FM
75
OUT
OUT
OUT
OUT
L
PHONO
DIGITAL IN PRE OUT
DIGITAL OUT
OPT
OPT
2
1
2
3
4
1
2
FRONT
SUB
SURR
R L
AUDIO R L
CD
TAPE
R L
AUDIO VIDEO S VIDEO
MONITOR OUT
R L
IN
IN
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO AUDIO VIDEO S VIDEO
1
3
GND
SURR BACK/ ZONE 2
R L IN
COAX
R
CENTER
R L
MULTI CH
INPUT FRONT
SUB
SURR
SURR
BACK
CENTER
R L
AM
ANTENNA COM V
VIDEO
OUT
S VIDEO
OUT
L R
AUDIO
OUTPUT
IN VIDEO 3
OUT
VIDEO 1
L R
S VIDEO IN
VIDEO IN
AUDIO
INPUT
L R
S VIDEO OUT
VIDEO OUT
AUDIO
OUTPUT
IN
L R
L R
:
:
Connect one
or the other
TV
VCR
Connect one
or the other
Connect one
or the other
For recording
For playback
VCR, etc. or
