Front & Rear Panels —Continued
For detailed information, refer to the pages in parenthesis.
A DIGITAL IN COAX 1–3, OPT 1–4 (28, 30, 32,
34, 35)
These coaxial and optical digital audio inputs can be
used to connect CD, DVD, or LD (laser disc) play-
ers and other components with digital audio outputs.
B DIGITAL OUT OPT 1 & 2 (35)
These optical digital audio outputs can be used to
connect a CD recorder or other digital recorder with
digital inputs.
C PRE OUT—FRONT L/R, SUB, CENTER,
SURR L/R (36)
If you use the DTR-8.4 as a preamp, these analog
audio outputs can be connected to the inputs on a
separate power amp. The SUB output is used to
connect a powered subwoofer.
D PRE OUT—SURR BACK/ZONE 2 (36, 84)
These analog audio outputs can be used to feed the
L/R surround back inputs on a separate power amp
when the DTR-8.4 is used as a preamp, or to feed a
power amp in Zone 2.
E MULTI CH INPUT—FRONT L/R, SUB,
CENTER, SURR L/R, SURR BACK L/R (29)
These analog audio inputs can be used to connect AV
components with multiple analog audio outputs,
including DVD players with individual 5.1/7.1 sur-
round analog audio outputs.
F AM ANTENNA (24)
These push terminals are for connecting an AM
antenna.
G FM ANTENNA (24)
This connector is for connecting an FM antenna.
H PHONO IN (35)
These analog inputs can be used to connect a turnta-
ble with a moving-magnet cartridge.
I CD IN (34)
These analog inputs can be used to connect a CD
player with analog outputs.

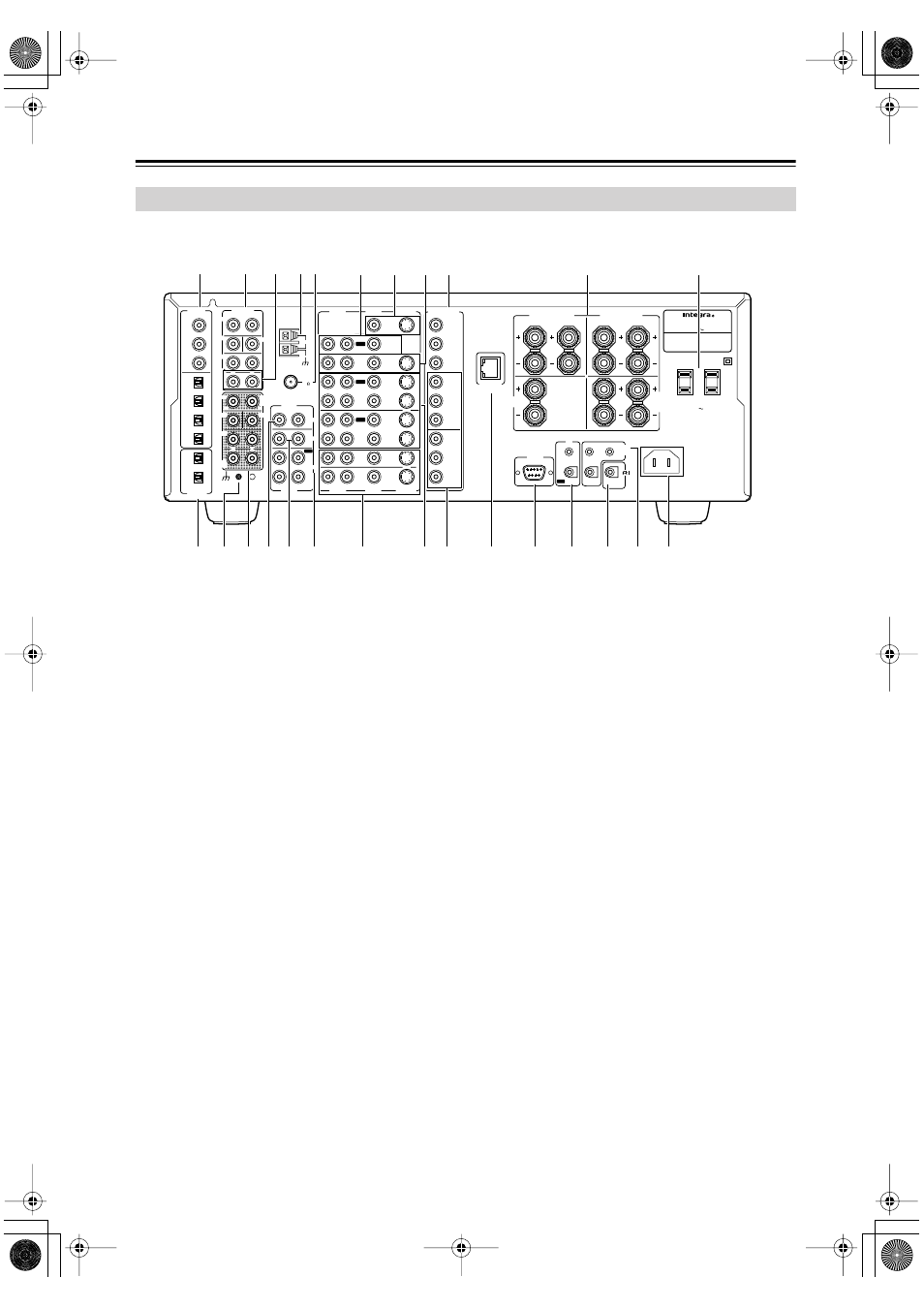

Rear Panel
