1.3
Getting started
6 Side cover — Open to fix a printout jam.
7 Multi paper tray — One of two locations where you put the recording paper
(the paper cassette is the other). Holds only one sheet, either letter, legal or
half-letter size paper.
8 Top cover release — Pull up on this to open the top cover.
9 Top cover — Opens to provide access for changing the toner and drum car-
tridge (or, occasionally, fixing printout jams).
10 Book-cover — Opens to scan an original document using the flatbed scanner
(
FBS ).
11 Document tray — Holds original documents placed for scanning into the
machine for faxing/copying.
12 Document guides — Adjust these to fit the width of the original document
so it will feed properly into the machine.
13 Automatic document feeder ( ADF ) — The slot into which you place your
original document for faxing or copying. It holds up to 50 sheets of letter-sized
paper, 25 pages of legal-sized paper or 15 pages of 11
″ × 17 ″ (ledger or
tabloid)-sized paper.
14 Scanner cover — Opens this by using the scanner cover release to remove
original document paper jams.
15 Scanner cover release — Pull up on this to open the scanner cover.
16 Flatbed scanner ( FBS ) — Makes it possible for you to fax or copy objects and
even irregularly shaped sheets, just as on a conventional copier.
17

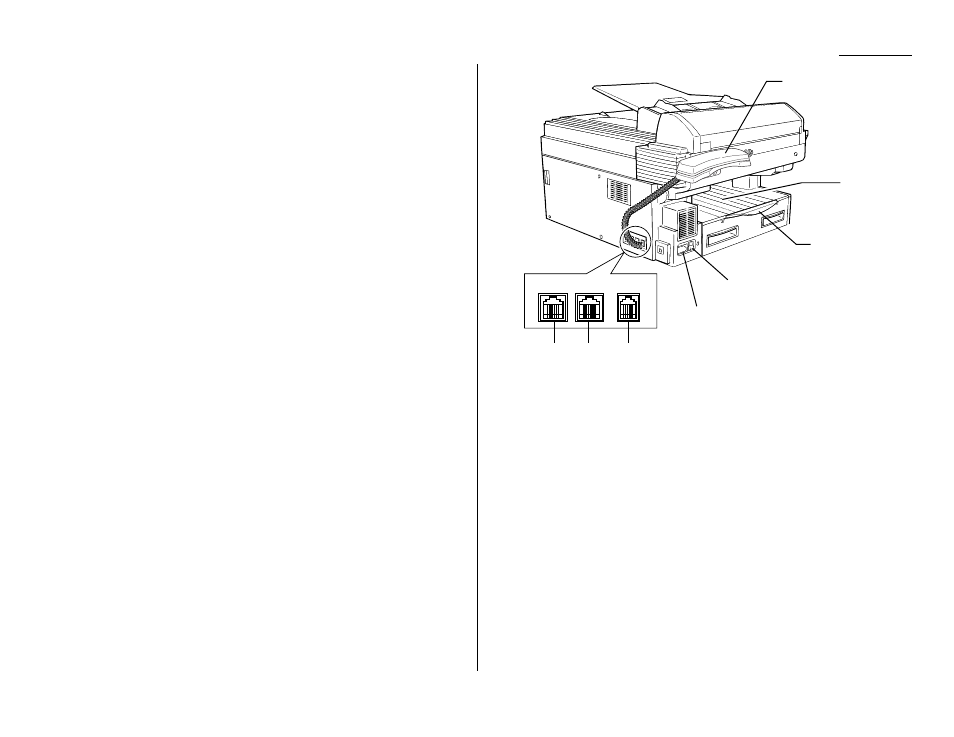

LINE jack — Where you plug in the telephone line cord. The other end of the
cord plugs into a wall telephone jack.
18 PHONE 2 jack — If you connect a second telephone to your machine, this is
where you plug in the cord.
19
PHONE 1 jack — Where you plug in the optional handset.
20 AC power jack — Where you plug in the ac power cord.
21
AC power switch — Turns your fax machine on and off.
22 Paper tray — Holds up the printout after it emerges.
23 Printed document exit — Where the printout emerges.
24 Optional handset — Used for voice communication. This handset is avail-
able from your authorized Muratec dealer, and can be added when you
purcahse the MFX-1500E or as an upgrade afterward.
17 18 19
LINE PHONE1 PHONE2
24
23
20
21
22
