Item Part No. Qty. Description Of Part
20 9114-4186 1 PRIMARY CARRIER ASSY, 8"
21 9114-4187 1 PRIMARY SUN GEAR, 8"
22 9104-4106 1 PLUNGER
23 9104-4107 1 O-RING
24 9104-4105 1 THRUST WASHER
25 9104-4361 1 PIPE PLUG
26 9114-4188 1 COVER
27 9112-4027 12 FLAT WASHER
28 9114-4189 12 HEX HD BOLT
29 9112-4024 1 DISENGAGE COVER
30 1 LOCK SCREW
31 9104-4101 1 MAGNETIC PLUG
32 9103-4389 1 PIPE PLUG
33 9103-4390 2 THRUST WASHER
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
NOTE: QUANTITIES SHOWN ARE
FOR ONE HUB ASSY ONLY.
Item Part No. Qty. Description Of Part
9104-3489 2 REAR STEERING AXLE DRIVE HUB,
(includes all items)
9104-4462 Ref REPAIR KIT, (includes items 7, 8 & 30)
1 9104-4276 1 RETAINING RING
2 9104-4277 1 COUPLING, 8"
3 9114-4175 1 SPRING
4 9114-4176 1 INPUT SHAFT, 8"
5 9104-4099 2 RETAINING RING
6 9114-4177 1 SPINDLE, 9"
7 1 SEAL
8 1 OIL SEAL
9 9020-2501 1 OUTER BEARING CONE
10 9020-2500 1 OUTER BEARING CUP
11 9104-4523 1 HUB, 8"
12 9104-4311 10 WHEEL BOLT
13 9114-4179 1 INNER BEARING CUP, 9"
14 9114-4180 1 INNER BEARING CONE, 9"
15 9114-4181 1 THRUST WASHER
16 9114-4182 1 LOCKWASHER
17 9114-4183 1 LOCK NUT
18 9114-4184 1 RING GEAR, 8"
19 9114-4185 1 SECONDARY CARRIER ASSY, 8"

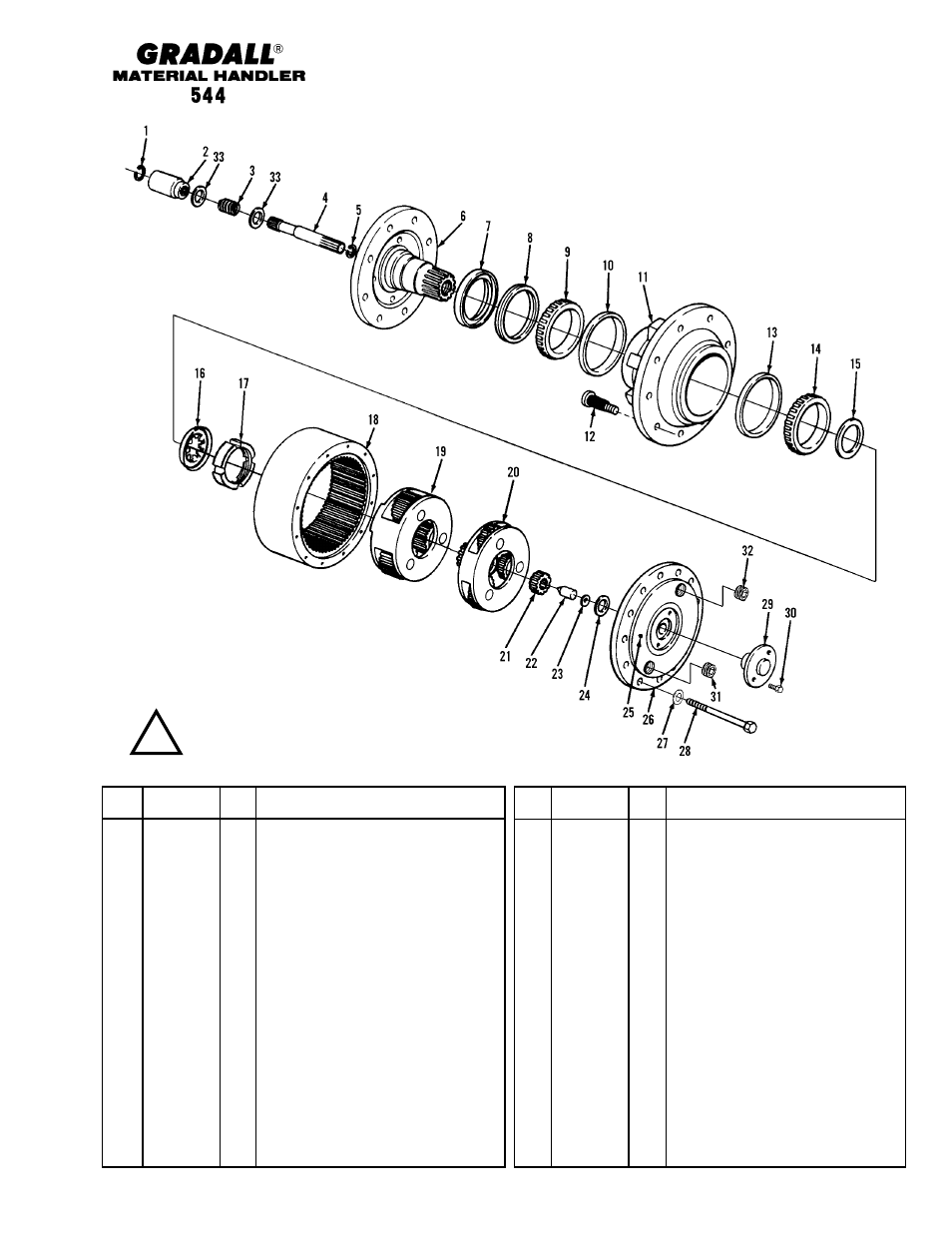

DRIVE TRAIN
(9104-3489) Rear Steering Axle Drive Hub
FOR SERVICE ONLY
Original Issue 4-95
Revised 7-30-04
DS 6-17 * Revised note on illustration & part number on items 20, 21 & 29; added inclusion note to Drive Hub.
NOTE: TO SERVICE ITEM 17, A SPECIAL
WRENCH IS REQUIRED.
ORDER P/N 9114-4325 WRENCH.
!
* *
*
*
