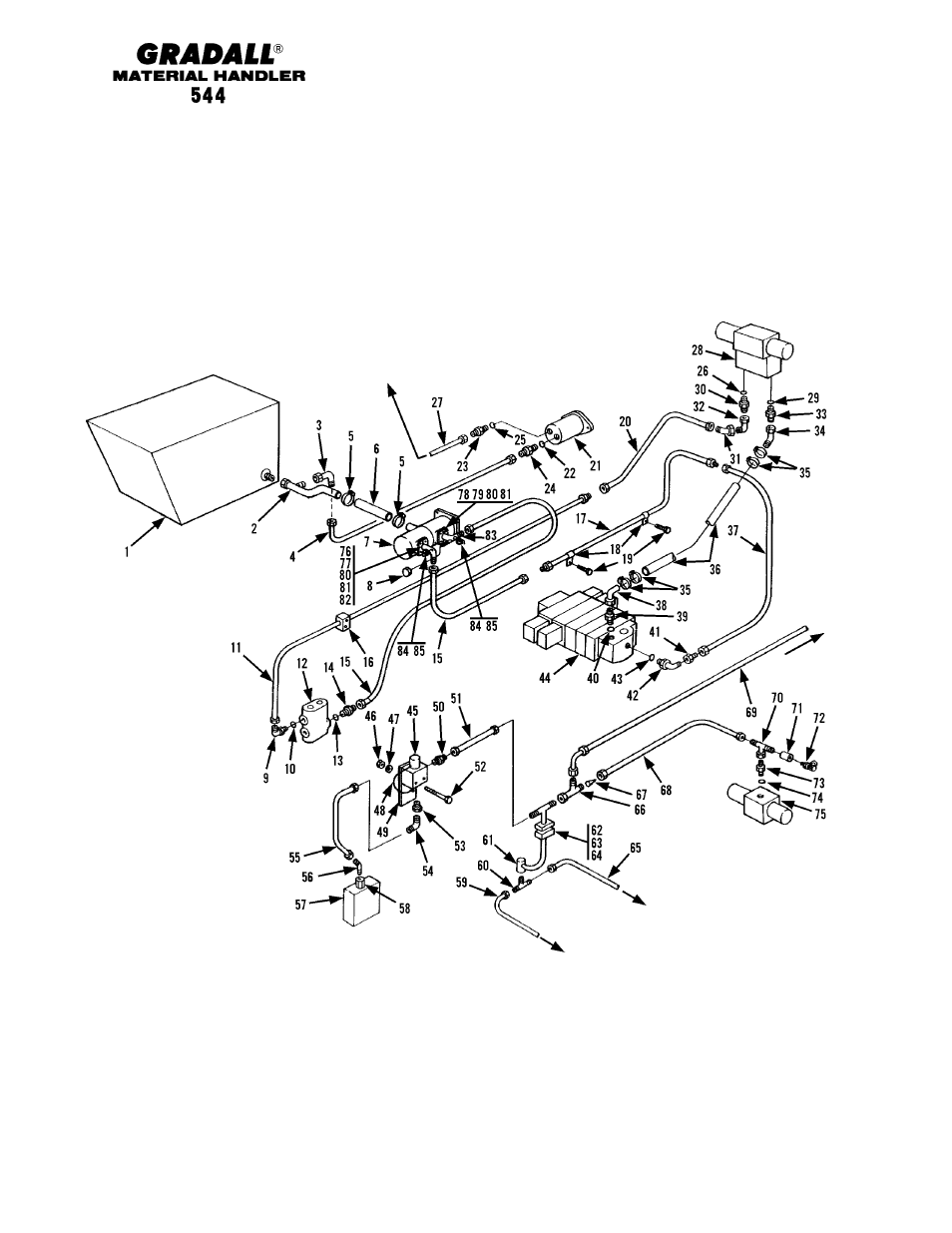

HYDRAULIC CIRCUITS
Oil Supply & Pressure Lines
Starting Serial No. 8655105G
Original Issue 6-86
Revised 10-92
9-1
TO PRESSURE PORT ON
ACCUMULATOR CHARGEVALVE
(SEE PAGE 8-4)
PRESSURE TO
SERIES PARALLEL
CONTROL VALVE
(SEE PAGE 9-16)
PRESSURE FROM TEE
IN RELIEF VALVE
(SEE PAGE 8-4)
PRESSURE TO
HYDRAULIC CONTROLLER
(SEE PAGE 9-14)
