Gradall 544 - Manual (Page 123)

Item Part No. Qty. Description Of Part
1 Ref MAIN CONTROL VALVE ASSY (see
page 10-10 for details)
2 8859-1207 2 O-RING
3 8866-2038 1 CONNECTOR (includes item 2)
4 8866-2108 2 ELBOW, 90 DEGREES (swivel nut)
5 8866-2008 1 CONNECTOR (includes item 2)
6 9104-3095 1 TUBE ASSY
7 9104-3096 1 TUBE ASSY
8 8471-6448 2 HOSE ASSY
9 8820-1035 2 HEX HD CAPSCREW, 3/8-16X1, GR5
10 9020-0483 2 TUBE CLAMP
11 8850-1006 2 HEX NUT, 3/8-16
12 8471-7799 2 HOSE ASSY
13 8867-1008 2 LUBE FITTING, STRAIGHT, 1/4-28
14 8820-1104 4 HEX HD CAPSCREW, 5/8-11X3-3/4,
GR5
15 9020-6892 2 PIN
Item Part No. Qty. Description Of Part
16 8850-1010 4 HEX NUT, 5/8-11
17 9104-5011 2 LIFT CYLINDER ASSY (includes
items 13 & 18 thru 27)
18 Ref LIFT CYLINDER ASSY (see page 10-
1 for details)
19 9104-3070 2 TUBE ASSY
20 8866-2062 4 ELBOW, 90 DEGREES (includes item
21)
21 8859-1202 4 O-RING
22 9104-3069 2 TUBE ASSY
23 8859-1102 2 O-RING
24 8820-1071 8 HEX HD CAPSCREW, 1/2-13X2-1/2,
GR5
25 8855-1013 8 LOCK WASHER, 1/2
26 9104-3232 2 COUNTERBALANCE VALVE ASSY
27 8867-1027 2 LUBE FITTING, 90 DEGREES, 1/4-28
28 9040-2875 2 PIN

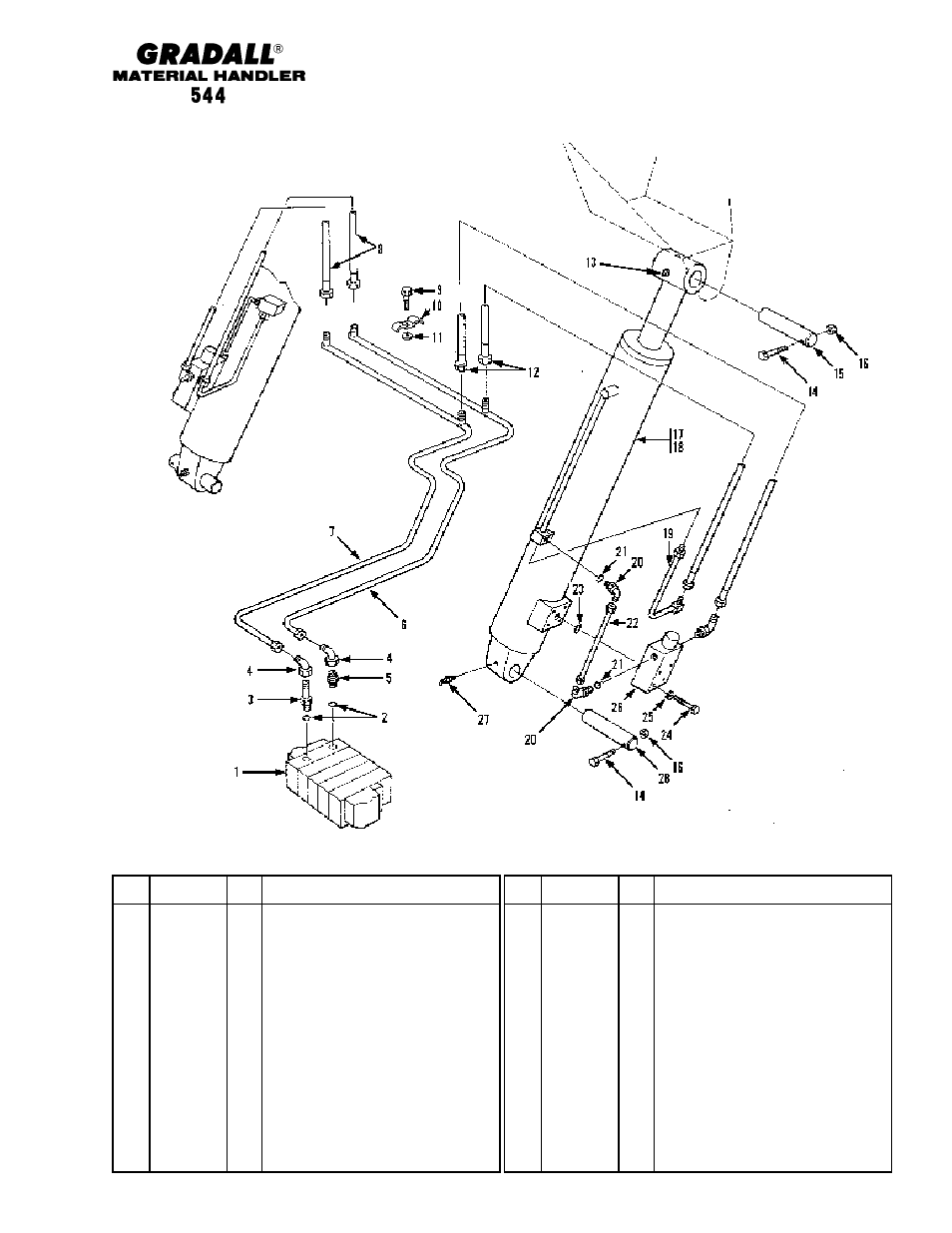

HYDRAULIC CIRCUITS
Lift Cylinder
Starting Serial No. 8755147G
Original Issue 11-87
Revised 2-89
PCN L-8684 9-8
