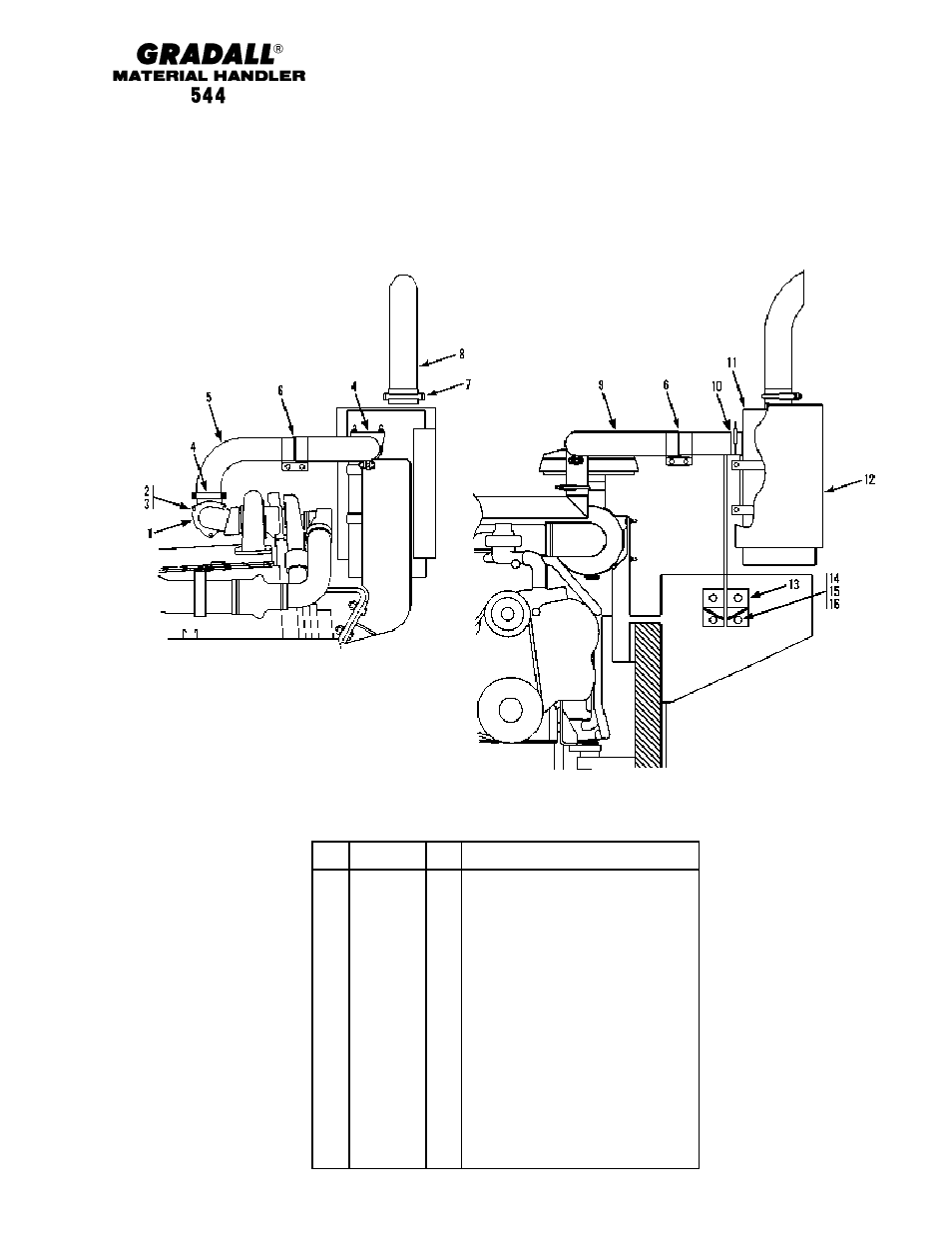

ENGINE & ATTACHING PARTS
Exhaust System
Starting Serial No. 8655105G
Original Issue 4-86
Revised 6-27-97
5-9
Item
Part No.
Qty.
Description Of Part
1
9104-6004
1
HEADER PIPE WELDMENT
2
8820-1534
3
HEX HD CAPSCREW, 3/8-24X1, GR5
3
8855-1011
3
LOCKWASHER, 3/8
4
8368-3175
2
MUFFLER CLAMP
5
9104-3148
1
EXHAUST PIPE
6
7721-3031
2
SEAL CLAMP
7
2492-1332
1
MUFFLER CLAMP
8
9104-3198
1
EXHAUST STACK
9
9104-3150
1
FLEXIBLE TUBE
10
9104-1016
1
SLEEVE
11
9104-3151
1
MUFFLER
12
9104-3197
1
MUFFLER CAGE (includes mounting
bands and hardware)
9104-4471
1
MUFFLER CAGE BAND KIT
13
9104-6005
1
MUFFLER BRACKET
14
8820-1068
4
HEX HD CAPSCREW, 1/2-13X1-3/4,
GR5
15
8855-1013
4
LOCKWASHER, 1/2
16
8850-1008
4
HEX NUT, 1/2-13
PERKINS ENGINE
*
* Corrected part number on item 10.
