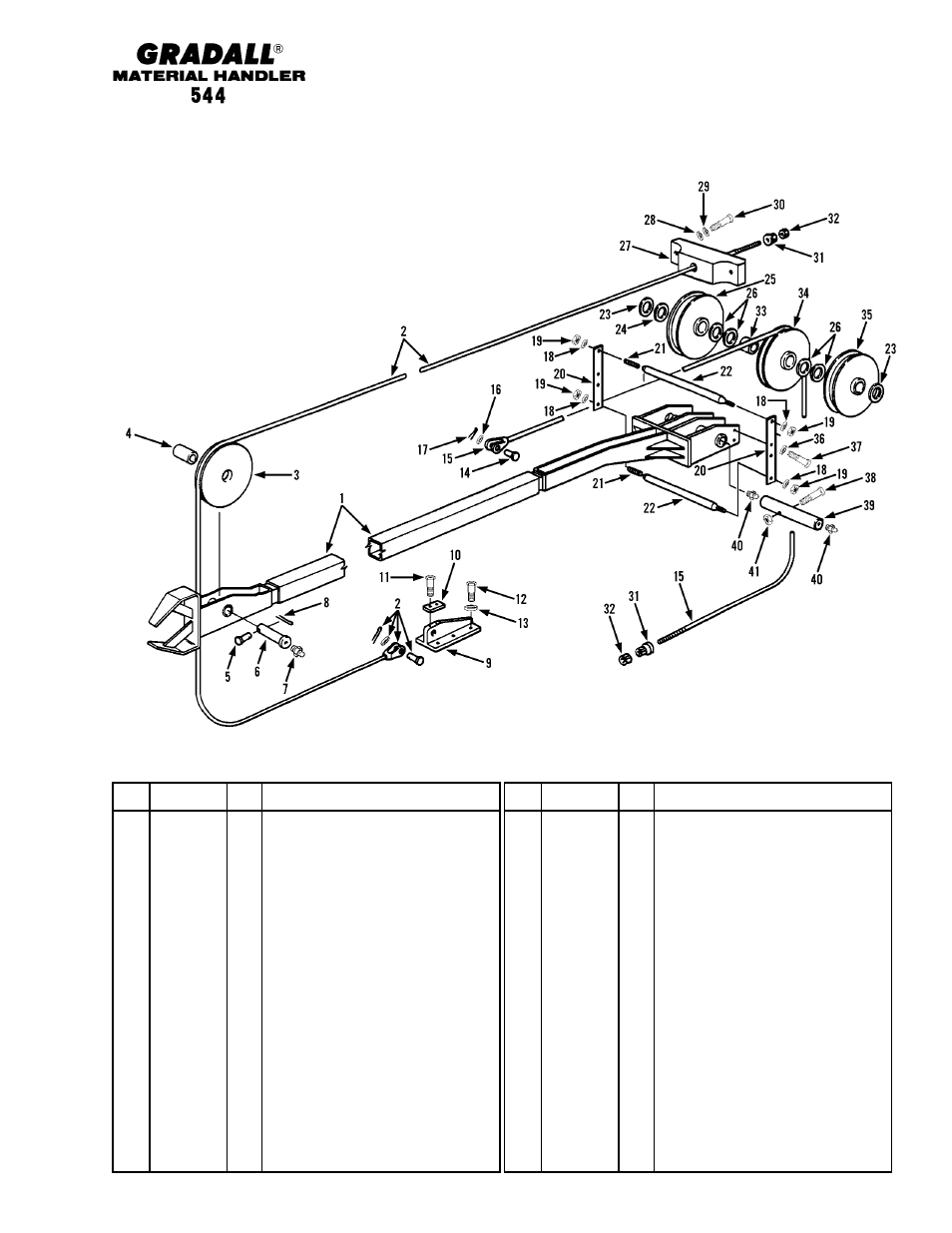

BOOMS
Push Beam & Cables
Starting Serial No. 8655105G
Original Issue 5-86
3-5
Item
Part No.
Qty.
Description Of Part
1
9104-6049
1
PUSH BEAM WELDMENT
2
9104-3055
1
EXTENSION CABLE (includes
mounting hardware)
3
9040-3182
1
NYLON SHEAVE
4
9104-1231
1
BUSHING
5
9002-1608
1
CLEVIS PIN
6
9104-1232
1
SHEAVE PIN
7
8867-1002
1
LUBE FITTING, STRAIGHT, 1/8
8
8863-1310
1
COTTER PIN, 3/32X1
9
9104-6052
1
CABLE ANCHOR
10
9104-3099
1
BEARING PAD
11
8824-1030
2
SOCKET FLAT HD CAPSCREW,
1/4-20X5/8
12
8320-1003
6
HEX HD CAPSCREW
13
7714-1077
6
HARDENED WASHER
14
9104-3062
1
CABLE PIN
15
9104-3047
1
RETRACTION CABLE
16
8856-1013
1
FLAT WASHER, 1-1/4
17
8863-1339
1
COTTER PIN, 3/16X2
18
8855-1011
4
LOCK WASHER, 3/8
19
8850-1006
4
HEX NUT, 3/8-16
20
9104-1010
2
HOSE RETAINER BAR
21
9104-1012
2
HOSE RETAINER STUD
Item
Part No.
Qty.
Description Of Part
22
9104-1011
2
ROLLER
23
9020-3039
2
THRUST WASHER
24
9020-3040
1
THRUST WASHER
25
9104-3101
1
SHEAVE
26
9020-0253
4
THRUST WASHER
27
9104-1013
1
STRONGBACK PLATE
28
8540-1340
2
HARDENED WASHER
29
8855-1013
2
LOCK WASHER, 1/2
30
8820-1071
2
HEX HD CAPSCREW, 1/2-13X2-1/2,
GR5
31
9002-8965
2
FLANGE NUT
32
8850-1116
2
HEX JAM NUT, 1-8
33
9104-1231
1
BUSHING
34
9040-3182
1
CABLE SHEAVE
35
9104-3100
1
SHEAVE
36
8856-1109
4
FLAT WASHER, 3/8
37
8820-1033
4
HEX HD CAPSCREW, 3/8-16X3/4,
GR5
38
8820-1044
1
HEX HD CAPSCREW, 3/8-16X3-1/4,
GR5
39
9104-1008
1
PUSH BEAM PIN
40
8867-1008
2
LUBE FITTING, STRAIGHT, 1/4-28
41
8852-1006
1
HEAVY HEX LOCKNUT, 3/8-16
