Gradall 544 - Manual (Page 91)

Item Part No. Qty. Description Of Part
17 9104-4101 1 MAGNETIC PLUG
18 9104-4282 1 SECONDARY CARRIER ASSY
19 9104-4103 1 PRIMARY CARRIER ASSY
20 9104-4104 1 PRIMARY SUN GEAR
21 9104-4106 1 PLUNGER
22 9104-4107 1 O-RING
23 9104-4105 1 THRUST WASHER
24 9104-4108 1 PIPE PLUG
25 9104-4109 1 COVER
26 9104-4110 12 FLAT WASHER
27 9104-4111 12 HEX HD CAPSCREW
28 9104-4112 1 DISENGAGE COVER
29 9104-4113 2 HEX HD CAPSCREW
NOTE: QUANTITIES SHOWN ARE
FOR ONE WHEEL DRIVE
ASSY ONLY.
Item Part No. Qty. Description Of Part
9104-3277 2 WHEEL DRIVE ASSY, (includes all
items)
1 9104-4276 1 RETAINING RING
2 9104-4277 1 COUPLING
3 9104-4278 1 SPRING
4 9104-4279 1 INPUT SHAFT
5 9104-4099 1 RETAINING RING
6 9104-4280 1 SPINDLE
7 9104-4088 1 SEAL
8 9104-4281 1 OIL SEAL
9 9104-4090 1 OUTER BEARING CONE
10 9104-4091 1 OUTER BEARING CUP
11 9104-4310 1 HUB, (includes items 10, 12 & 13)
12 9104-4311 10 WHEEL BOLT
13 9106-4005 1 INNER BEARING CUP
14 9106-4006 1 INNER BEARING CONE
15 9106-4007 1 THRUST WASHER
16 9104-4100 1 RING GEAR

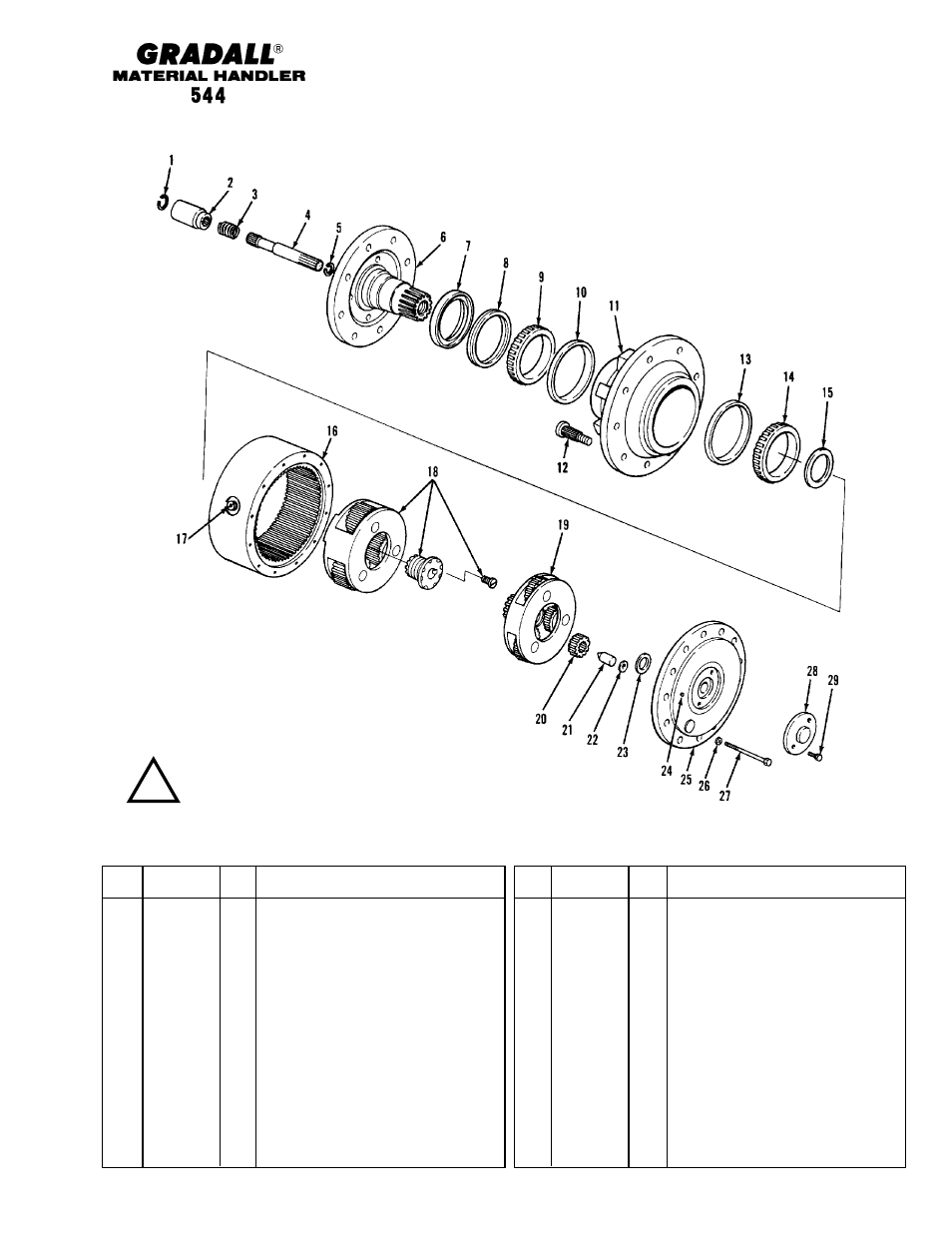

DRIVE TRAIN
(9104-3277) Rear Steering Axle Planetary Hub
Starting Serial No. 8655105G
Original Issue 7-86
Revised 7-30-04
6-17
NOTE: AS OF 4-7-95, THE SPINDLE (ITEM 6)
IS OBSOLETE AND STOCK IS LIMITED.
WHEN STOCK IS DEPLETED, YOU WILL
NEED TO PURCHASE A NEW WHEEL
DRIVE ASSEMBLY, P/N 9104-3489.
DS * Revised illustration & note.
!
