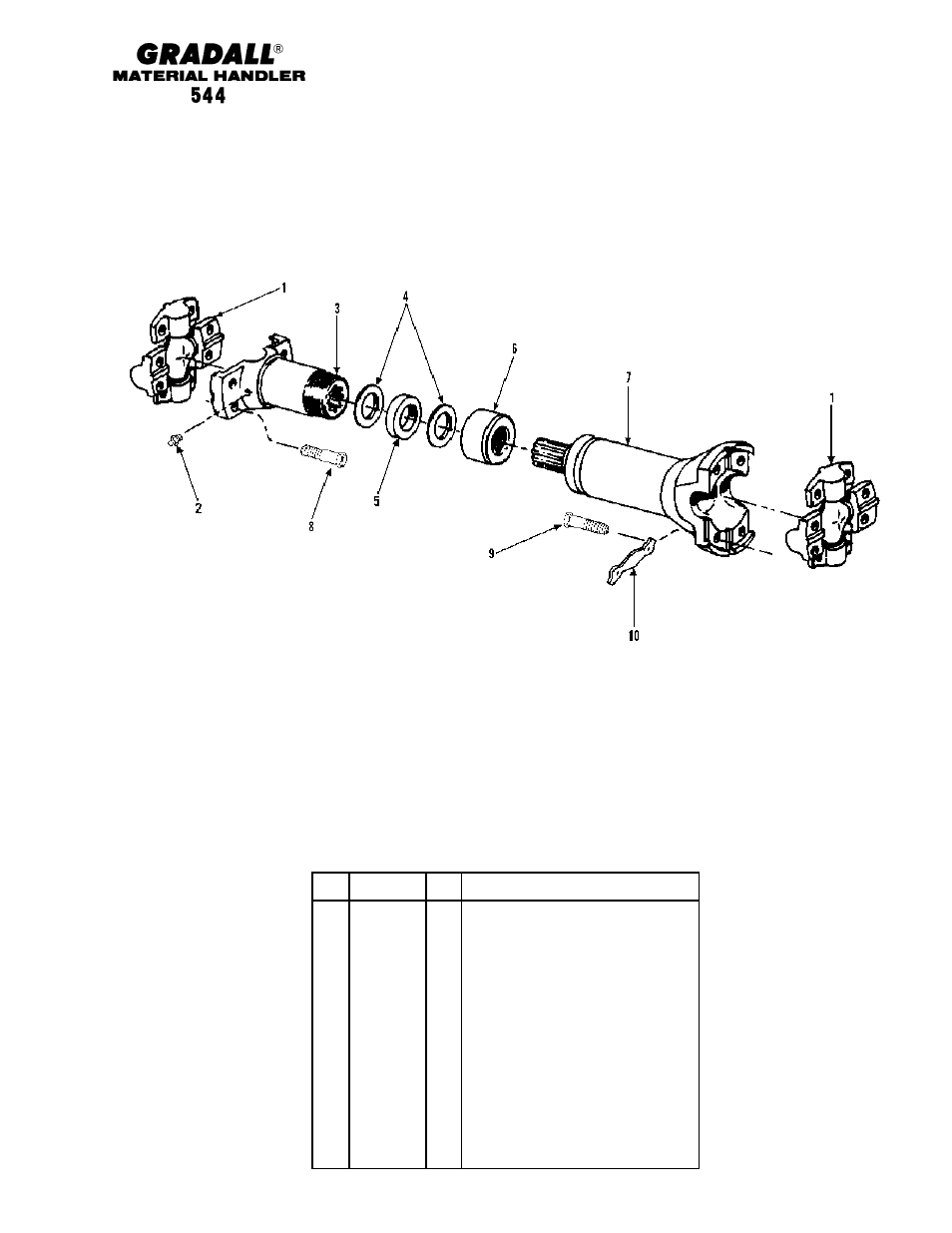

DRIVE TRAIN
Propeller Shaft
Starting Serial No. 8655105G
Original Issue 4-86
Revised 5-19-97
6-11
Item
Part No.
Qty.
Description Of Part
9104-3032
1
DRIVE SHAFT ASSY (includes all
items)
1
9020-1058
2
SPIDER & BEARING ASSY
2
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
3
9104-4008
1
SLIP YOKE ASSY (includes items 4, 5,
6)
4
9020-6545
2
WASHER
5
9020-6546
1
FELT SEAL
6
9020-6544
1
CAP
7
1
TUBE ASSY
8
9104-4009
8
HEX HD CAPSCREW
9
9104-4010
8
HEX HD CAPSCREW
10
9103-1194
8
LOCKSTRAP
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
* Changed part number on item 2.
*
