Gradall 544 User Manual
Page 40

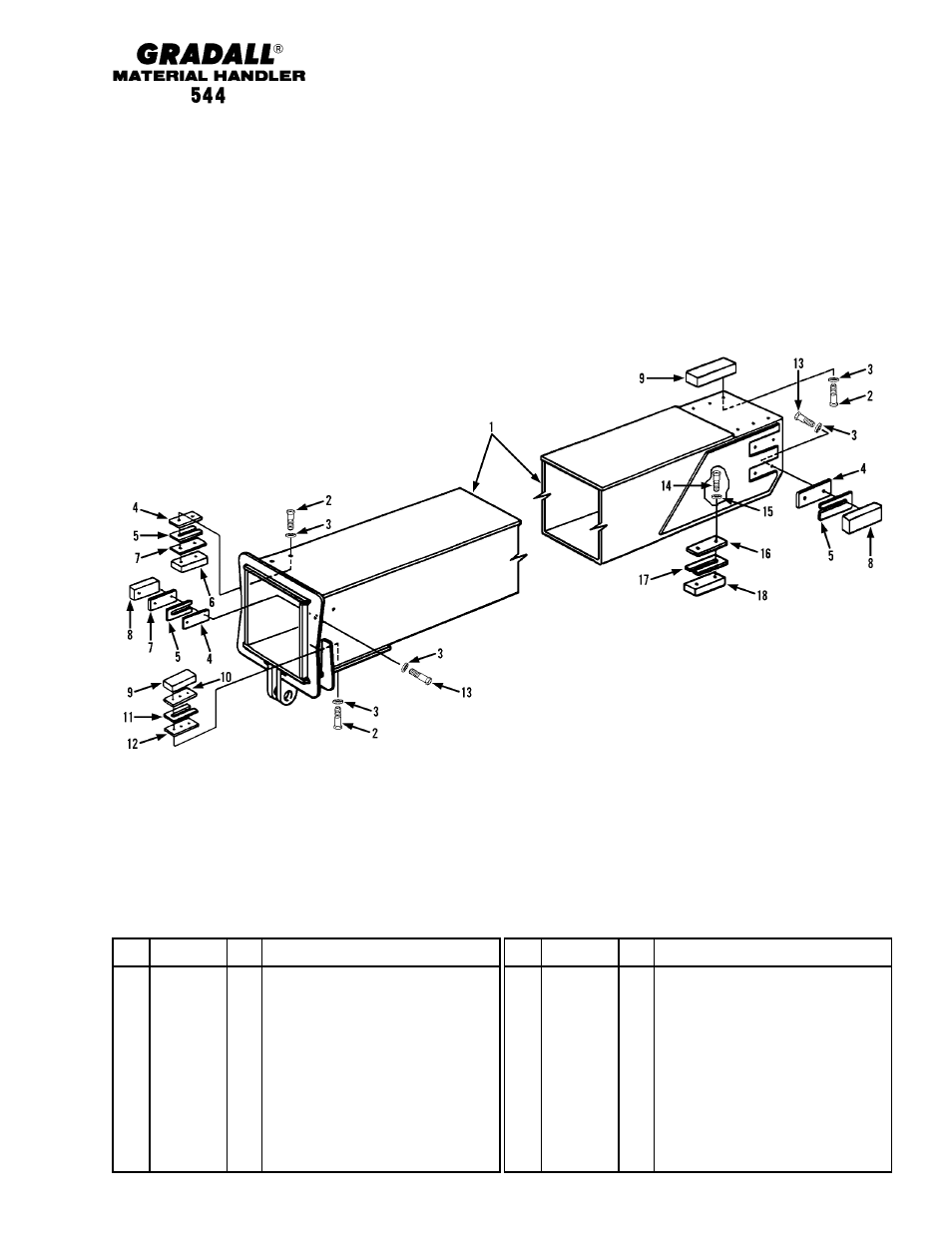

BOOMS
2nd Boom Section
Starting Serial No. 8655105G
Original Issue 5-86
Revised 9-88
3-2
PCN L-8616
Item
Part No.
Qty.
Description Of Part
1
9104-6018
1
SECOND BOOM SECTION
WELDMENT
2
8820-1563
16
HEX HD CAPSCREW, 1/2-20X7/8,
GR5 (lubricate and torque to 68-78 ft.
lbs.)
3
1238-1025
32
HARDENED WASHER
4
9104-1277
12
SPACER
5
9104-1276
12
SHIM
6
9104-3180
2
BEARING PAD
7
9104-1278
10
SPACER
8
9104-3177
8
BEARING PAD
9
9104-3164
4
BEARING PAD
10
9104-1265
2
SPACER
Item
Part No.
Qty.
Description Of Part
11
9104-1006
6
SHIM
12
9104-1007
2
SPACER
13
8820-1562
16
HEX HD CAPSCREW, 1/2-20X3/4,
GR5 (lubricate and torque to 68-78 ft.
lbs.)
14
8820-1535
4
HEX HD CAPSCREW, 3/8-24X1-1/4,
GR5 (lubricate and torque to 30-35 ft.
lbs.)
15
1200-1234
4
HARDENED WASHER
16
9103-1234
2
SHIM
17
9020-7029
6
SHIM
18
9103-3188
2
BEARING PAD
