Hydraulic components tilt cylinder – Gradall 544 User Manual
Page 142

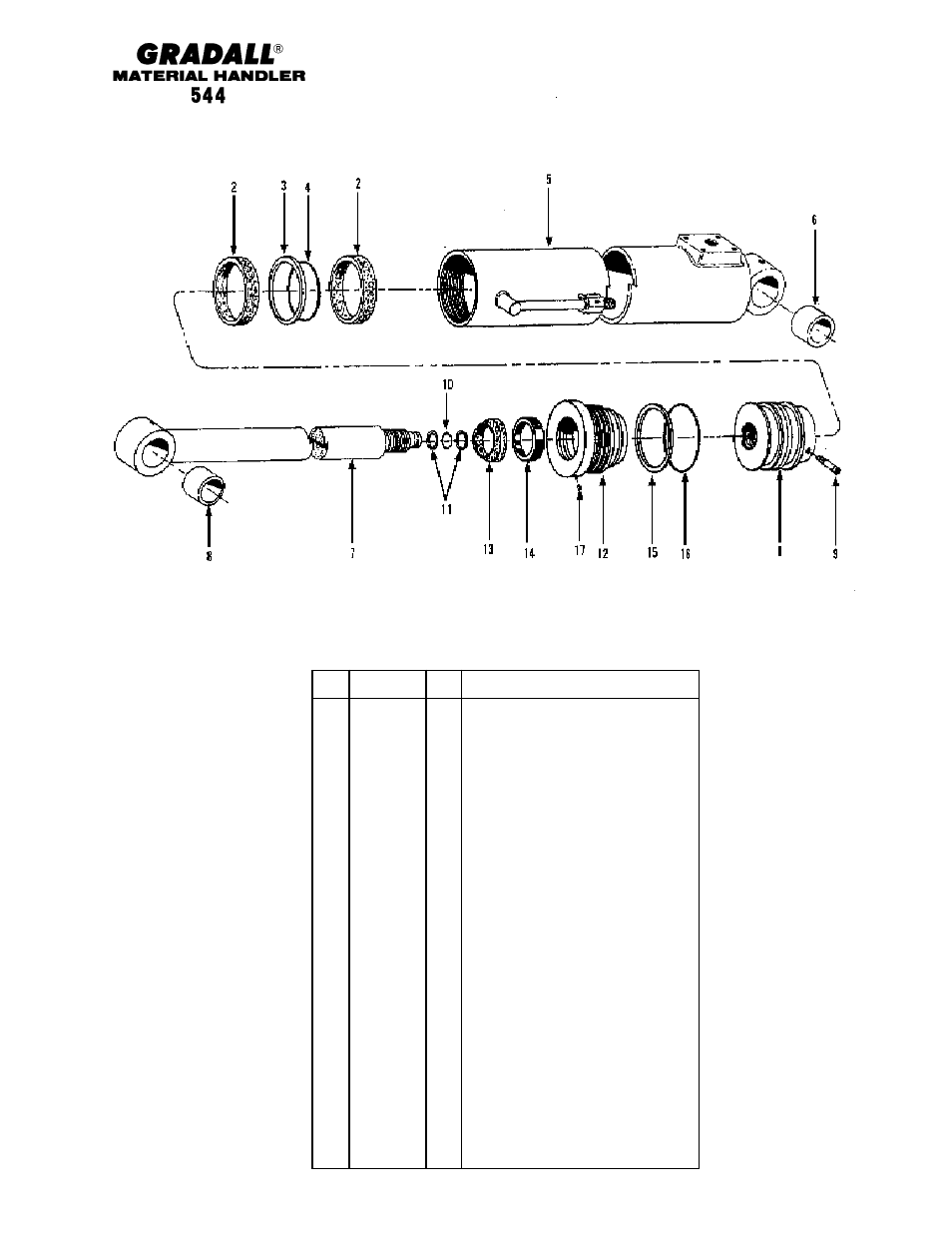

HYDRAULIC COMPONENTS
Tilt Cylinder
Starting Serial No. 8655105G
Original Issue 5-86
10-4
Item
Part No.
Qty.
Description Of Part
9104-3066
1
TILY CYLINDER ASSY (includes all
items)
9104-4014
1
SEAL KIT (includes items 2, 3, 4, 10,
11, 13, 14, 15, 16)
1
9104-4015
1
PISTON ASSY (includes items 2 thru
4; lubricate and torque to 1,450-1,550
ft. lbs.)
2
2
WEAR RING
3
1
PISTON SEAL
4
1
O-RING
5
9104-4039
1
BARREL ASSY (includes item 6)
6
9020-6793
2
BUSHING
7
9104-4040
1
PISTON ROD ASSY (includes item 8)
8
9020-6793
2
BUSHING
9
9104-4040
1
SET SCREW (lubricate and torque to
12-14 ft. lbs.)
10
1
O-RING
11
2
BACK-UP RING
12
9104-4018
1
ROD BEARING ASSY (includes items
13 thru 16; lubricate and torque to
250-300 ft. lbs.)
13
9002-2280
1
WIPER
14
1
ROD SEAL
15
1
BACK-UP RING
16
1
O-RING
17
9104-4016
1
HEX HD SELF TAPPING SCREW
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
