Gradall 544 User Manual
Page 88
KG
6-15
* Added item 41.
Item
Part No.
Qty.
Description Of Part
21
9104-4186
1
SPACER
22
9104-4187
1
HUB SEAL
23
9104-4188
1
HUB SEAL RUNNER
24
9104-4189
10
WHEEL STUD
25
9104-3146
10
SWIVEL NUT
26
9104-4191
1
SNAP RING
27
9104-4192
1
THRUST WASHER
28
9104-4193
1
SPRING
29
9104-4194
1
SERVICE BRAKE PISTON
30
9104-4195
1
SNAP RING
31
9104-4196
1
PARK BRAKE SEAL RING
32
9104-4197
1
PARK BRAKE PISTON
33
9104-4335
1
SEALING KIT
34
9104-4199
1
SPRING WASHER KIT
35
9104-4200
2
BLEEDER SCREW
36
9104-4201
1
SPINDLE ASSY
37
9104-4202
9
SOCKET HD CAPSCREW
38
9104-4203
1
O-RING
39
9104-4204
1
AXLE SHAFT
40
9104-4298
2
BLEEDER SCREW CAP
41
9103-4397
1
PIN (holds brake discs in place)
NOTE: QUANTITIES SHOWN ARE
FOR ONE BRAKE WHEEL END
ASSEMBLY ONLY.
Item
Part No.
Qty.
Description Of Part
9104-4165
1
BRAKE WHEEL END ASSY (includes
all items)
1
9104-4166
1
COVER ASSY (includes items 2 thru 6)
2
9104-4167
4
HEX HD CAPSCREW
3
9104-4168
1
O-RING KIT
4
9104-4169
4
HEX HD CAPSCREW
5
9104-4170
4
SECTOR PLATE
6
9104-4171
1
BEARING ASSY
7
9104-4460
1
PLANETARY CARRIER ASSY
8
9104-4173
4
SPACER
9
9104-4174
1
MID-SHAFT
10
9104-4175
1
ROTATING BRAKE DISC STOP
11
9104-4176
1
DISC HUB
12
9104-4177
1
BRAKE DISC ASSY
13
9104-4178
10
SOCKET HEAD CAPSCREW
14
9104-4179
1
FIXED BRAKE DISC STOP
15
9104-4180
1
RING GEAR & CARRIER ASSY
16
9104-4181
1
ADJUSTING SHIM KIT
17
9104-4182
1
WHEEL HUB ASSY (includes items 18
thru 22)
18
9104-4183
2
BEARING ASSY
19
9104-4184
1
PLUG
20
9104-4185
1
SEALING WASHER
*
DRIVE TRAIN

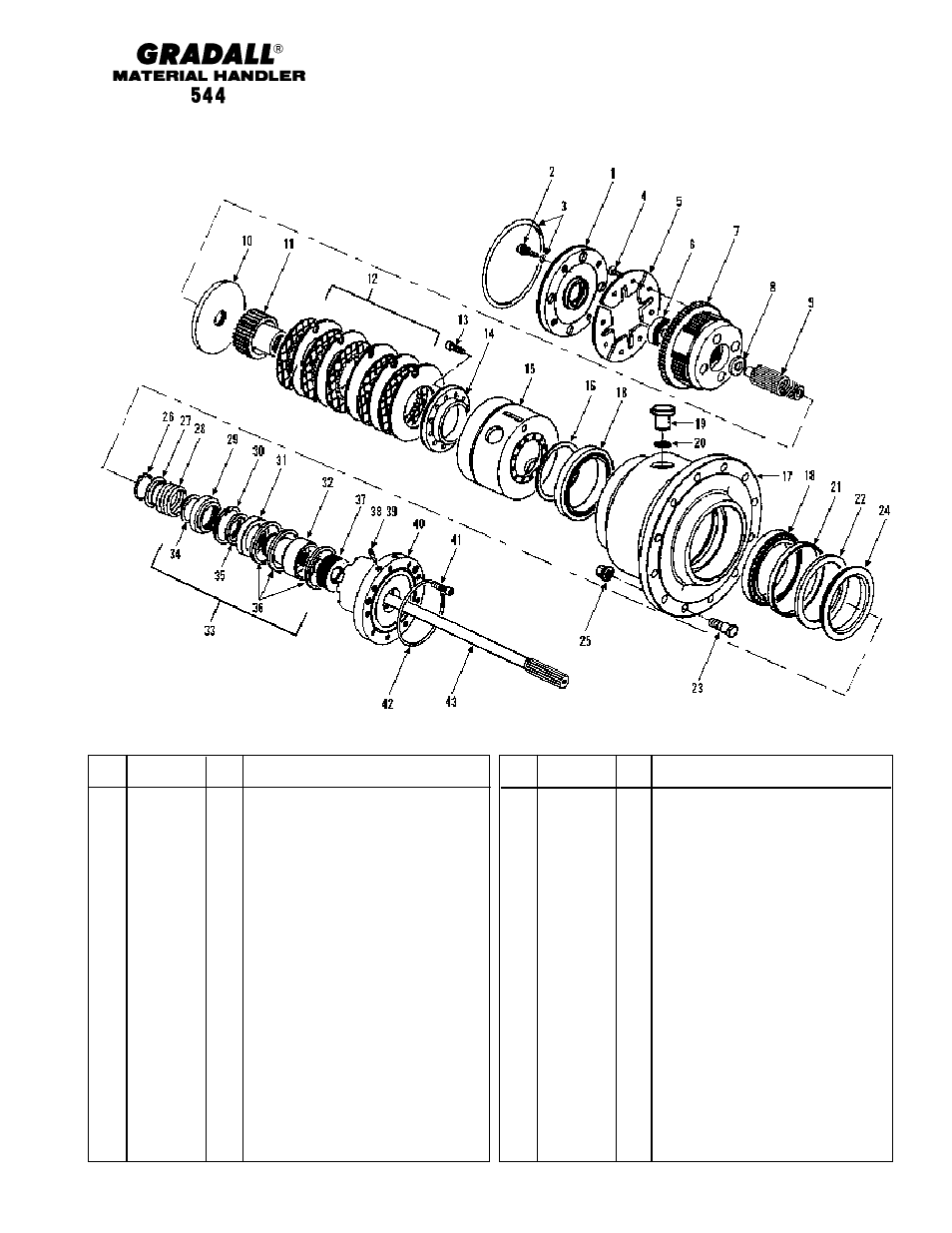

(9104-4165) Front Axle Shaft & Planetary Wheel End
Starting Serial No. 8655105G
Original Issue 8-86
Revised 4-30-96
