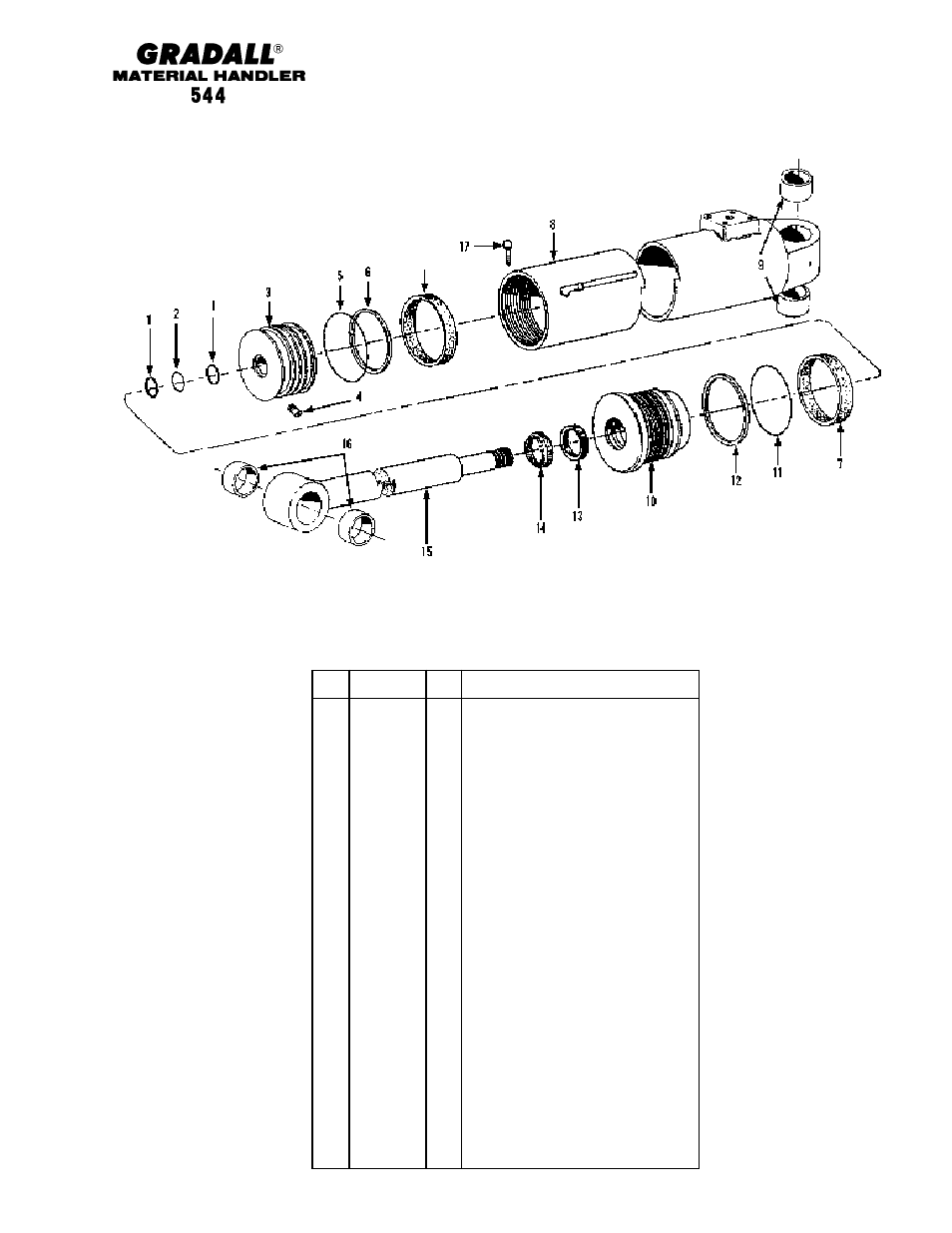

HYDRAULIC COMPONENTS
Outrigger Cylinder
Starting Serial No. 8655105G
Original Issue 5-86
10-9
Item
Part No.
Qty.
Description Of Part
9103-3127
2
OUTRIGGER CYLINDER ASSY
(includes all items)
9104-4065
1
SEAL KIT (includes items 1, 2, 5, 6, 7,
11, 12, 13, 14)
1
2
BACK-UP RING
2
1
O-RING
3
9104-4066
1
PISTON ASSY (includes items 5 thru
7; lubricate and torque to 1,450-1,550
ft. lbs.)
4
9104-4067
1
SET SCREW (lubricate and torque to
12-14 ft. lbs.)
5
1
O-RING
6
1
PISTON SEAL
7
2
WEAR RING
8
9104-4068
1
BARREL ASSY (includes item 9)
9
9104-4069
2
BUSHING
10
9104-4070
1
ROD BEARING ASSY (includes items
11 thru 14; lubricate and torque to
250-300 ft. lbs.)
11
1
O-RING
12
1
BACK-UP RING
13
1
ROD SEAL
14
9002-2280
1
WIPER
15
9104-4071
1
PISTON ROD ASSY (includes item 16)
16
9104-4072
2
BUSHING
17
9104-4073
1
HEX HD SELF TAPPING SCREW
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
