Page 205
13-19
PCN 960060, 970971 & 970136-KG
OPTIONAL EQUIPMENT

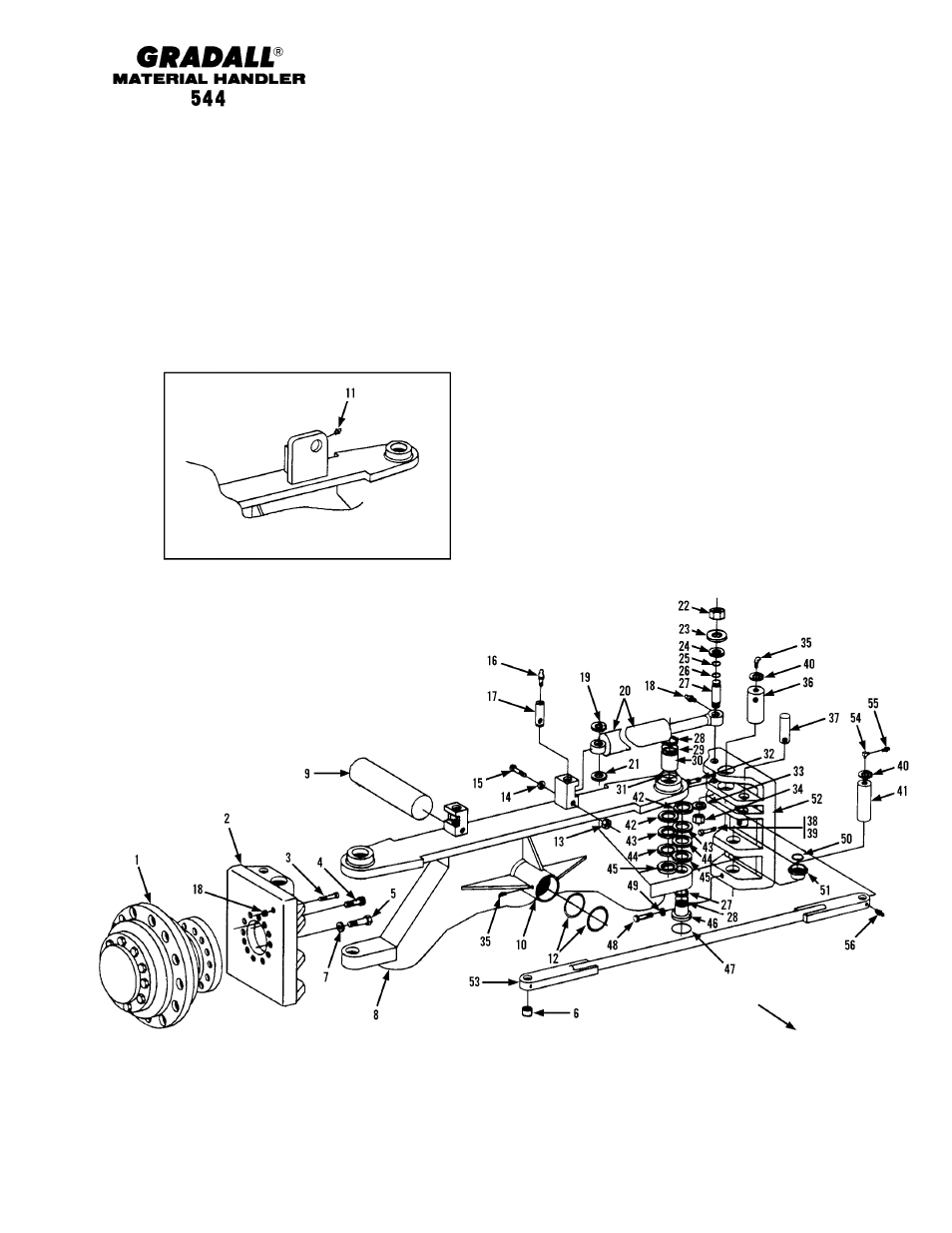

(9104-5129) Steer Axle Advantage Kit
FOR SERVICE ONLY
Original Issue 3-96
Revised 2-27-97
NOTE #2: CYLINDER BASE END MUST BE FREE TO ROTATE. SHIM STEER CYLINDER
BASE END AS REQUIRED TO MAINTAIN A TOTAL MAX. GAP OF 1/16".
NOTE #3: SHIM BOTTOM KNUCKLES AS REQUIRED TO MAINTAIN NO MORE THAN
1/32" MOVEMENT. SHIM TOP KNUCKLES AS REQUIRED TO MAINTAIN NO MORE
THAN 1/16" GAP. MUST HAVE A MINIMUM OF ONE SHIM.
TYPICAL ON BOTH
SIDES
VEIW SHOWING STABILIZER EARS IN PLACE.
BELOW THEY WERE REMOVED FOR CLARITY.
FRONT OF MACHINE
NOTE #1: CUSTOMER TO USE EXISTING WHEEL HUBS & HARDWARE, DRIVE
MOTORS, DRIVE MOTOR TUBE ASSEMBLIES, AND DRAIN LINE HOSES OR ORDER
SEPARATELY IF REPLACEMENT IS REQUIRED
*
* Changed quantities on items 4, 11, & 20, changed part numbers on items 32, 41, 53
& 56. Added to note # 3.
