Engine & attaching parts fuel tank & lines – Gradall 544 User Manual
Page 54

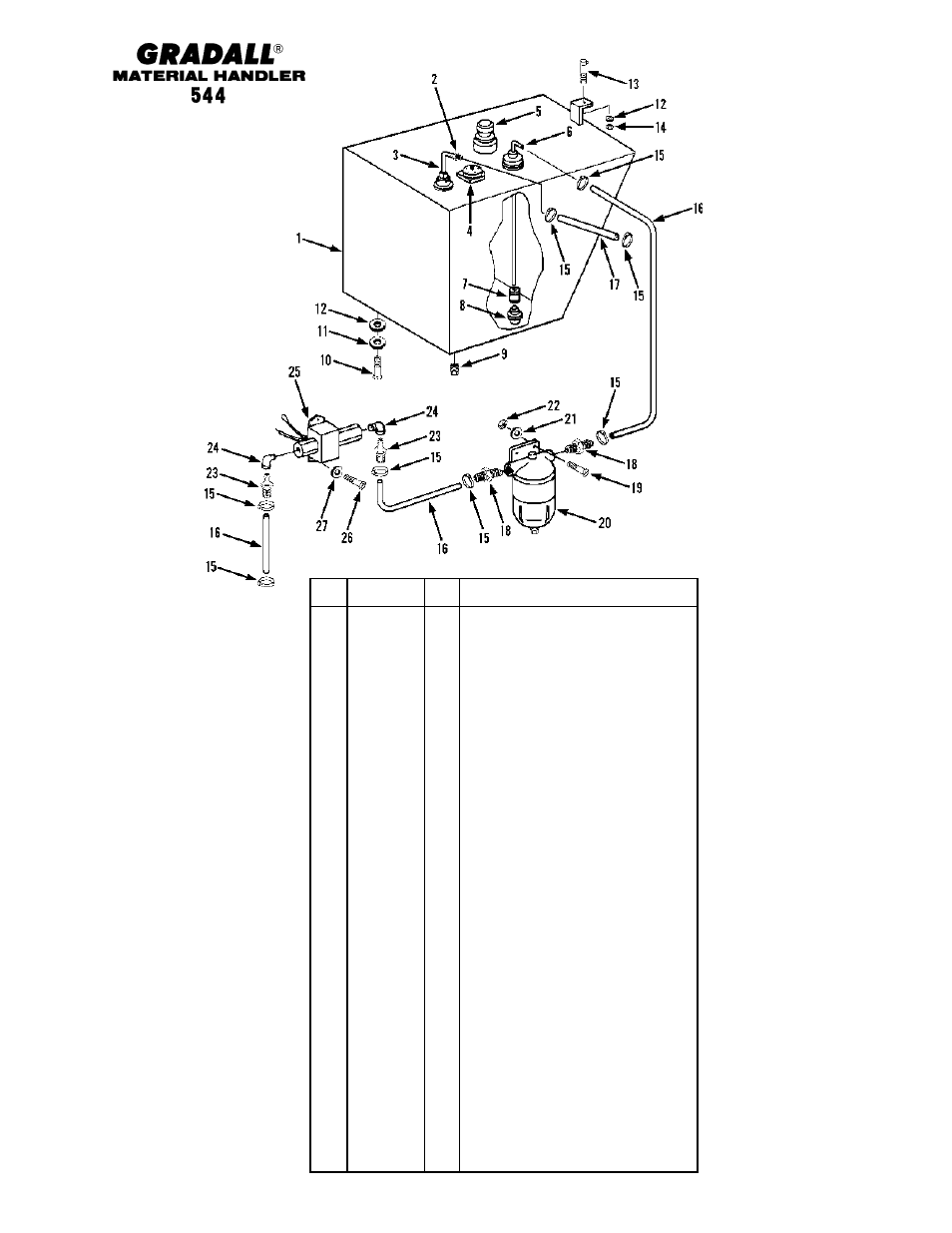

ENGINE & ATTACHING PARTS
Fuel Tank & Lines
Starting Serial No. 8655105G
Original Issue 5-86
Revised 11-86
5-4
L-7949
Item
Part No.
Qty.
Description Of Part
9103-5093
1
FUEL TANK ASSY (includes items 1
thru 9)
1
9103-6047
1
FUEL TANK WELDMENT
2
9002-8674
1
PUSH LOCK FITTING
3
9040-2827
1
STANDPIPE WELDMENT
4
9040-0654
1
FUEL LEVEL SENDER (includes
gasket and mounting hardware)
5
9100-3186
1
FILLER-BREATHER (includes gasket
and mounting hardware)
9103-4224
AR
RESERVOIR CAP (with locking tab)
6
9105-6106
1
STANDPIPE WELDMENT
7
8871-1212
1
PIPE COUPLING, 1/4
8
9020-5223
1
SUCTION SCREEN
9
8871-1255
1
SQUARE HD PIPE PLUG, 1"
10
8820-1066
2
HEX HD CAPSCREW, 1/2-13X1-1/4,
GR5
11
8855-1013
2
LOCK WASHER, 1/2
12
8856-1111
4
FLAT WASHER, 1/2
13
8820-1070
1
HEX HD CAPSCREW, 1/2-13X2-1/4,
GR5
14
8852-1208
1
HEX LOCKNUT, 1/2-13
15
8668-3106
6
HOSE CLAMP
16
AR
HOSE, 5/16 I.D.
17
AR
HOSE, 1/4 I.D.
18
9103-3131
2
BARB CONNECTOR
19
8820-1021
2
HEX HD CAPSCREW, 5/16-18X1-1/4,
GR5
20
9103-3054
1
WATER SEPERATOR
21
8856-1108
2
FLAT WASHER, 5/16
22
8852-1305
2
HEX LOCKNUT, 5/16-18
23
8874-1801
2
HOSE NIPPLE
24
8871-2081
2
STREET ELBOW, 3/8
25
9103-3270
1
PRIMER PUMP
26
8820-1001
2
HEX HD CAPSCREW, 1/4-20X1/2,
GR5
27
8855-1009
2
LOCKWASHER, 1/4
