CHASSIS & ATTACHING PARTS

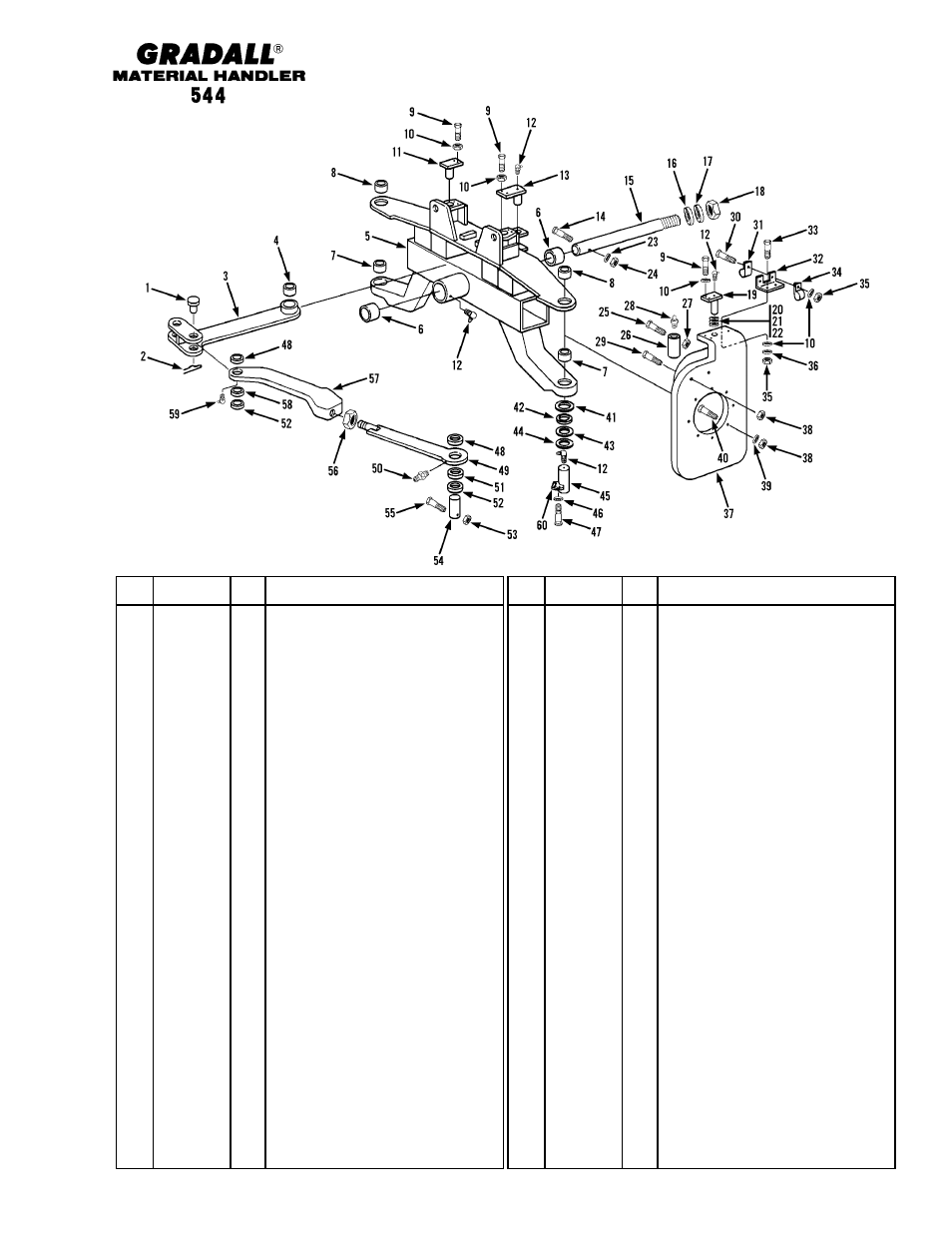

Rear Steering Axle & Attaching Parts
Starting Serial No. 8655105G
Original Issue 4-86
Revised 4-23-97
2-5
L-8721, 8732
* Added item 60. Changed part numbers on items 7, 8, 15, 45, 47, 51, and 58. Changed quantities on items 46 and 47.
Item
Part No.
Qty.
Description Of Part
1
9104-3152
2
CLEVIS PIN
2
8863-1337
2
COTTER PIN, 3/16X1-1/2
3
9060-2826
1
IDLER ARM ASSY (includes item 4)
4
9020-5340
1
BUSHING
5
9104-6029
1
AXLE FRAME ASSY (includes items 6,
7, 8)
6
9103-1092
2
BUSHING
7
9103-1391
2
FRAME LOWER BUSHING
8
9103-1374
2
FRAME UPPER BUSHING
9
8320-1024
10
HEX HD CAPSCREW
10
9002-7470
20
HARDENED WASHER
11
9020-7419
2
STEERING CYLINDER BASE PIN
12
8867-1022
6
LUBE FITTING, 90 DEGREES, 1/8
13
9020-6895
1
IDLER ARM MOUNT PIN
14
8679-1002
1
HEX HD CAPSCREW
15
9103-1440
1
REAR AXLE PIN
16
9020-6846
AR
SHIM (1/8" thick)
17
9103-1009
AR
SHIM (1/4" thick)
18
9002-2234
1
HEX LOCKNUT
19
9103-6043
2
PIN WELDMENT
20
9020-3039
AR
SHIM (1/16" thick)
21
9020-3040
4
SHIM (1/8" thick)
22
9020-1918
AR
THRUST BEARING
23
8856-1119
1
FLAT WASHER, 1-1/4
24
8510-1098
1
HEX NUT
25
8820-1078
2
HEX HD CAPSCREW, 1/2-13X4-1/2,
GR5
26
9020-6897
2
UPPER STEERING KNUCKLE PIN
27
8852-1208
2
HEX LOCKNUT, 1/2-13
28
8867-1001
4
LUBE FITTING, STRAIGHT, 1/8
29
8821-2260
2
SOCKET HD CAPSCREW, 5/8-11X2-
1/2, GR8
30
8820-1036
4
HEX HD CAPSCREW, 3/8-16X1-1/4,
GR5
31
8594-1017
2
HOSE CLAMP
32
9103-1239
2
BRACKET
Item
Part No.
Qty.
Description Of Part
33
8820-1037
4
HEX HD CAPSCREW, 3/8-16X1-1/2,
GR5
34
9020-2343
4
TUBE CLAMP
35
8850-1006
8
HEX NUT, 3/8-16
36
8855-1011
4
LOCK WASHER, 3/8
37
9103-0003
1
STEERING KNUCKLE, L.H.
9103-0004
1
STEERING KNUCKLE, R.H.
38
8850-1110
18
HEAVY HEX JAM NUT, 5/8-11
39
9002-7472
16
HARDENED WASHER
40
8320-1102
16
HEX HD CAPSCREW, 5/8-11X2-1/2, GR8
41
9020-7484
AR
FELT (1/2" thick)
9020-7485
AR
FELT (1/4" thick)
42
9020-6542
2
THRUST BEARING
43
9020-0253
AR
THRUST WASHER
44
9020-3039
AR
SHIM (1/16" thick)
9020-3040
AR
SHIM (1/8" thick)
45
9103-1344
2
LOWER STEERING KNUCKLE PIN
46
8540-1340
6
HARDENED WASHER
47
8320-1129
6
HEX HD CAPSCREW, SELF-
LOCKING (Nylok), 1/2-13X1-1/4, GR8
48
9020-5653
AR
SHIM
49
9104-6024
2
TIE ROD BAR ASSY (includes items
50, 51)
50
8867-1001
1
LUBE FITTING, STRAIGHT, 1/8
51
9103-1397
1
BUSHING
52
9020-3139
AR
SHIM
53
8852-1306
2
HEX LOCKNUT, 3/8-16
54
9020-6896
2
PIN
55
8820-1041
2
HEX HD CAPSCREW, 3/8-16X2-1/2,
GR5
56
8850-1420
2
HEX JAM NUT, 1-1/4X12
57
9104-5008
2
TIE ROD ARM ASSY (includes items
58, 59)
58
9104-1509
1
BUSHING
59
8867-1022
1
LUBE FITTING, 90 DEGREES, 1/8
60
9103-1345
2
KEY PLATE
