Gradall 544 - Manual (Page 140)

HYDRAULIC COMPONENTS

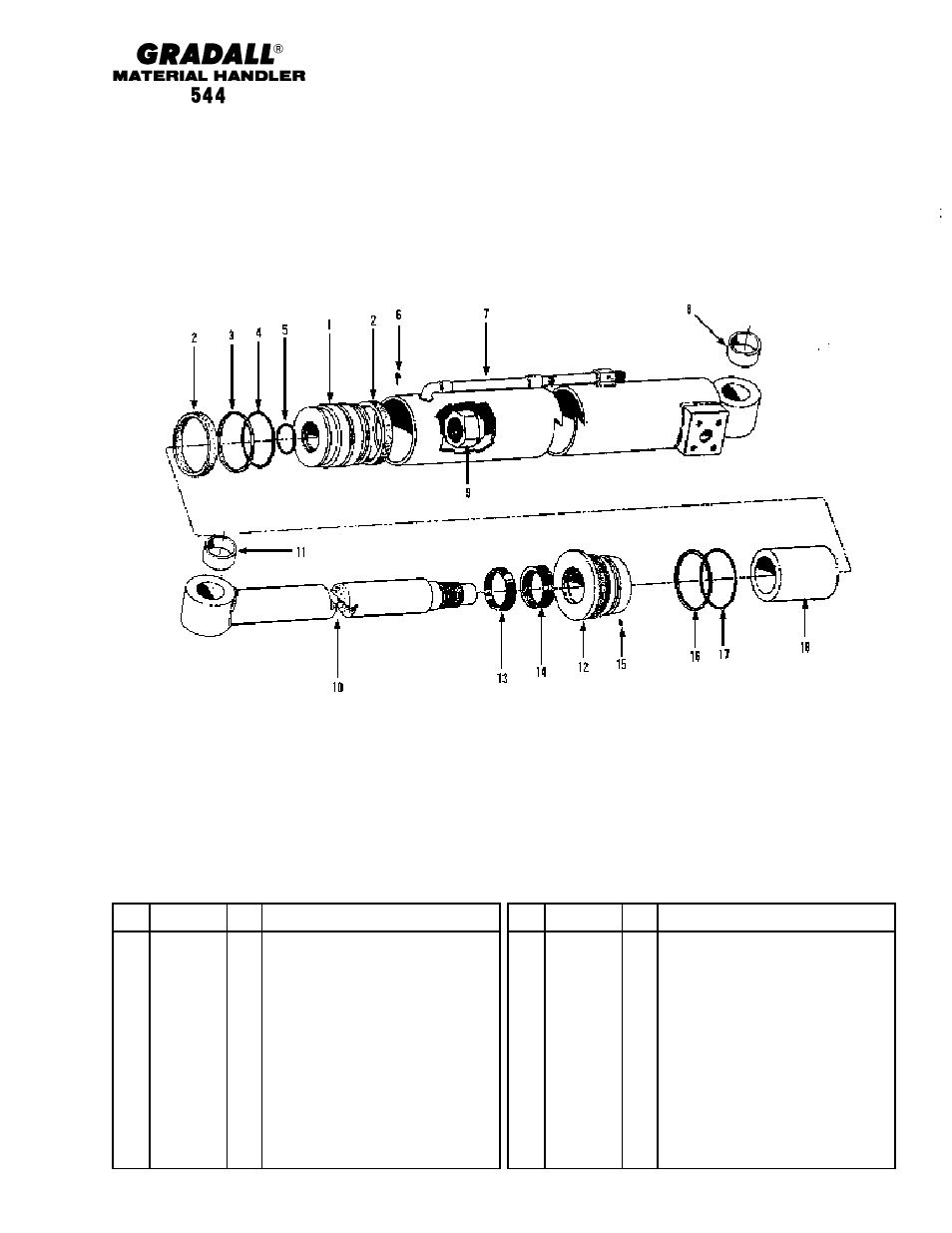

Crowd Cylinder
Starting Serial No. 8655105G
Original Issue 5-86
Revised 7-88
10-2
Item Part No. Qty. Description Of Part
9104-3058 1 CROWD CYLINDER ASSY (includes
all items)
9020-8023 1 SEAL KIT (includes items 2, 3, 4, 5,
13, 14, 15, 16, 17)
1 9104-4022 1 PISTON ASSY (includes items 2, 3, 4)
2 2 WEAR RING
3 1 PISTON SEAL
4 1 O-RING
5 1 O-RING
6 9104-4016 1 HEX HD SELF TAPPING SCREW
7 9104-4023 1 BARREL ASSY (includes item 8)
8 9104-4024 1 BUSHING
9 9104-4025 1 LOCKNUT (lubricate and torque to
600-650 ft. lbs.)
10 9104-4026 1 PISTON ROD ASSY (includes item 11)
Item Part No. Qty. Description Of Part
11 9104-4024 1 BUSHING
12 9104-4027 1 ROD BEARING ASSY (includes items
13 thru 16; lubricate and torque to 250-
300 ft. lbs.)
13 1 WIPER
14 1 ROD SEAL
15 1 NYLON PLUG
16 1 BACK UP RING
17 1 O-RING
18 9104-4028 1 STROKE LIMITER
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
