10-23
Item Part No. Qty. Description Of Part
9103-3122 1 PILOT PUMP ASSY (includes all
items)
9103-4019 1 SEAL KIT (includes items 7, 12, 13,
16, 17)
1 8820-1038 4 HEX HD CAPSCREW, 3/8-16X1-3/4,
GR5 (lubricate and torque to 34-38 ft.
lbs.)
2 9103-4058 4 WASHER
3 9103-4059 1 PIPE PLUG
4 9103-4060 1 REAR COVER ASSY (includes item 5)
5 9103-4061 2 SLEEVE BEARING
6 9103-4062 2 DOWEL PIN
7 1 SQUARE CUT RING
8 9103-4063 1 THRUST PLATE (install with bronze
side facing gear)
Item Part No. Qty. Description Of Part
9 9103-4064 1 DRIVE GEAR
10 9103-4065 1 DRIVEN GEAR
11 9103-4066 1 WEAR PLATE
12 1 LOADING SEAL SPACER
13 1 LOADING SEAL
14 9103-4061 2 SLEEVE BEARING
15 9103-4067 1 BODY ASSY (includes item 14)
16 1 SHAFT SEAL
17 1 WOODRUFF KEY
18 9103-4068 1 DRIVE COUPLING
19 9103-4069 1 EXTERNAL RETAINING RING
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.

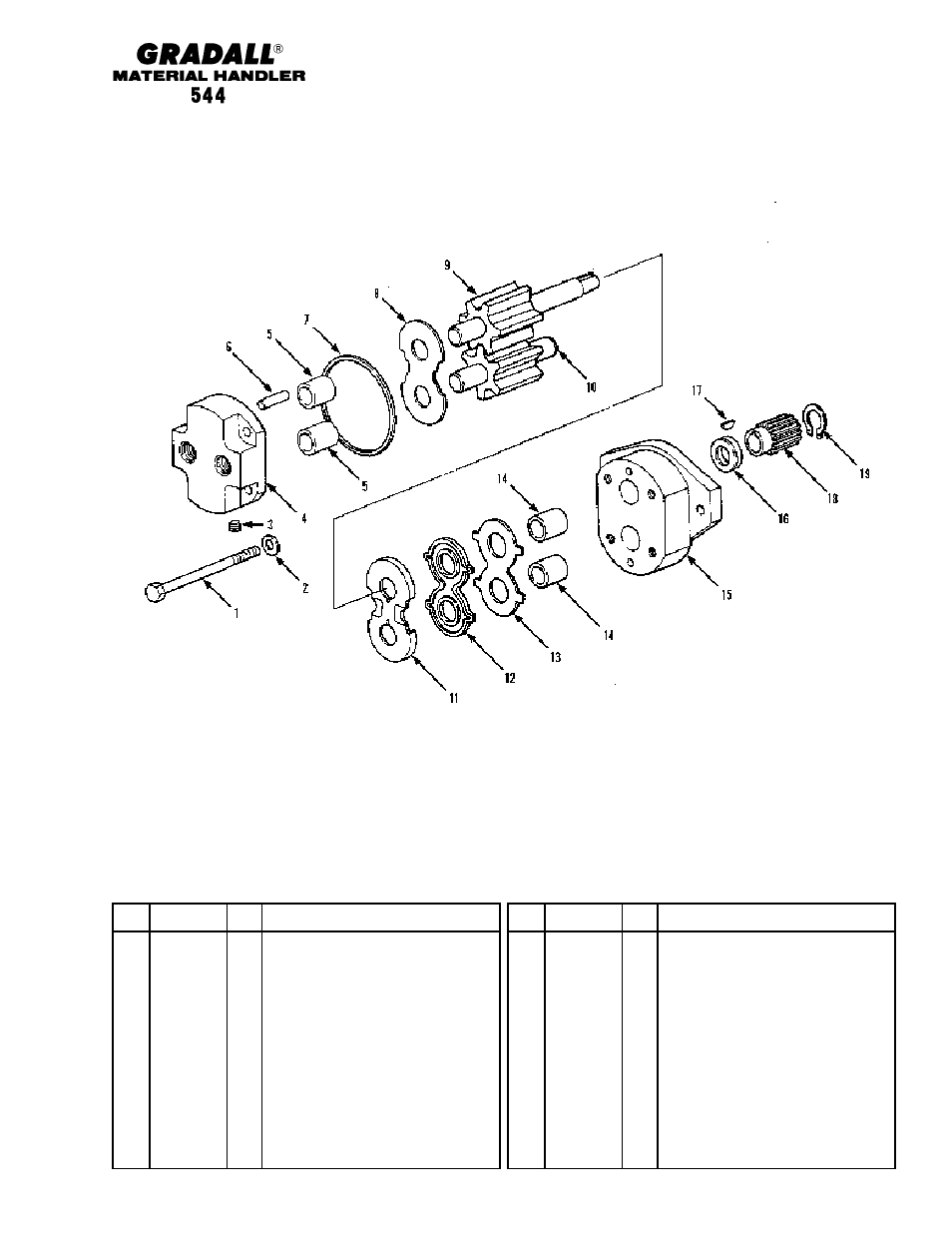

HYDRAULIC COMPONENTS
Pilot Pump
Starting Serial No. 8655105G
Original Issue 6-86
