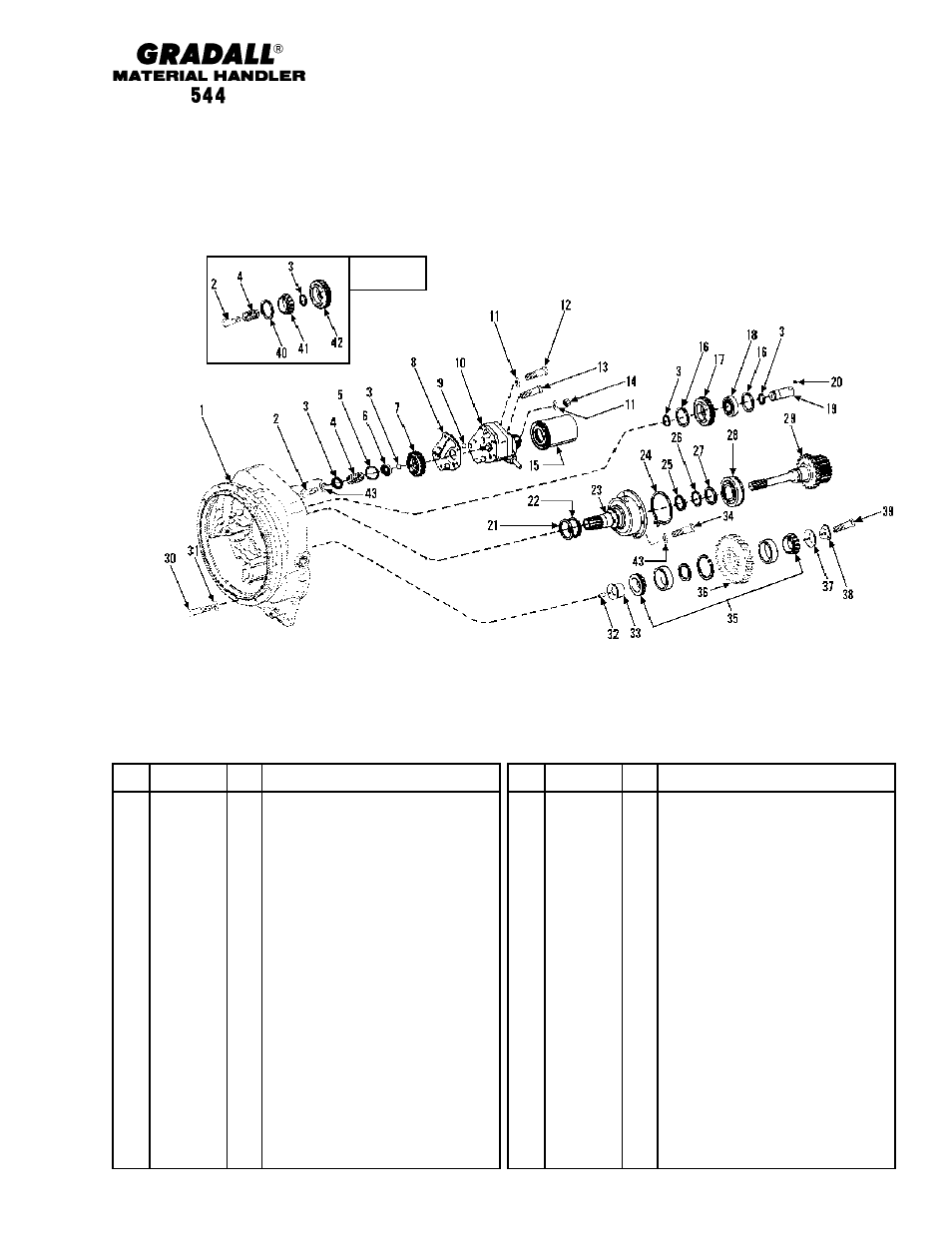

DRIVE TRAIN
Transmission Drive Gearing
Starting Serial No. 8655105G
Original Issue 5-86
Revised 2-93
6-5
Item
Part No.
Qty.
Description Of Part
1
Ref
CONVERTER HOUSING (see page
6-4 for details)
2
8820-1036
AR
HEX HD CAPSCREW, 3/8-16X1-1/4,
GR5
3
9020-4733
AR
BEARING LOCATING RING
4
9020-4734
AR
PUMP DRIVE BEARING SUPPORT
5
9020-4735
1
BEARING RETAINING RING
6
9020-4793
1
PUMP DRIVE GEAR BEARING
7
9020-4737
1
PUMP DRIVE GEAR
8
9020-4730
1
GASKET
9
7710-4048
1
O-RING
10
9020-4731
1
CHARGING PUMP ASSY
9103-4331
1
CHARGE PUMP SEAL KIT
11
7710-4085
3
LOCKWASHER
12
9002-8641
1
HEX HD CAPSCREW
13
8820-1062
2
HEX HD CAPSCREW, 7/16-14X4,
GR5
14
7710-4204
2
HEX NUT
15
9020-4732
1
FILTER
16
7710-4181
2
BEARING RETAINING RING
17
9020-4740
1
IDLER GEAR
18
9020-4741
1
IDLER STUB SHAFT BEARING
19
9020-4738
1
IDLER GEAR SHAFT
20
9020-5047
1
LOCK BALL
Item
Part No.
Qty.
Description Of Part
21
9020-6377
1
PISTON RING
22
7710-4016
1
PISTON RING EXPANDER SPRING
23
9020-6376
1
STATOR SUPPORT
24
9020-4749
1
SNAP RING
25
9020-4748
1
PISTON RING
26
7710-4164
1
BEARING RETAINING RING
27
7710-4197
1
BEARING LOCATING WASHER
28
9104-4053
1
TURBINE SHAFT BEARING
29
9104-4054
1
HUB ASSY
30
7710-4250
3
HEX HD CAPSCREW
31
7710-4085
3
LOCKWASHER
32
7710-4253
1
IDLER SHAFT PIN
33
7710-4254
1
REVERSE IDLER SHAFT
34
8820-1035
6
HEX HD CAPSCREW, 3/8-16X1, GR5
35
7710-4255
1
BEARING ASSY
36
9020-6382
1
REVERSE IDLER GEAR
37
7710-4257
1
BEARING RETAINING PLATE
38
7710-4258
1
LOCK PLATE
39
9020-6384
3
HEX HD CAPSCREW
40
9020-4787
1
BEARING RETAINING RING
41
9020-4788
1
AUXILIARY PUMP GEAR BEARING
42
9020-4790
1
AUXILIARY PUMP DRIVE GEAR
43
8855-1011
AR
LOCKWASHER, 3/8
USED WITH
AUX PUMP
