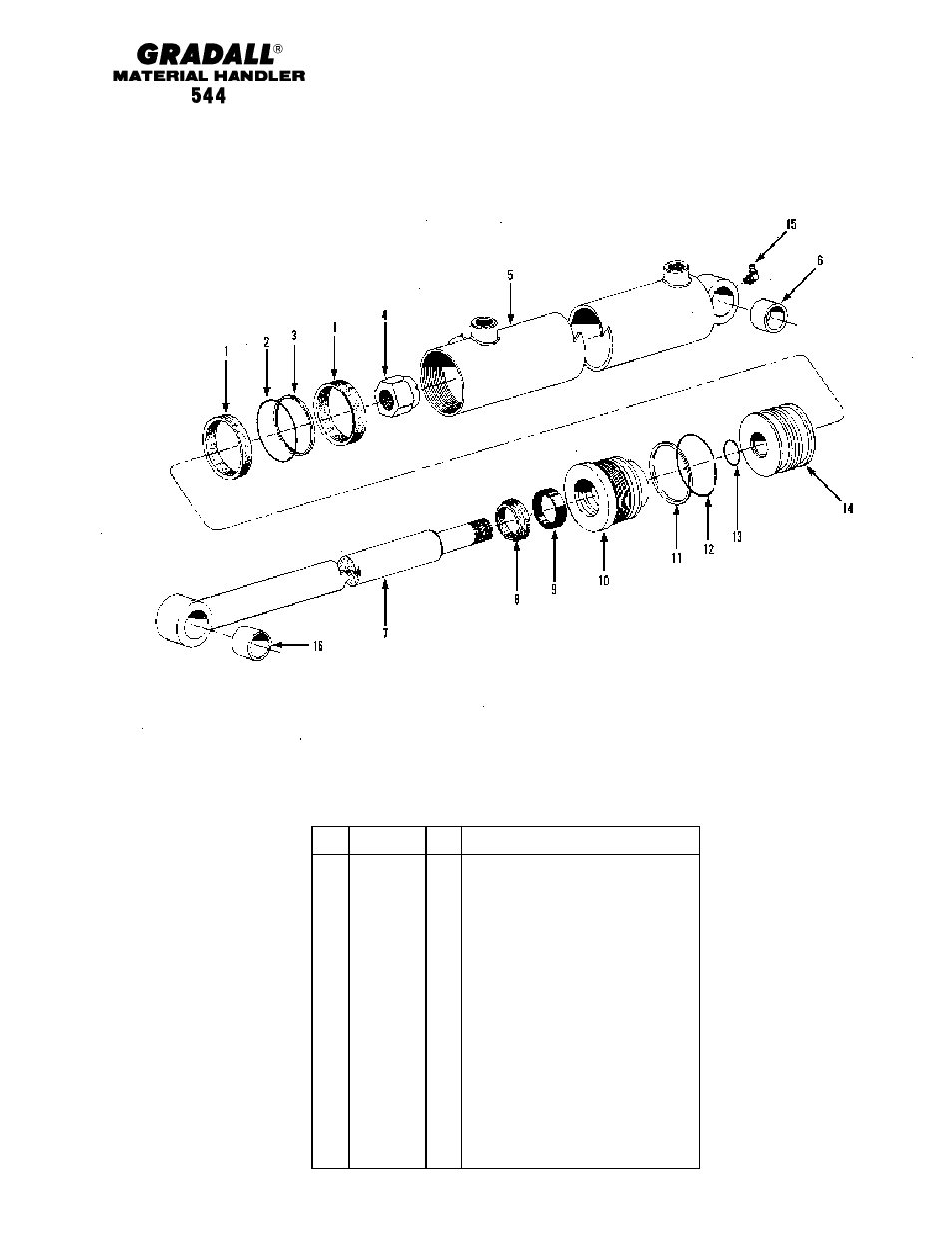

HYDRAULIC COMPONENTS
Steering Cylinder
Starting Serial No. 8655105G
Original Issue 5-86
Revised 12-88
10-7
Item
Part No.
Qty.
Description Of Part
9080-1313
2
STEERING CYLINDER ASSY
(includes all items)
9020-2551
1
SEAL KIT (includes items 1, 2, 3, 8, 9,
11, 12, 13)
1
9002-2257
2
WEAR RING
2
9002-3145
1
O-RING
3
9002-2237
1
PISTON SEAL
4
9002-2230
1
SELF-LOCKING NUT
5
9020-7821
1
BARREL
6
9020-5450
1
BUSHING
7
9020-7822
1
PISTON ROD
8
9002-2277
1
WIPER RING
9
9002-2247
1
ROD SEAL
10
9040-2099
1
ROD BEARING
11
9002-4232
1
BACK-UP RING
12
9002-3232
1
O-RING
13
9002-3117
1
O-RING
14
9040-2098
1
PISTON
15
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
16
9103-1393
1
BUSHING
