Gradall 544 User Manual
Page 34
CHASSIS & ATTACHING PARTS

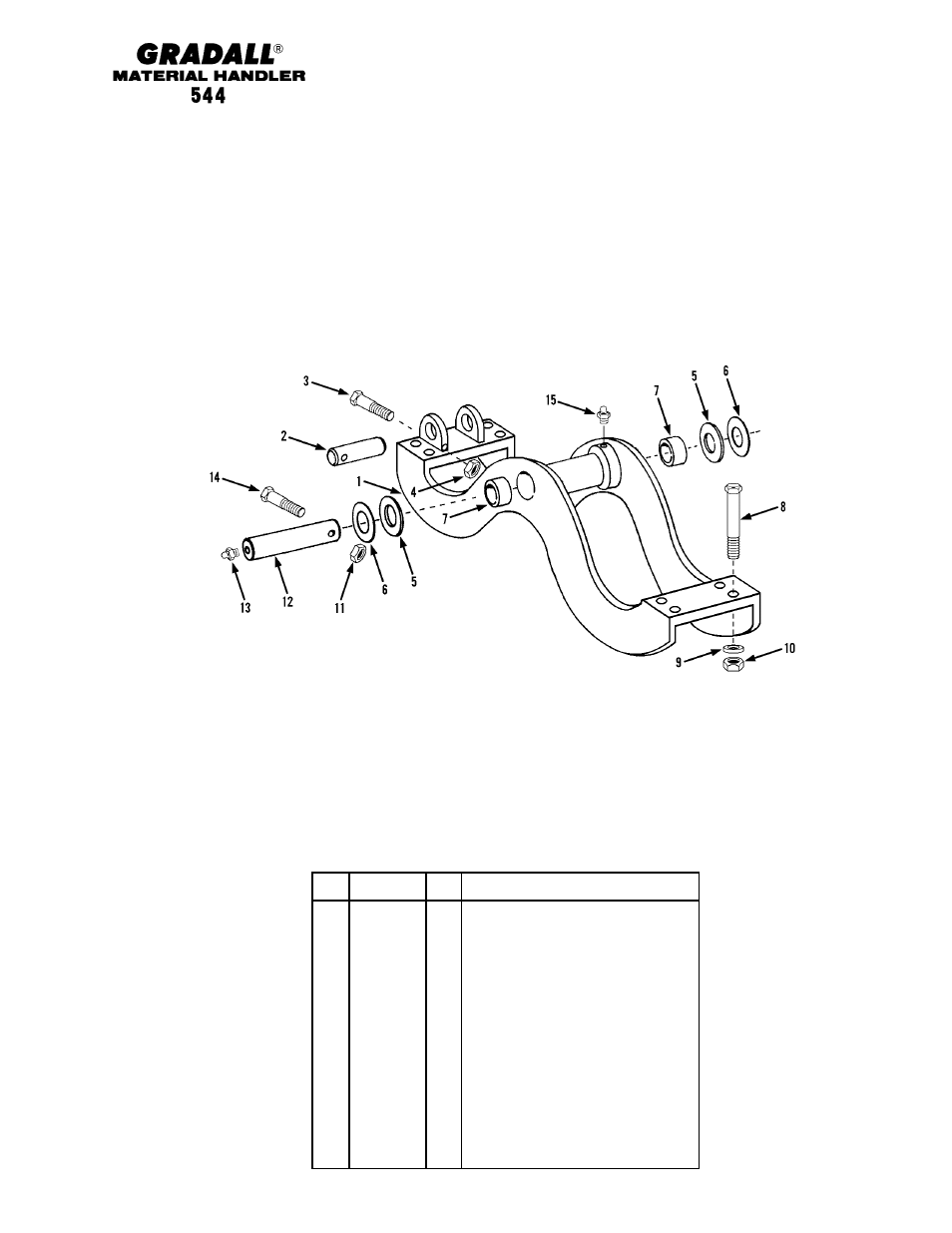

Front Axle Cradle & Attaching Parts
Starting Serial No. 8655105G
Original Issue 4-86
Revised 9-89
2-4
Item
Part No.
Qty.
Description Of Part
1
9080-1303
1
FRONT AXLE CRADLE
2
9020-6847
1
SWAY CYLINDER ROD PIN
3
8820-1106
1
HEX HD CAPSCREW, 5/8-11X4-1/2,
GR5
4
8855-1010
1
HEX NUT, 5/8-11
5
9020-5891
2
SPACER
6
9103-1014
AR
SHIM
7
9103-1371
2
BUSHING
8
9004-1002
8
HEX HD CAPSCREW (lubricate and
torque to 545-595 ft. lbs.)
9
9002-7475
8
WASHER
10
8852-1216
8
HEX LOCKNUT, 1-8
11
8852-1016
1
HEX LOCKNUT, 1-8 (Stover)
12
9103-1176
1
FRAME PIN
13
8867-1001
2
LUBE FITTING, STRAIGHT, 1/8
14
8320-1031
1
HEX HD CAPSCREW
15
8867-1008
2
LUBE FITTING, STRAIGHT, 1/4-28
PCN L-8797
