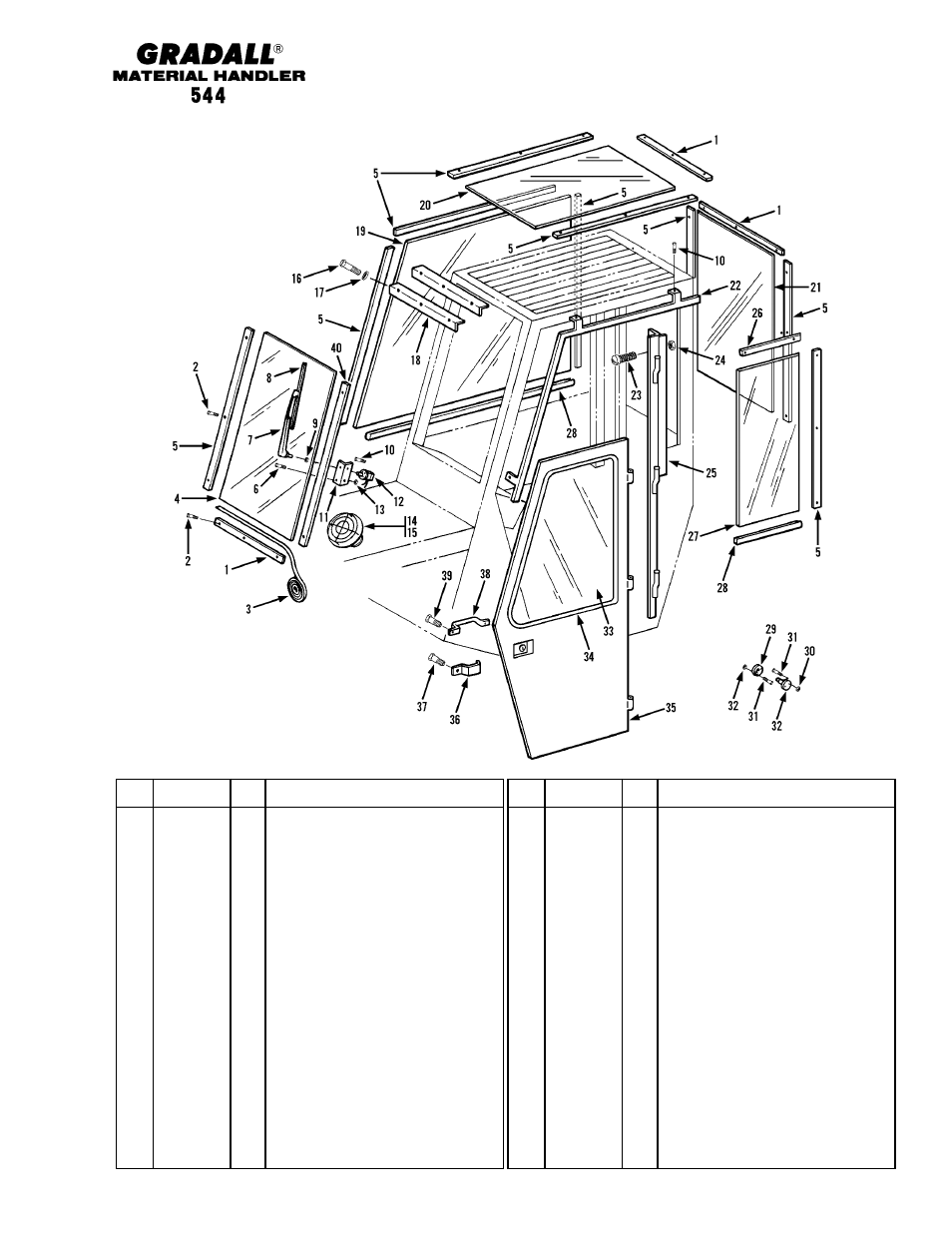

CHASSIS & ATTACHING PARTS
Cab Enclosure, Wiper & Defroster
Starting Serial No. 8655105G
Original Issue 7-86
Revised 2-92
PCN L-910189
Item
Part No.
Qty.
Description Of Part
1
9103-1361
2
WINDOW HOLD DOWN BAR
2
9002-7319
AR
SELF-TAPPING SCREW (window hold
down bar)
3
9020-0755
AR
BULK WEATHERSTRIPPING (50 feet)
4
9040-3036
1
FRONT WINDOW
5
9103-1362
4
WINDOW HOLD DOWN BAR
6
8820-1003
1
HEX HD CAPSCREW, 1/4-20X3/4,
GR5
7
9103-3464
1
WINDSHIELD WIPER ARM
8
9103-3465
1
WIPER BLADE
9
9002-7214
1
WIPER MOTOR SHAFT GROMMET
10
9002-7319
5
SELF-TAPPING SCREW
11
9020-6025
1
WIPER MOTOR MOUNTING ANGLE
12
9020-6023
1
WIPER MOTOR
13
8850-1004
1
HEX NUT, 1/4-20
14
9020-0680
1
DEFROSTER FAN
15
8832-1025
4
SELF-TAPPING SCREW, #8-32X3/4
16
8820-1031
2
HEX HD CAPSCREW, 3/8-16X1/2,
GR5
17
8855-1011
2
LOCKWASHER, 3/8
18
9020-6613
1
ANGLE
19
9020-5846
1
RIGHT SIDE WINDOW
20
9040-3034
1
TOP WINDOW
Item
Part No.
Qty.
Description Of Part
21
9040-3035
1
REAR WINDOW
22
9040-3032
1
DOOR TROUGH
23
8830-1309
4
FLAT HD MACHINE SCREW,
1/4-20X3/4
24
8850-1004
4
HEX NUT, 1/4-20
25
9040-3082
1
DOOR POST
26
9103-1360
1
LEFT WINDOW TOP HOLD DOWN
BAR
27
9040-3033
1
LEFT SIDE WINDOW
28
9020-6100
AR
RUBBER GLAZING STRIP
29
9020-5888
1
PLUNGER SOCKET
30
9020-5886
1
DOOR HOLD PLUNGER
31
8820-1309
4
HEX HD CAPSCREW, 3/8-16X2, GR5
32
8850-1006
4
HEX NUT, 3/8-16
33
9041-0229
1
DOOR WINDOW
34
8366-1145
AR
RUBBER GLAZING STRIP (8' long)
35
9080-1238
1
DOOR ASSY
36
9020-3627
1
HANDLE
37
8820-1031
2
HEX HD CAPSCREW, 3/8-16X1/2,
GR5
38
9020-3840
1
DOOR PULL HANDLE
39
8832-1039
2
SELF-TAPPING SCREW, #10-32X1/2
40
9103-1362
1
WINDOW HOLD DOWN BAR
2-2
