BOOMS

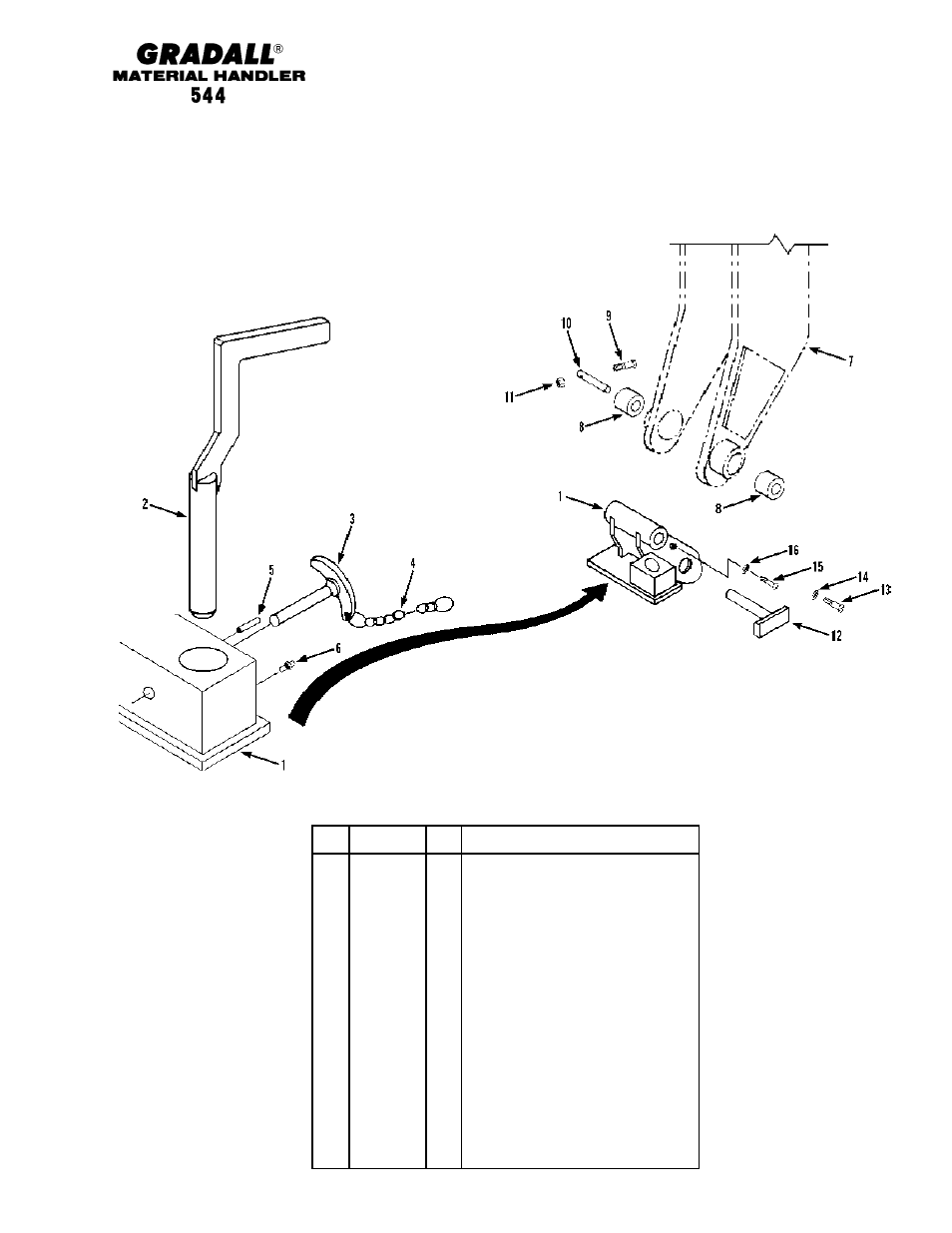

Quick Switch Assembly
Starting Serial No. 0155269
Original Issue 7-89
3-6
Item Part No. Qty. Description Of Part
9104-5095 1 QUICK SWITCH ASSY
1 9104-6074 1 QUICK SWITCH WELDMENT
2 9108-6073 1 PLUNGER WELDMENT
3 9020-7902 1 QUICK RELEASE PIN
4 9103-3038 1 JACK CHAIN, 8" LONG, SIZE 12
5 8863-1509 1 ROLL PIN, 1/4X2
6 8867-1008 1 LUBE FITTING, STRAIGHT, 1/4-28
7 Ref FOURTH BOOM SECTION
WELDMENT (see page 3-4 for details)
8 Ref BUSHING (see page 3-4 for details)
9 8664-1057 1 HEX HD CAPSCREW, 5/8-11X4-1/2,
GR8
10 9104-1365 1 HEAD PIN
11 8852-1010 1 HEX LOCKNUT, 5/8-11
12 9020-7046 1 TILT CYLINDER ROD END PIN
13 8820-1065 2 HEX HD CAPSCREW, 1/2-13X1, GR5
14 8855-1013 2 LOCKWASHER, 1/2
15 8830-1090 1 ROUND HD MACHINE SCREW,
#10-24X1/2
16 8856-1105 1 FLAT WASHER, #10
PCN L-8854
