CHASSIS & ATTACHING PARTS

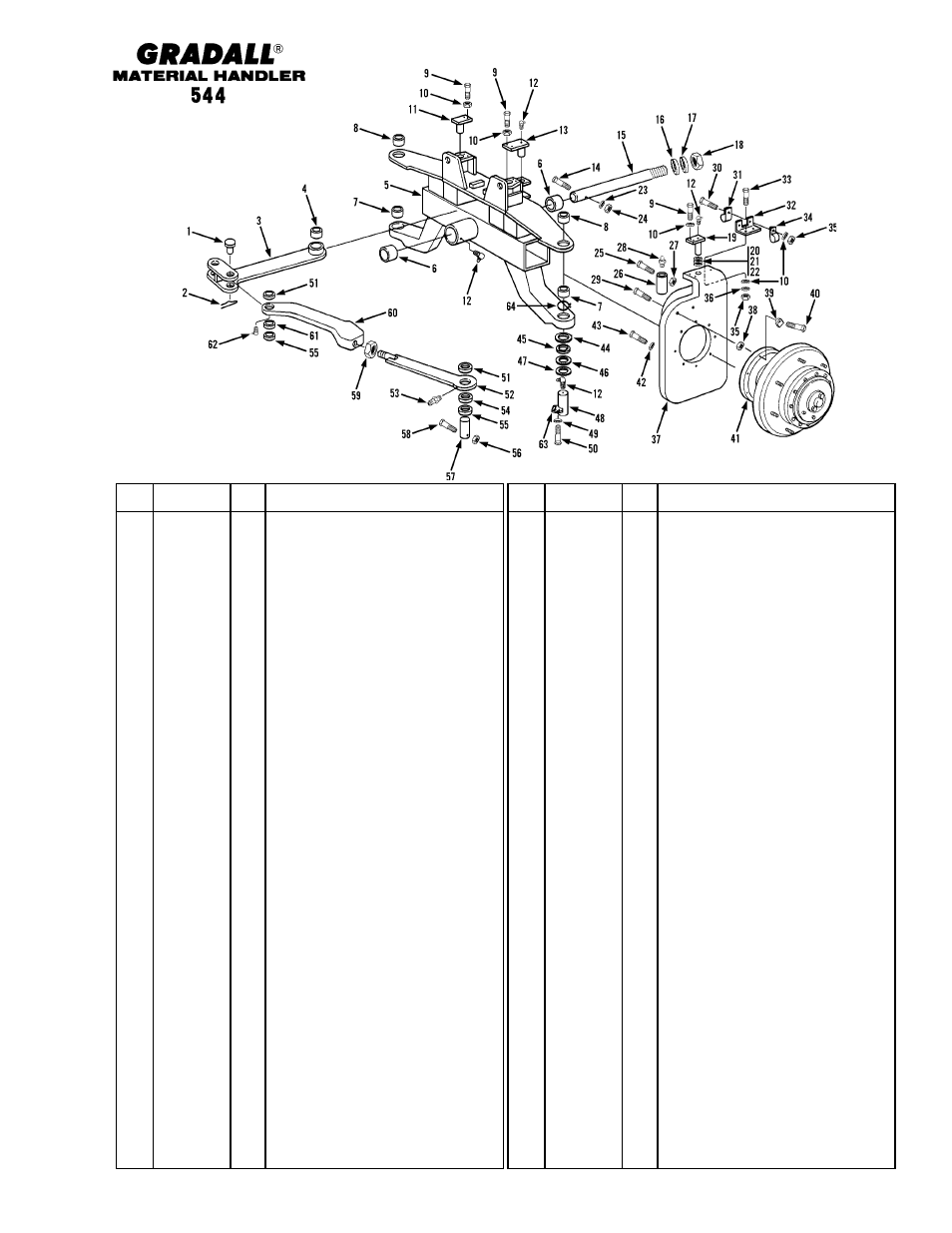

Rear Steering Axle & Attaching Parts
Starting Serial No. 8755124G
Original Issue 9-87
Revised 9-89
2-5
L-8631, 8721, 8732, 8829
Item
Part No.
Qty.
Description Of Part
32
9103-1239
2
BRACKET
33
8820-1037
4
HEX HD CAPSCREW, 3/8-16X1-1/2,
GR5
34
9020-2343
4
TUBE CLAMP
35
8850-1006
8
HEX NUT, 3/8-16
36
8855-1011
4
LOCK WASHER, 3/8
37
9104-0003
1
STEERING KNUCKLE, L.H.
9104-0004
1
STEERING KNUCKLE, R.H.
38
8850-1110
2
HEAVY HEX JAM NUT, 5/8-11
39
9104-1403
2
MODIFIED WASHER
40
9104-3222
2
CAPSCREW
41
Ref
WHEEL DRIVE ASSY (see page 6-17
for details)
42
8692-3010
14
HARDENED WASHER
43
8320-1006
14
HEX HD CAPSCREW, 3/4-10X2, GR8
44
9020-7484
AR
FELT (1/2" thick)
9020-7485
AR
FELT (1/4" thick)
45
9020-6542
2
THRUST BEARING
46
9020-0253
AR
THRUST WASHER
47
9020-3039
AR
SHIM (1/16" thick)
9020-3040
AR
SHIM (1/8" thick)
48
9103-1344
2
LOWER STEERING KNUCKLE PIN
49
8540-1340
6
HARDENED WASHER
50
8320-1129
6
HEX HD CAPSCREW, SELF-
LOCKING (Nylok), 1/2-13X1-1/4, GR8
51
9020-5653
AR
SHIM
52
9104-6024
2
TIE ROD BAR ASSY (includes items
53, 54)
53
8867-1001
1
LUBE FITTING, STRAIGHT, 1/8
54
9103-1397
1
BUSHING
55
9020-3139
AR
SHIM
56
8852-1306
2
HEX LOCKNUT, 3/8-16
57
9020-6896
2
PIN
58
8820-1041
2
HEX HD CAPSCREW, 3/8-16X2-1/2,
GR5
59
8850-1420
2
HEX JAM NUT, 1-1/4X12
60
9104-5008
2
TIE ROD ARM ASSY (includes items
61, 62)
61
9104-1509
1
BUSHING
62
8867-1022
1
LUBE FITTING, 90 DEGREES, 1/8
63
9103-1345
2
KEY PLATE
64
8858-1144
2
RETAINING RING
Item
Part No.
Qty.
Description Of Part
9106-5036
1
REAR AXLE REBUILD KIT (includes
items 4, 7, 8, 11, 13, 19, 22, 26, 44
thru 48, 51, 54, 55, 57, 61, 63)
9103-5122
1
KING PIN BUSHING KIT (includes
items 7, 28, 26, 44 thru 48, 63)
1
9104-3152
2
CLEVIS PIN
2
8863-1337
2
COTTER PIN, 3/16X1-1/2
3
9060-2826
1
IDLER ARM ASSY (includes item 4)
4
9020-5340
1
BUSHING
5
9104-6029
1
AXLE FRAME ASSY (includes items 6,
7, 8)
6
9103-1369
2
BUSHING
7
9103-1391
2
FRAME LOWER BUSHING
8
9103-1374
2
FRAME UPPER BUSHING
9
8320-1024
10
HEX HD CAPSCREW, SELF-
LOCKING (Nylok), 3/8-16X1, GR8
10
9002-7470
20
HARDENED WASHER
11
9020-7419
2
STEERING CYLINDER BASE PIN
12
8867-1022
6
LUBE FITTING, 90 DEGREES, 1/8
13
9020-6895
1
IDLER ARM MOUNT PIN
14
8679-1002
1
HEX HD CAPSCREW
15
9103-1440
1
REAR AXLE PIN
16
9020-6846
AR
SHIM (1/8" thick)
17
9103-1009
AR
SHIM (1/4" thick)
18
9002-2234
1
HEX LOCKNUT
19
9103-6043
2
PIN WELDMENT
20
9020-3039
AR
SHIM (1/16" thick)
21
9020-3040
AR
SHIM (1/8" thick)
22
9106-1112
AR
SHIM (.132 thick)
9106-1111
AR
SHIM (.0359 thick)
23
8856-1119
1
FLAT WASHER, 1-1/4
24
8510-1098
1
HEX NUT
25
8820-1078
2
HEX HD CAPSCREW, 1/2-13X4-1/2,
GR5
26
9103-1340
2
UPPER STEERING KNUCKLE PIN
27
8852-1208
2
HEX LOCKNUT, 1/2-13
28
8867-1001
4
LUBE FITTING, STRAIGHT, 1/8
29
8821-2260
2
SOCKET HD CAPSCREW, 5/8-11X2-
1/2, GR8
30
8820-1036
4
HEX HD CAPSCREW, 3/8-16X1-1/4,
GR5
31
8594-1017
2
HOSE CLAMP
