Brakes brake pedal & inching linkage – Gradall 544 User Manual
Page 104
8-3
L-8268
Item
Part No.
Qty.
Description Of Part
1
9104-3154
1
RETURN SPRING
2
9104-6050
1
BRAKE LEVER WELDMENT
3
8820-1068
1
HEX HD CAPSCREW, 1/2-13X1-3/4,
GR5
4
9020-1463
1
PEDAL WELDMENT
5
8850-1008
1
HEX NUT, 1/2-13
6
9002-1553
1
YOKE PIN, 5/16
7
8820-1003
2
HEX HD CAPSCREW, 1/4-20X3/4,
GR5
8
8855-1009
2
LOCK WASHER, 1/4
9
9103-1232
1
SWITCH MOUNTING BRACKET
10
9103-3202
1
TRANSMISSION DISCONNECT
SWITCH
11
8821-1032
2
SOCKET HD CAPSCREW, #10-24,
GR8
12
8856-1105
2
FLAT WASHER, #10
13
8855-1007
2
LOCK WASHER, #10
14
8850-1612
2
HEX NUT, #10-24
15
8668-3480
2
CRIMP-ON CONNECTOR
16
8348-3114
1
MALE CONNECTOR
17
8825-1023
1
SOCKET HD SHOULDER SCREW,
3/8X1-1/2, 5/16-18 THREAD
18
9104-3086
1
BEARING
Item
Part No.
Qty.
Description Of Part
19
9104-1196
1
ROLLER
20
8855-1010
1
LOCK WASHER, 5/16
21
8850-1005
1
HEX NUT, 5/16-18
22
8867-1008
1
LUBE FITTING, STRAIGHT, 1/4-28
23
9020-0290
2
BEARING
24
9002-8662
2
WASHER
25
9020-1562
1
PIN
26
8844-1001
2
SQUARE HD SET SCREW,
1/4-20X1/2 (cup point)
27
8319-1028
2
HEX HD CAPSCREW, M8X1.25
28
8319-1011
2
LOCK WASHER, M8
29
9002-1558
1
CLEVIS PIN & COTTER PIN
30
8882-1004
2
ADJUSTABLE YOKE END, 3/8-24
31
8850-1406
2
HEX JAM NUT, 5/16-24
32
9103-1085
1
ROD
33
9104-1197
2
SHIM
34
Ref
BRAKE VALVE ASSY (see page 10-19
for details)
35
9002-7987
1
CLEVIS SPRING
36
8821-2228
2
SOCKET HD CAPSCREW,
5/16-18X1-1/4, GR8
37
9103-3096
1
INCHING VALVE
9103-4018
1
INCHING VALVE SEAL KIT
BRAKES

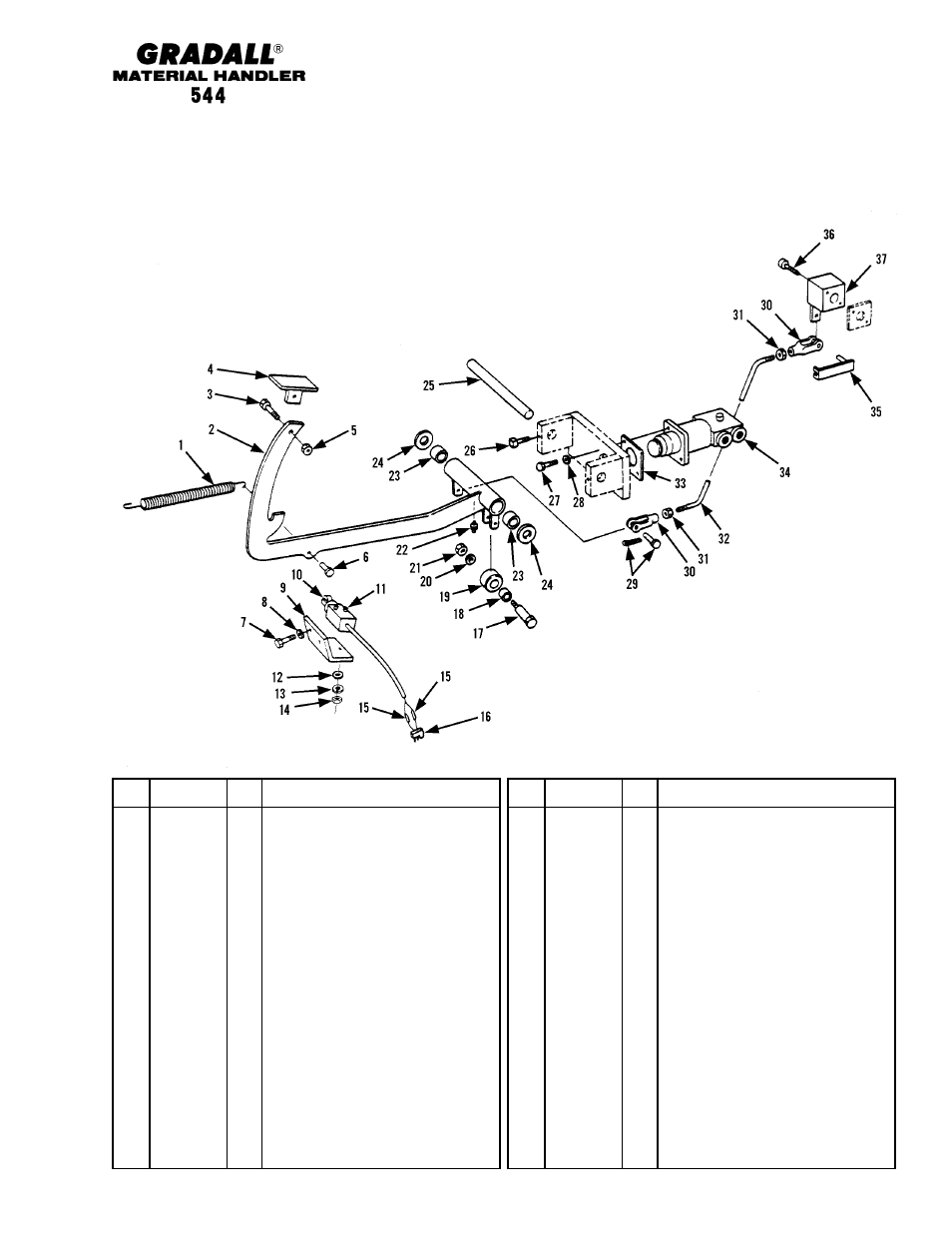

Brake Pedal & Inching Linkage
Starting Serial No. 8655105G
Original Issue 4-86
Revised 6-4-97
* Changed part number on item 1.
*
