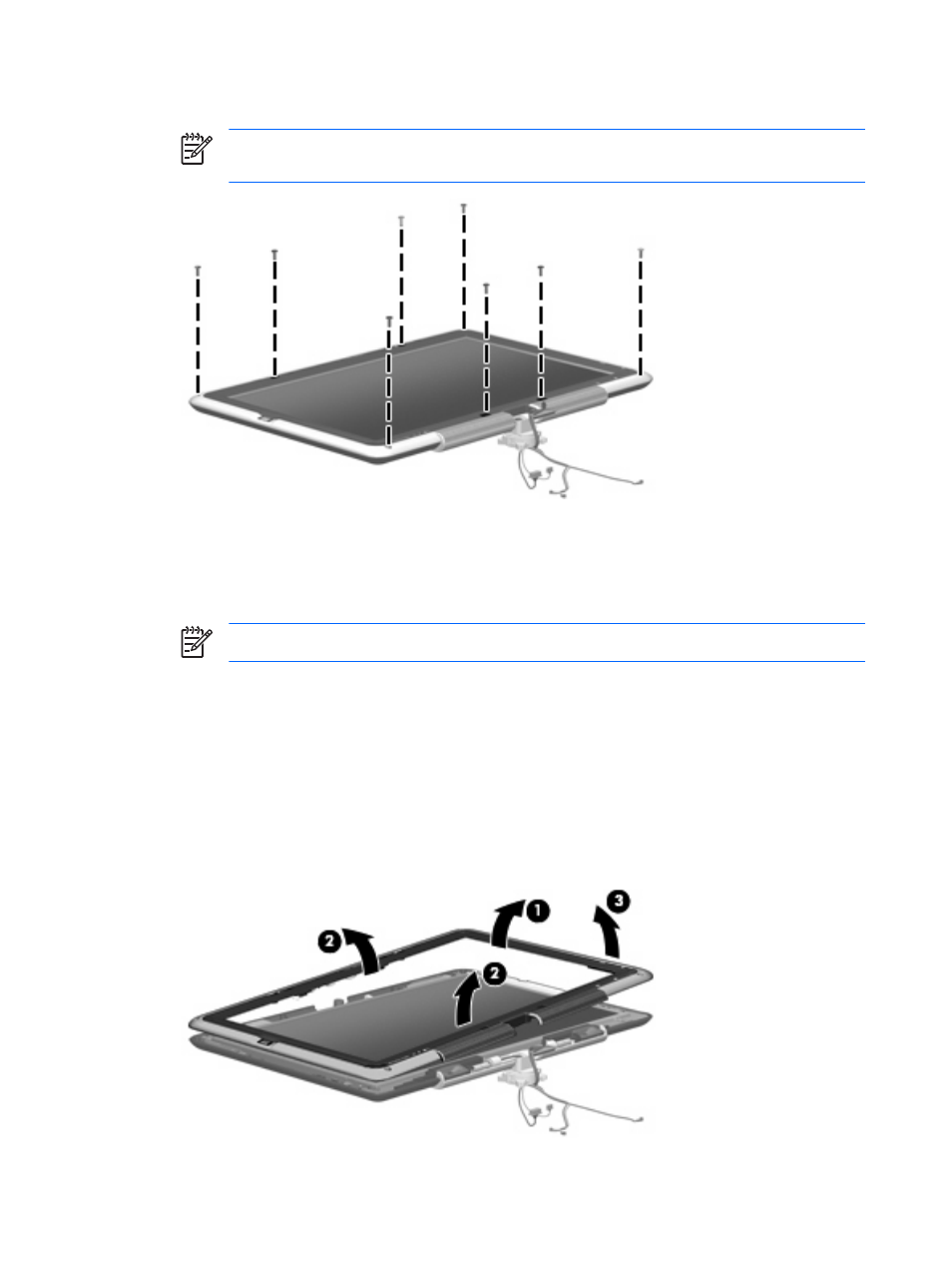

15 . Remove the eight Phillips PM2.0×7.0 screws that secure the display bezel to the display assembly.
NOTE: All screws used to secure display assembly internal subcomponents are available
in the Display Screw Kit, spare part number 441124-001.
16 . Flex the inside edges of the right side (1) of the display bezel and the inside edges of the top and
bottom sides (2) of the display bezel until the bezel disengages from the display assembly.
17 . Swing the right side of the display bezel (3) to the left until it rests upside down on the left side of
the display assembly.
NOTE: Display bezels are available using the following spare part numbers:
● 441117-001 - for use only with computer models equipped with a Web camera and fingerprint
reader
● 441116-001 - for use only with computer models equipped with a Web camera, but not
fingerprint reader
● 441118-001 - for use only with computer models equipped with a fingerprint reader, but not
a Web camera
● 441115-001 - for use only with computer models not equipped with a Web camera or
fingerprint reader
