Remove the WLAN module:

1

.

Position the computer with the front toward you.

2

.

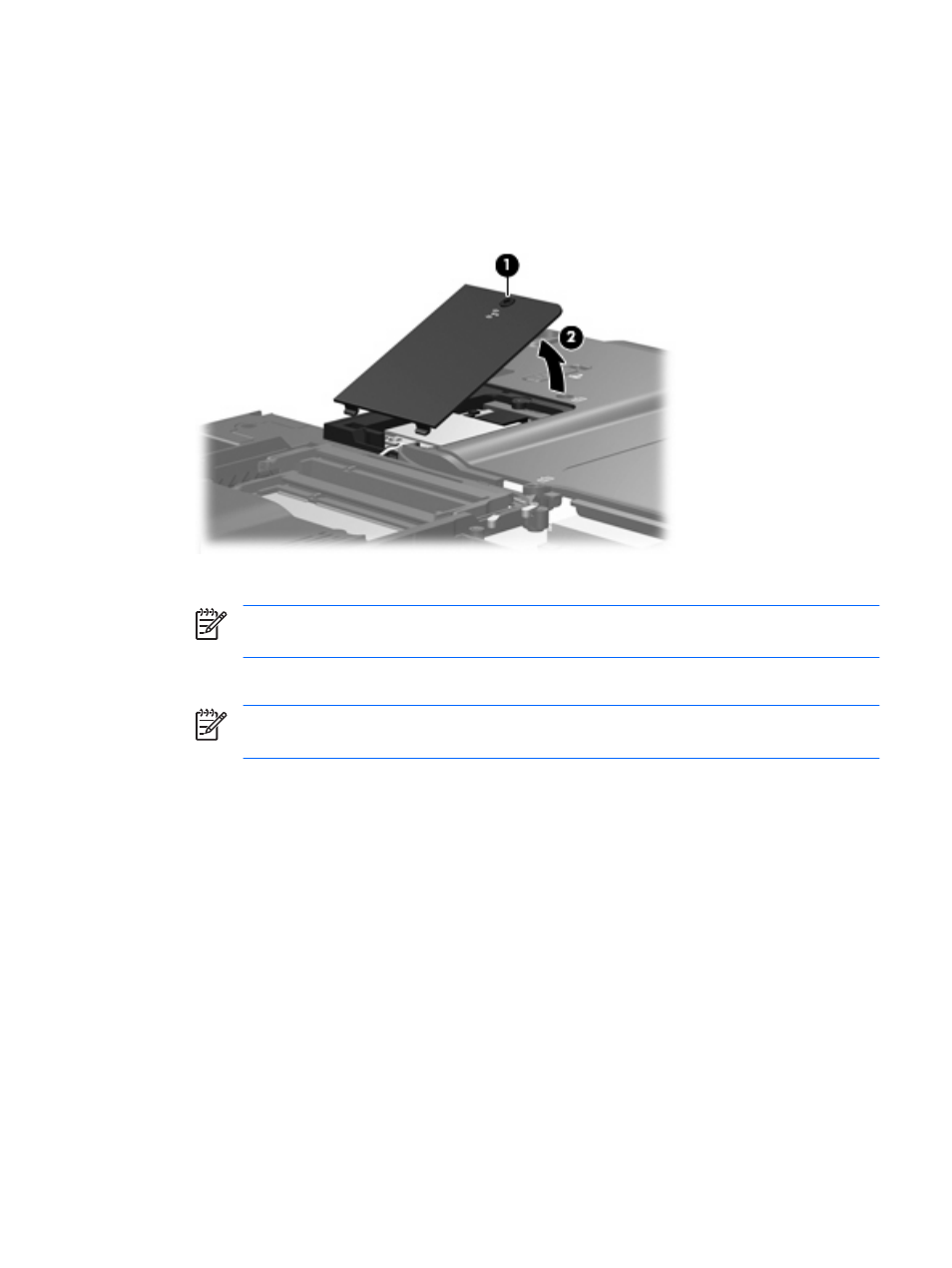

Loosen the Phillips PM2.0×4.0 screw (1) that secures the WLAN module compartment cover to the

computer.

3

.

Lift the right side of the WLAN module compartment cover (2) and swing it to the left.

4

.

Remove the WLAN module compartment cover.

NOTE:

The WLAN module compartment cover is included in the Plastics Kit, spare part

number 441138-001.

5

.

Disconnect the WLAN antenna cables (1) from the WLAN module.

NOTE:

The black WLAN antenna cable is connected to the WLAN module “Main” terminal.

The white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

6

.

Remove the two Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the computer. (The

edge of the module opposite the socket rises away from the computer.)
