Removal and Installation

8-74

HP DesignJets 1050C and 1055CM Printers Service Manual

NOTE

Working from the rear of the printer

NOTE

For steps 3 and 4 refer to Figure 82.

3. Remove the twelve T-15 screws (item 1) securing the pinch-arm

assemblies (item 2) to the underneath of the scan axis.

NOTE

The screws also secure the pinch-wheel cam to the printer.
Support the cam as the last of these screws are removed.

4. Remove the cam (item 3) from underneath the scan axis.

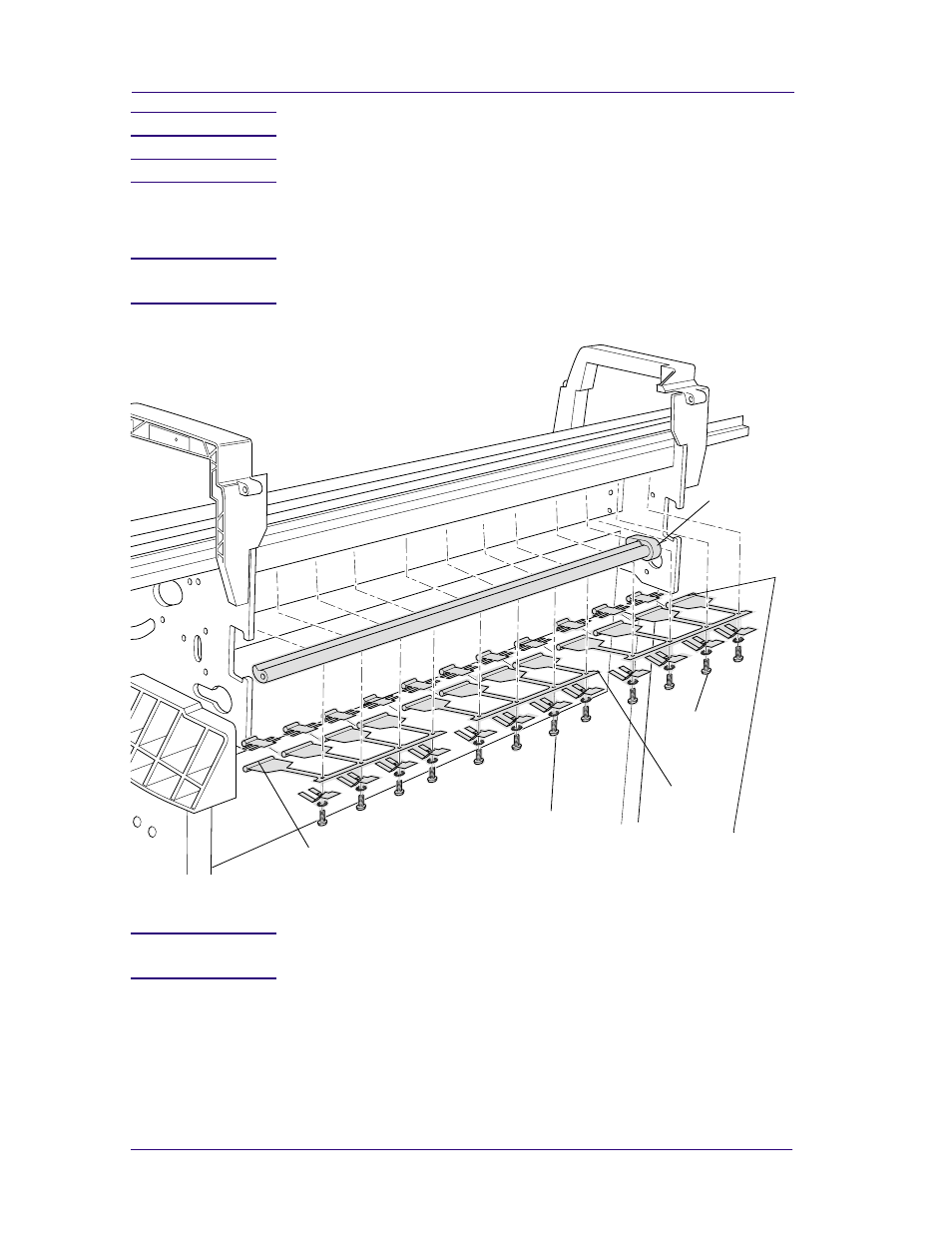

Figure 82: Pinch-arm Assemblies and Cam

NOTE

During installation, make sure you install the Pinch Assembly
with the White Pinch Rollers at each end.

White Pinch Roller
