Removal and Installation

8-40

HP DesignJets 1050C and 1055CM Printers Service Manual

NOTE

For the following steps, refer to Figure 37.

6. Remove the T-15 screw (item 1) from the trailing cable holder (item

2) and remove.

7. Remove two T-10 screws (item 3) from the trailing cable clamp

(item 4). Remove the trailing cable clamp (item 4).

WARNING

Be very careful when disconnecting the Trailing Cable from the
Electronics Module. Incorrect handling will damage the Trailing
Cable and then it will need replacing.

8. Carefully disconnect the trailing cable from the electronics module

and pull the trailing cable away from the printer.

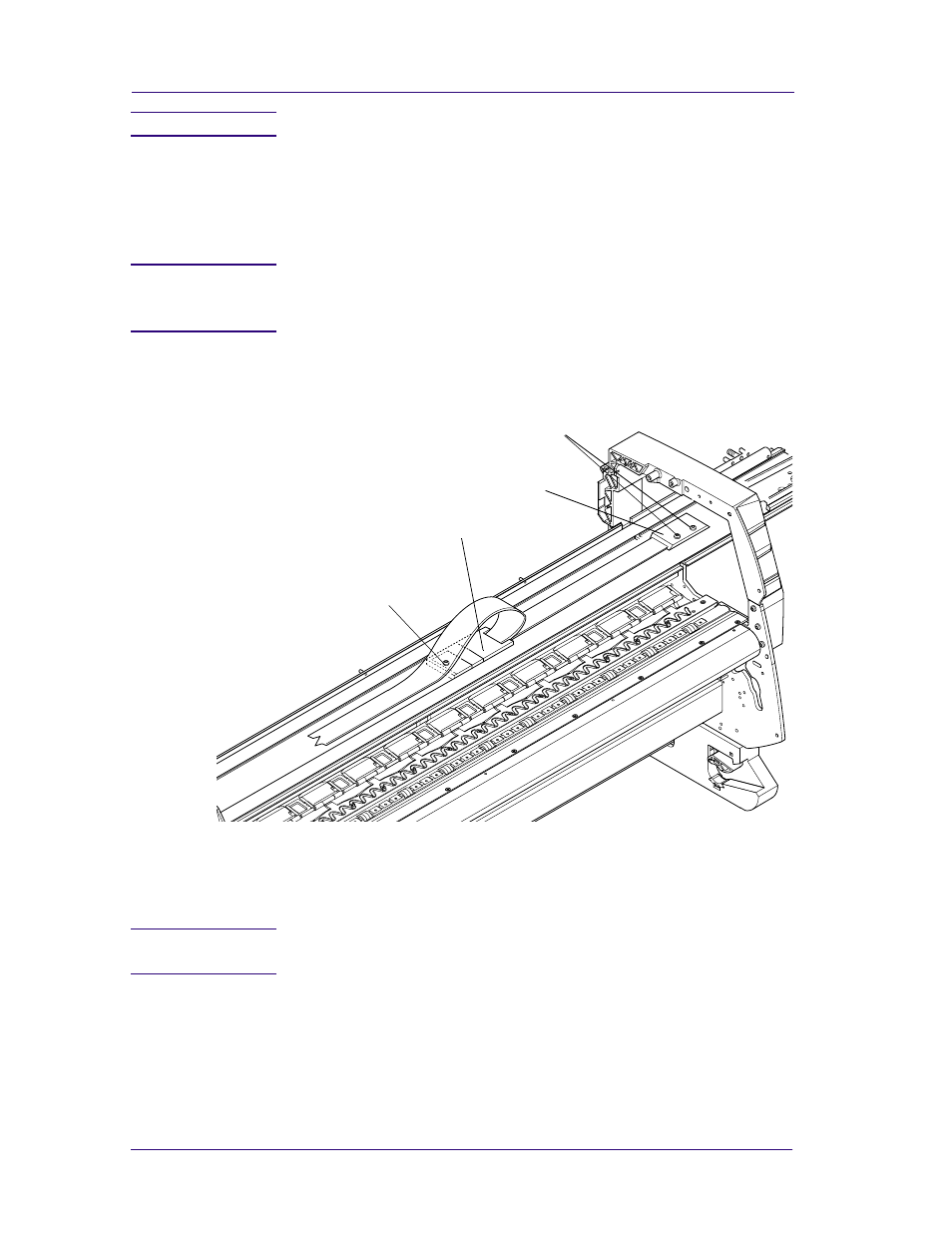

Figure 37: Trailing Cable

Installation of the Trailing Cable

WARNING

When reconnecting the Trailing Cable to the Electronics
Module, make sure you connect it correctly as follows:

1. Start reconnecting the Trailing Cable from left to right (the longest

strip will be connected to the 1st clip from the right).

2. Make sure you push the Trailing Cable in straight and not bent. Once

the Trailing Cable is inserted, you should hear an audible click.

C607413
