Page 229

Removal and Installation

8-21

HP DesignJets 1050C and 1055CM Printers Service Manual

Clutch Assembly and left hand miscellaneous parts

Refer to Figure 19 and Figure 20.

Removal

WARNING

Switch off the printer and remove the power cord.

1. Remove the following:

1. "Left Hand Cover" see page 8-13.

2. "Ink Supply System Assembly" see page 8-19.

NOTE

From steps 2 to 5, refer to Figure 19.

2. Pull apart the two tabs on the Paper Entry gear (item 1) and remove

the gear.

3. Using a long screwdriver remove two T-15 screws (item 5) securing

the clutch bracket (item 6) to the side chassis.

4. Remove the special T-20 screw (item 2).

NOTE

In the next step the assembly is spring loaded and when the
retaining screw is removed it may help to hold the assembly with
one hand to avoid loosing parts.

5. Remove the gears (item 3) and the spring (item 4) in the clutch

assembly. Refer to the note above.

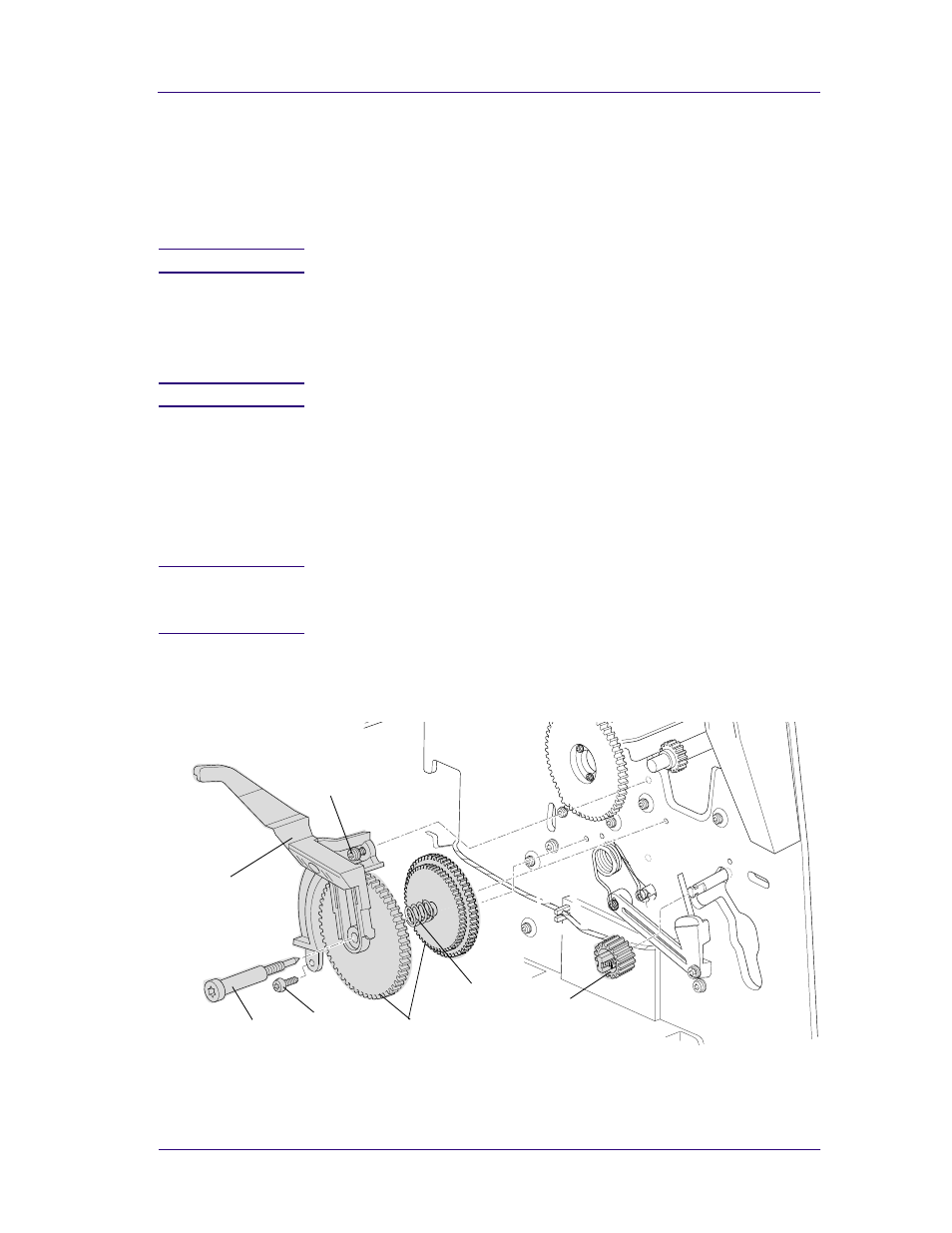

Figure 19: Clutch Assembly

C607420a
