HP 1055CMHP User Manual
Page 263
Removal and Installation
8-55
HP DesignJets 1050C and 1055CM Printers Service Manual
NOTE
Working from the rear of the printer.
7. Open the door at the back of the left hand cover by removing two
T15 screws (item 1) (refer to Figure 56).

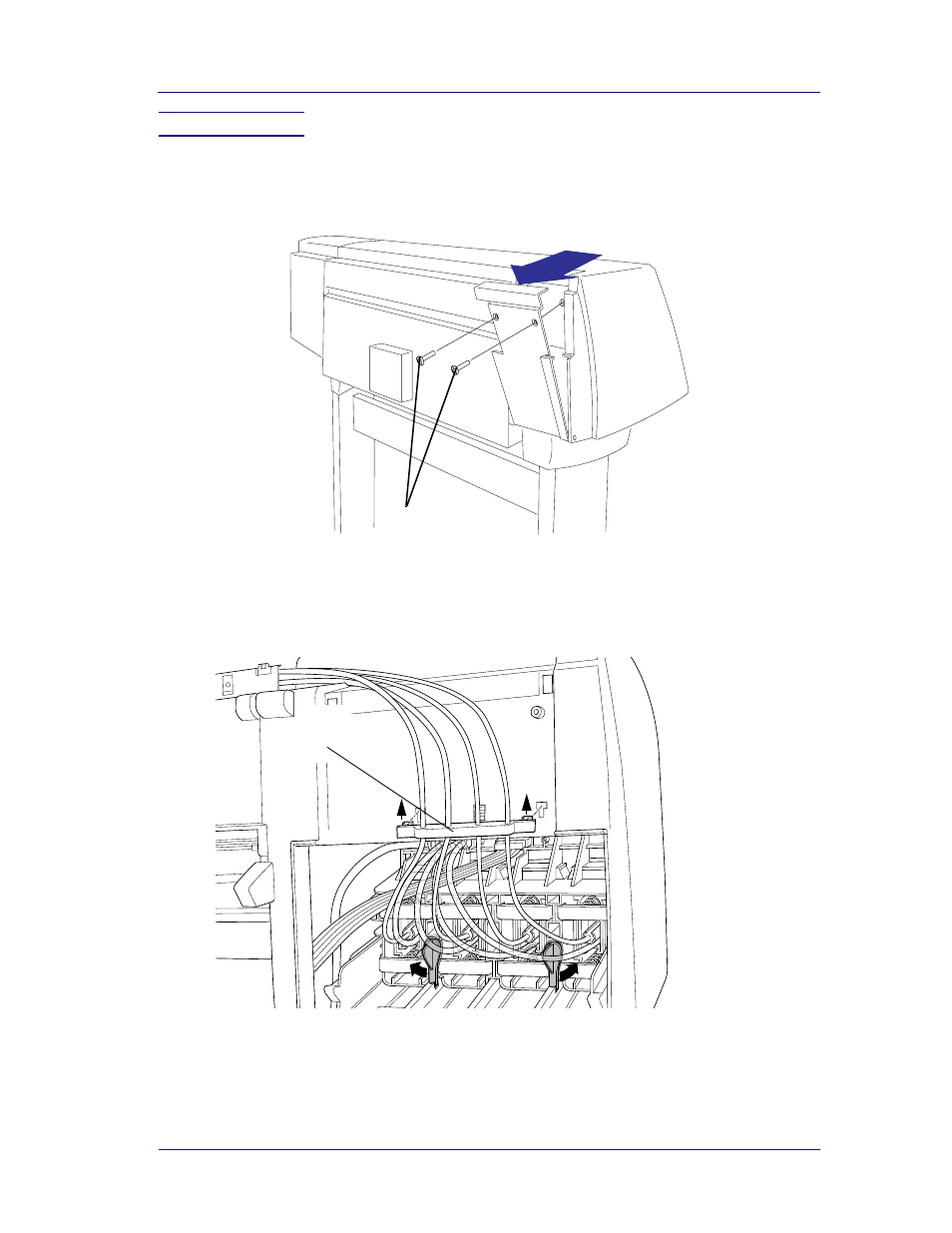

Figure 56: Rear Left Hand Cover
8. Release the tube holder (item 1) from the rear of the left hand cover
by pushing it up and out (refer to Figure 57).
Figure 57: Rear Tube Grip
1
1
2082a
