HP 1055CMHP User Manual
Page 280
Removal and Installation
8-72
HP DesignJets 1050C and 1055CM Printers Service Manual
4. Remove the two T-15 screws from the right hand side plate securing
the right side of the center guide (refer to Figure 79).

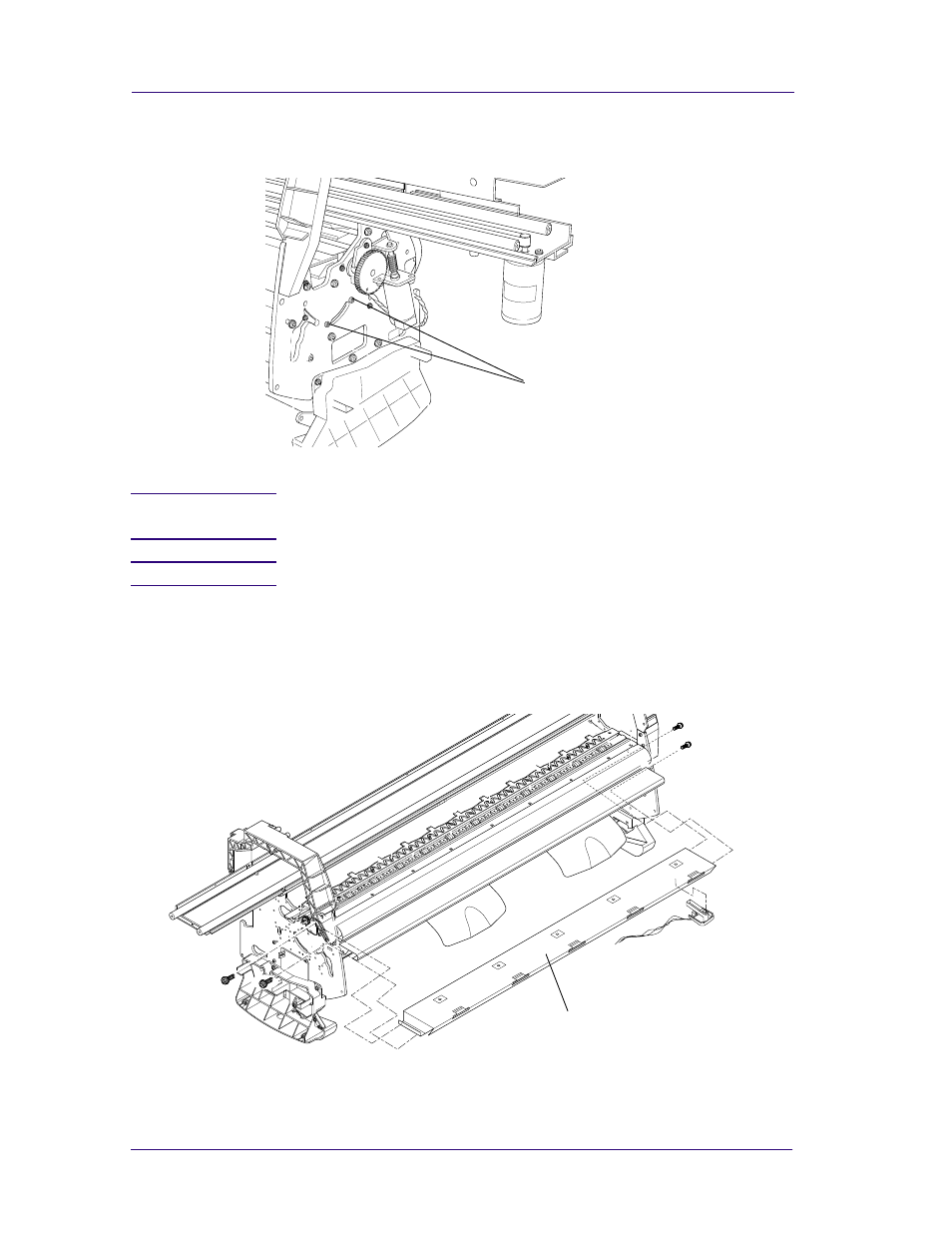

Figure 79: Right Hand Center Guide Screws
NOTE
For re-installation purposes, note the position of the pins
supporting the center guide in place.
NOTE
Working from the front of the printer
5. Remove the center guide (item 1) (refer to Figure 80):
a Lift up the front of the center guide
b Pull the complete assembly towards you and remove.
Figure 80: Center Guide
C607432
1
1
