HP 1055CMHP User Manual
Page 243
Removal and Installation
8-35
HP DesignJets 1050C and 1055CM Printers Service Manual
NOTE
For steps 4 and 5, refer to Figure 31.
4. Remove the 5.5mm nut (item 1) from the left side of the Printer that
attaches the Encoder Strip (item 3) to Spring Clip (item 2).
NOTE
To perform the next step use a screw driver to press the spring
clip (item 2) in towards the middle of the printer.
5. Release the Encoder Strip (item 3) from the retaining pin (item 4) on
the Spring Clip (item 2).

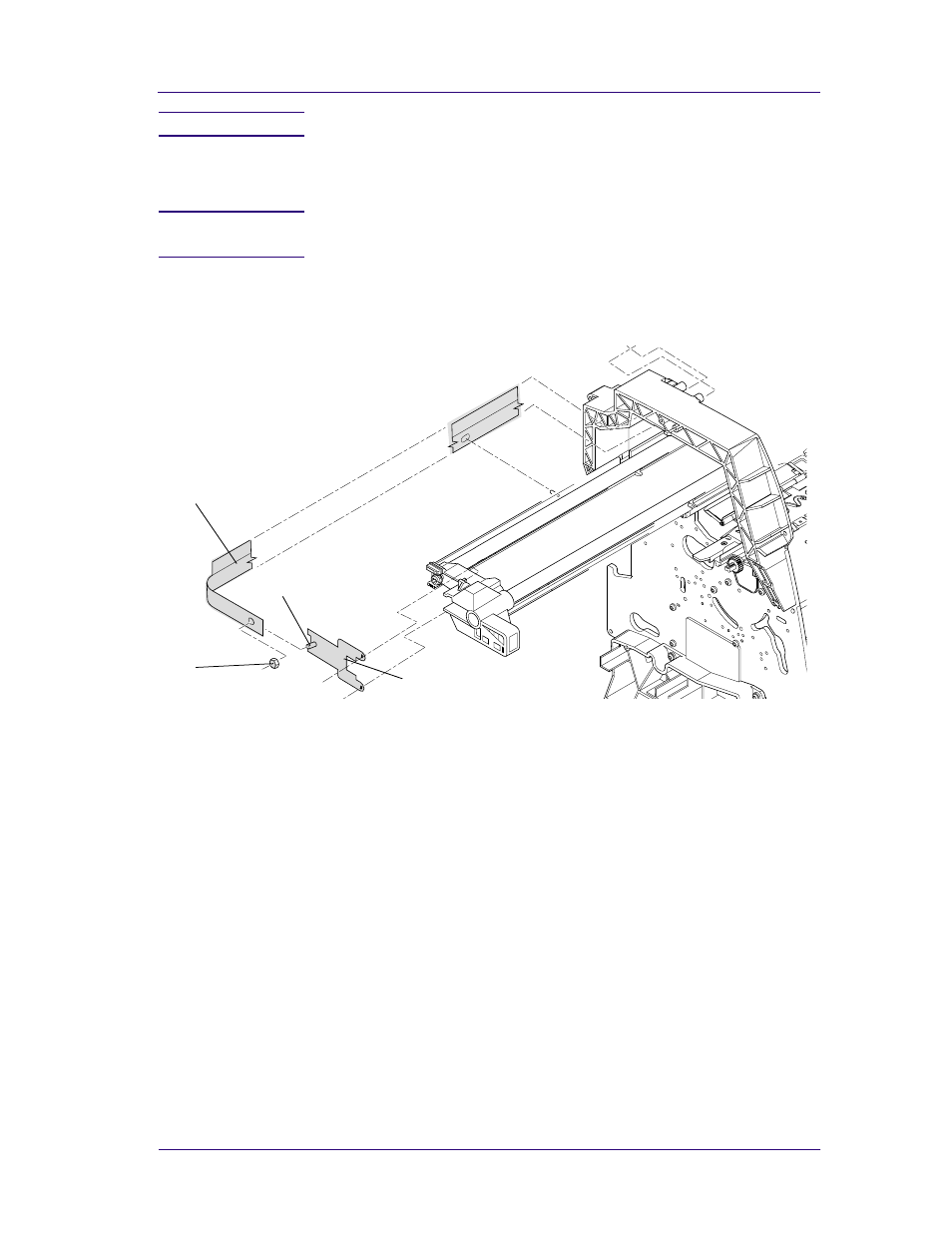

Figure 31: Encoder Strip
1
2
3
4
C60710
