4800dr Barcode Guide 1 - 1
1
Getting Started
About This Manual
This User’s Guide provides installation and programming instructions for the 4800dr document reader. Product specifications,
dimensions, warranty, and customer support information are also included.
Hand Held Products document readers are factory programmed for the most common terminal and communications settings. If
you need to change these settings, programming is accomplished by scanning the barcodes in this guide.
An asterisk (*) next to an option indicates the default setting.
Unpacking the Document Reader
After you open the shipping carton, take the following steps:
• Check for damage during shipment. Report damage immediately to the carrier who delivered the carton.
• Make sure the items in the carton match your order.
• Save the shipping container for later storage or shipping.
The packaging for this device is as eco-friendly as we could make it. Please recycle the packaging.
Document Reader Models
The chart below lists the interfaces that can be used with your document reader.

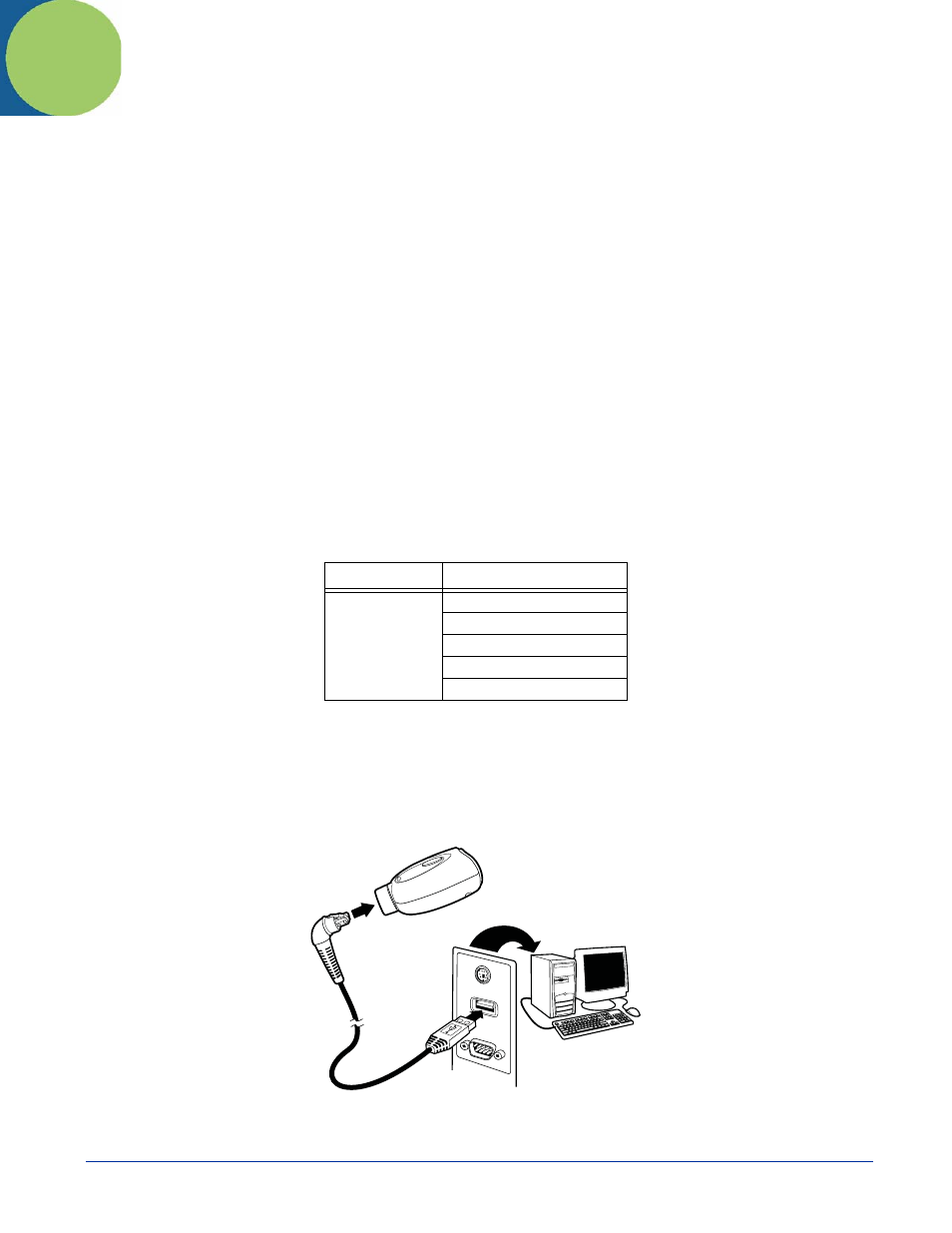

Connecting the Document Reader with USB
Note: See "Document Reader Models" on page 1-1 to determine which interfaces apply to your document reader.
A document reader can be connected to the USB port of a computer.
1. Connect the appropriate interface cable to the document reader first, then to the computer.
2. Program the document reader for a USB interface using the Plug and Play barcodes beginning on page 1-3 .
Model Interface
4800drXXXXX TTL level 232
USB keyboard
USB HID
USB retail (IBM SurePOS)
USB COM port emulation
