1-63
Rev 2 Apr/2004 KMD 250 Pilot's Guide
Section 1
Basic Operation

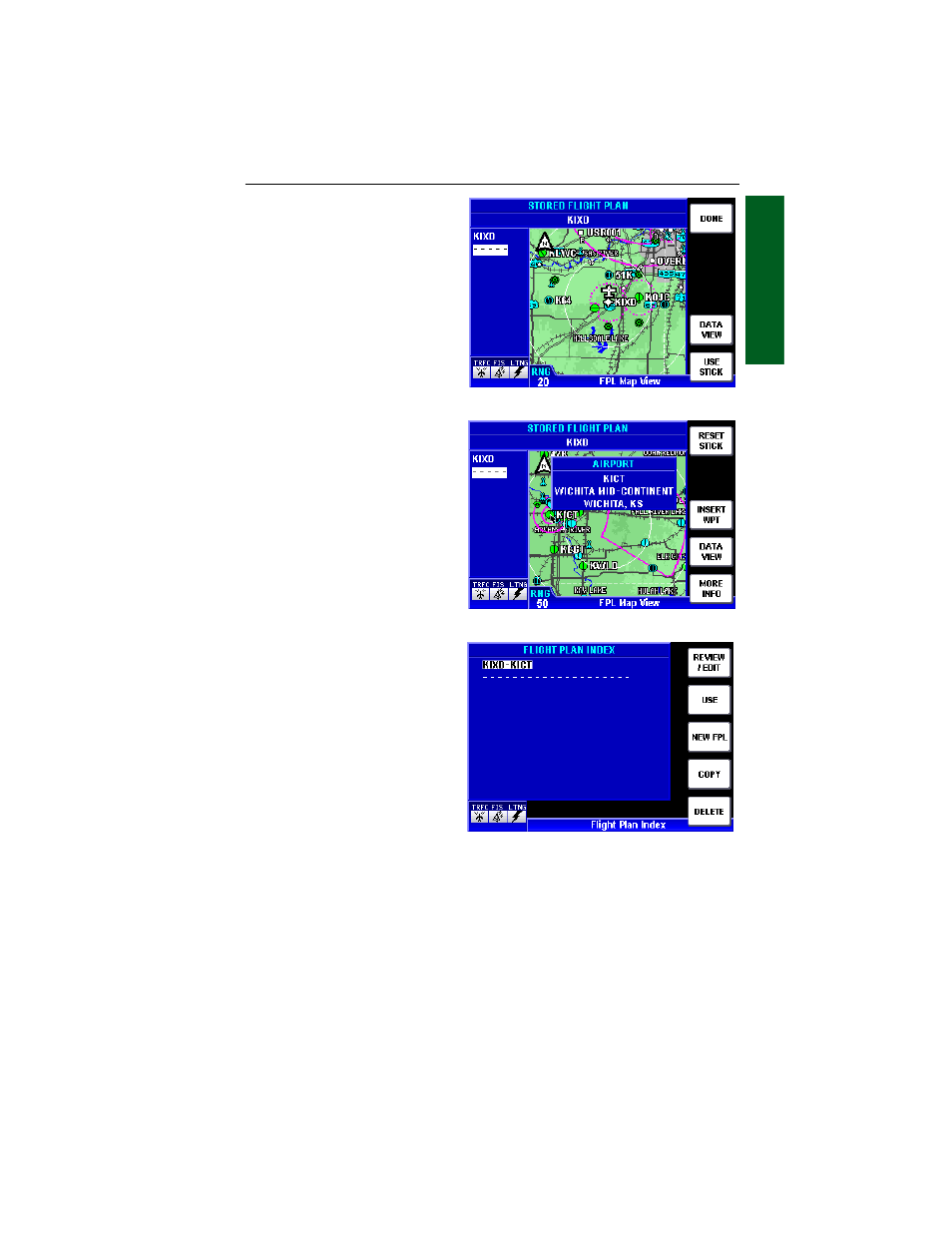

Press the OK Softkey and the
first waypoint is entered in the
list as shown in Figure 1-113.
To select the waypoint using
the Joystick Pointer, press the
USE STICK Softkey. Using
the Joystick, move the pointer
to the desired place on the map
as in Figure 1-114. Press the
INSERT WPT Softkey to enter
the waypoint in the list.
3. Continue entering way-
points using either method until
the flight plan is complete.
Press the DONE Softkey and
the flight plan will be entered
on the FLIGHT PLAN INDEX
Page as shown in Figure 1-
115.
Flight Plan Operation
Figure 1-113
Figure 1-114
Figure 1-115
