1-3
Rev 4 Aug/2007 KMD 250 Pilot's Guide
Section 1
Basic Operation
GENERAL INFORMATION
This portion of the manual provides an overview of the user interface
controls and display presentation of the KMD 250 Multifunction Display.
This manual also provides an explanation of each of the individual dis-
plays that the KMD 250 unit presents.
The operating system of the Bendix/King KMD 250 keeps to a minimum
the number of key presses necessary to activate the various functions,
especially those most frequently used in the air. The provision of a joy-
stick makes it considerably easier to operate the unit and allows for fast
and efficient access to most functions.

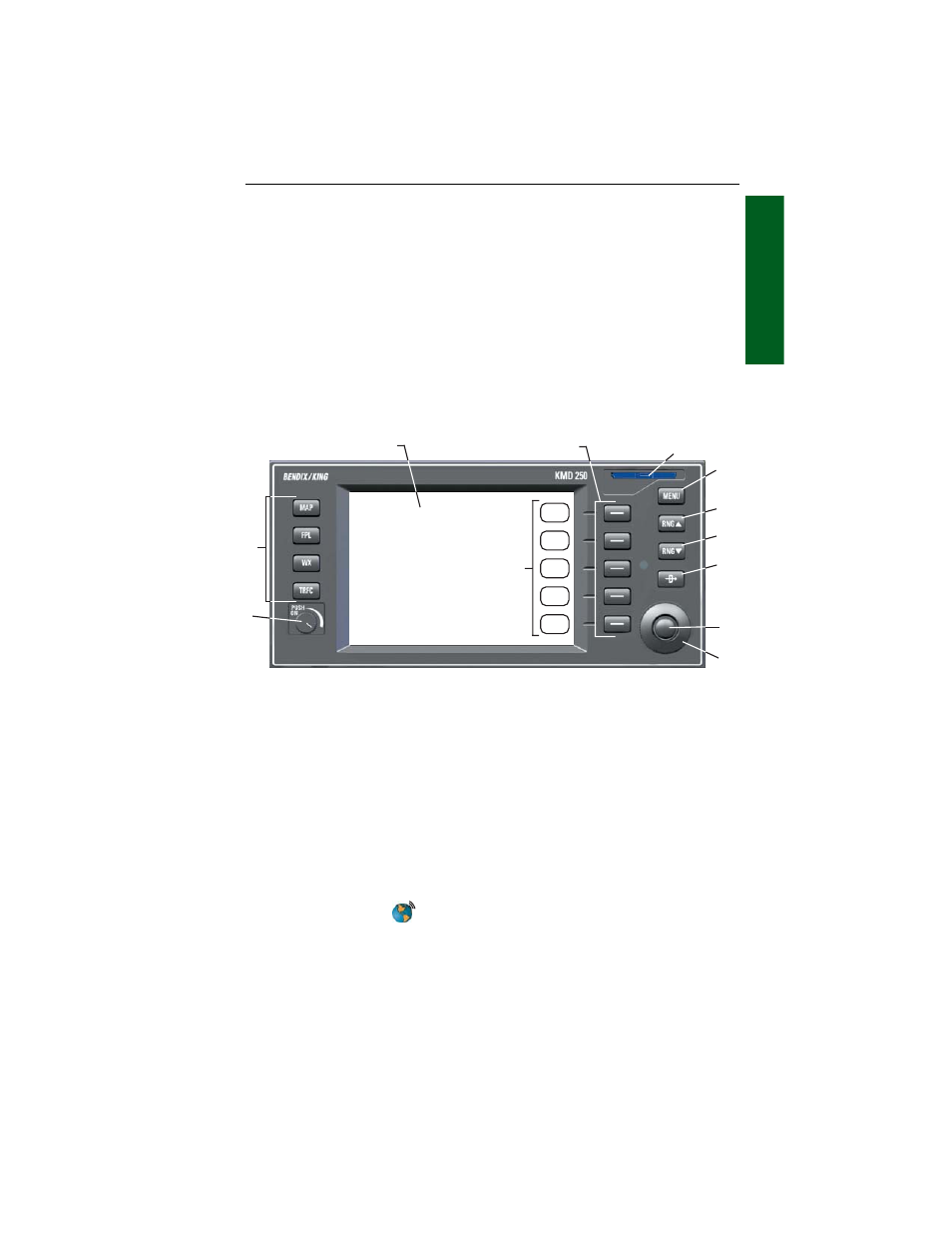

1. On/Off/Brightness Control
2. Function Select Keys
3. Display
4. Softkeys
5. Data Card
6. Menu Key
7. Range Up Key
8. Range Down Key
9. Direct-To Key
NRST (Nearest) Key
10. Joystick
11. Rotary Knob
12. Softkey Labels
General Information
1
12
10
11
6
4
2
5 3
7
8
9
