BendixKing KMD 250 - Manual (Page 64)

1-45
Rev 2 Apr/2004 KMD 250 Pilot's Guide
Section 1
Basic Operation
the cursor to the next field.
Again, use the Rotary Knob to
enter the desired number.
Repeat using the Joystick and
the Rotary Knob until the
desired latitude/longitude is
entered.
13. The second way to enter
the position of a waypoint is by
entering the bearing and dis-
tance from a known position,
such as an airport or navaid.
This is done by first using the
Joystick to place the cursor
over Present Position as
shown in Figure 1-75. Turn the
Rotary Knob one increment to
display the WAYPOINT
ENTRY window as shown in
Figure 1-76.
14. Use a combination of the
Joystick and Rotary Knob as
previously discussed to enter
the desired identifier of the air-
port or navaid as shown in
Figure 1-77. Note the bearing
and distance.
User Waypoints

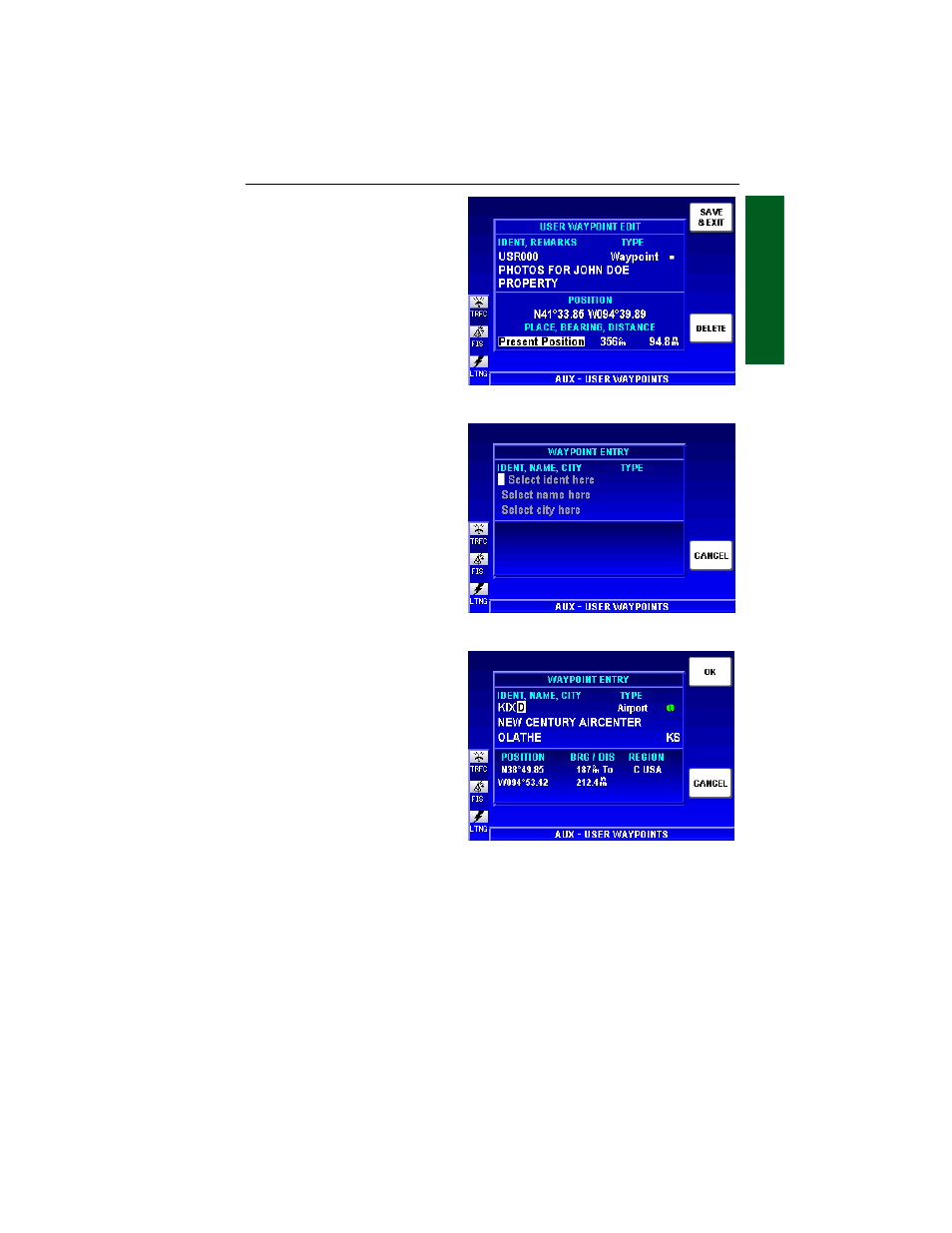

Figure 1-75
Figure 1-76
Figure 1-77
