TEMPORARILY DECLUT-
TERING THE MAP
Sometimes it is necessary to
temporarily reduce the amount
of data displayed on the map in
order to make it more readable.
This is known as decluttering.
Perform the following steps
until the desired level declut-
tering is achieved.
1.
Press the MENU Key to
display the DECLUTTER
Softkey as shown in Figure 1-
51.
2.
Press the DECLUTTER
Softkey. On the first press the
land data will be removed from
the display as seen in Figure 1-
52. Notice roads, railways, city
icons, etc. are no longer dis-
played. Note also that a -L is
now shown in the bottom left of
the screen indicating the dis-
play is minus land data.
3.
Press the DECLUTTER
Softkey again. On the second
press the aeronautical data will
be removed from the display
as seen in Figure 1-53. Notice
airports, airspace boundaries,
etc. are no longer displayed.
Note also that a -A is now
added in the bottom left of the
screen indicating the display is
also minus aeronautical data in
addition to land data.

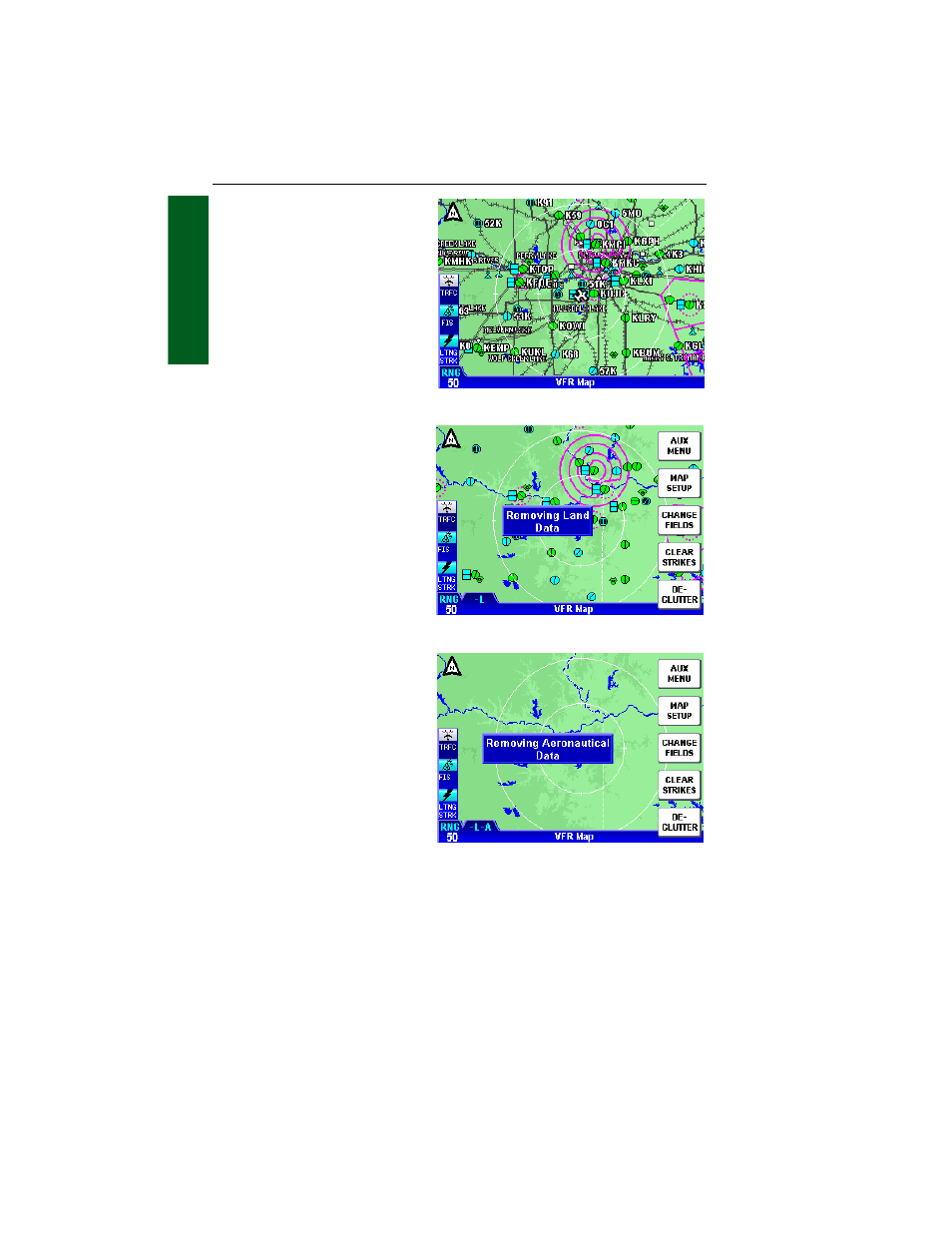

Figure 1-52
