1-20
KMD 250 Pilot's Guide
Section 1
Basic Operation
Map Operation
Rev 2 Apr/2004

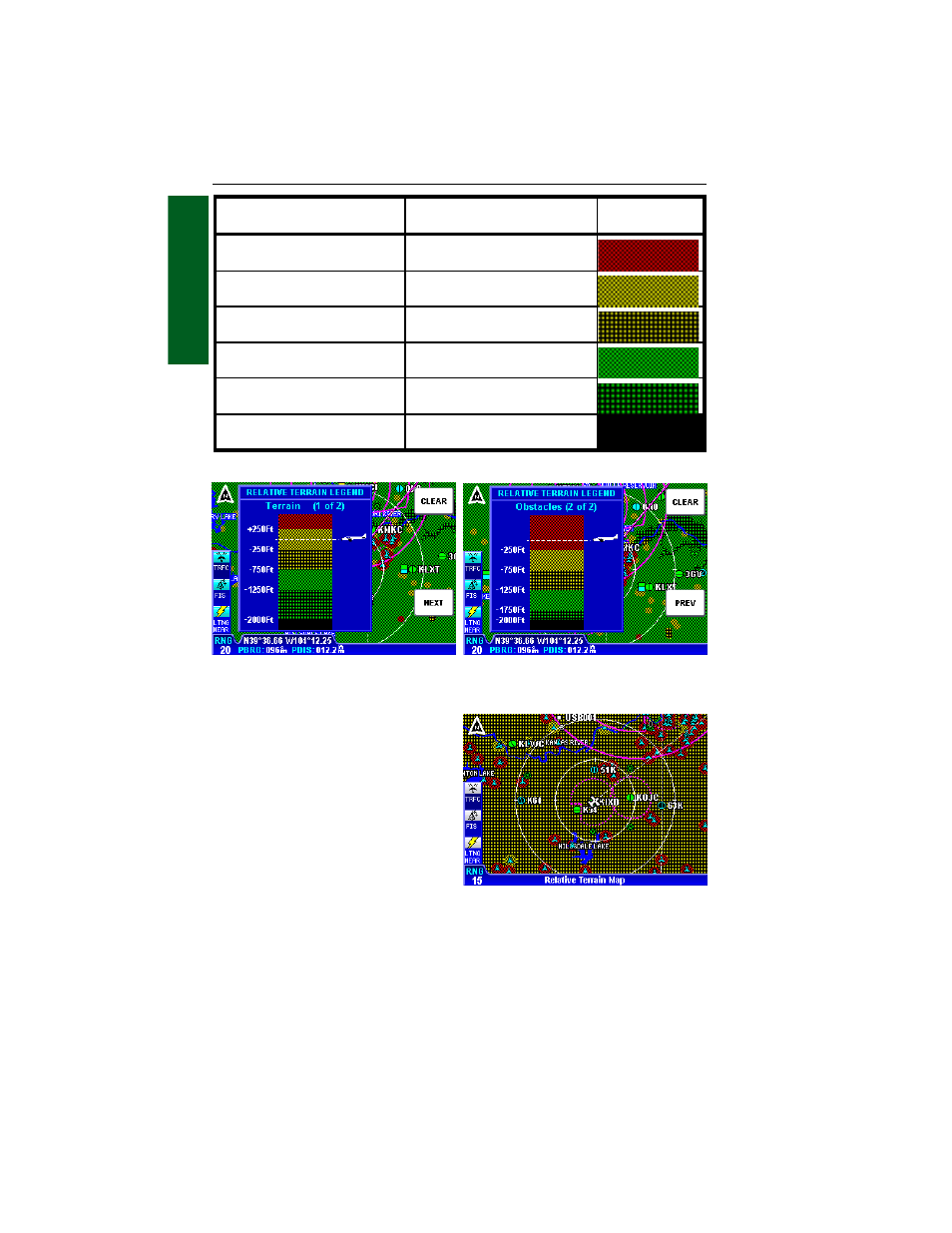

A color key can be displayed by
moving the Joystick Pointer and
pressing the LEGEND Softkey.
Notice there are two legends when
viewing the Relative Terrain Map
Display. The first page shows the
color key for terrain (Figure 1-18)
and the second (Figure 1-19)
shows the color key for obstacles.
The airplane icon conveys what
colors would be below current air-
craft altitude and what would be
above. The airplane icon itself,
however, does not represent current aircraft altitude. Press the NEXT
and PREV Softkeys to toggle between the two displays. To exit, press
the CLEAR Softkey then press the RESET STICK Softkey.
Figure 1-20 depicts obstacles displayed on the Relative Terrain Map.
Note the differences in color between terrain and obstacles based on an
aircraft altitude of 2,000 ft MSL. Obstacles are enhanced on the Relative
Aircraft Altitude Relative to
Terrain (feet)
Aircraft Altitude Relative to
Obstacle (feet)
Color
250 ft. or more below sur-
rounding terrain
250 ft. or less above obstacle
Between 249 ft. below & 250
ft. above surrounding terrain
Between 251 ft. & 750 ft.
above obstacle
Between 251 ft. & 750 ft.
above surrounding terrain
Between 751 ft. & 1250 ft.
above obstacle
Between 751 ft. & 1250 ft.
above surrounding terrain
Between 1251 ft. & 1750 ft.
above obstacle
Between 1251 ft. & 2000 ft.
above surrounding terrain
Between 1751 ft. & 2000 ft.
above obstacle
2001 ft. or more above sur-
rounding terrain
2001 ft. or more above
obstacle
100% Black
Table 1-2 Relative Terrain and Obstacles (Relative Terrain Map)
Figure 1-19
Relative Obstacle Color Key
Figure 1-20
Figure 1-18
Relative Terrain Color Key
