KMD 250 Pilot's Guide
Section 1
Basic Operation
2.

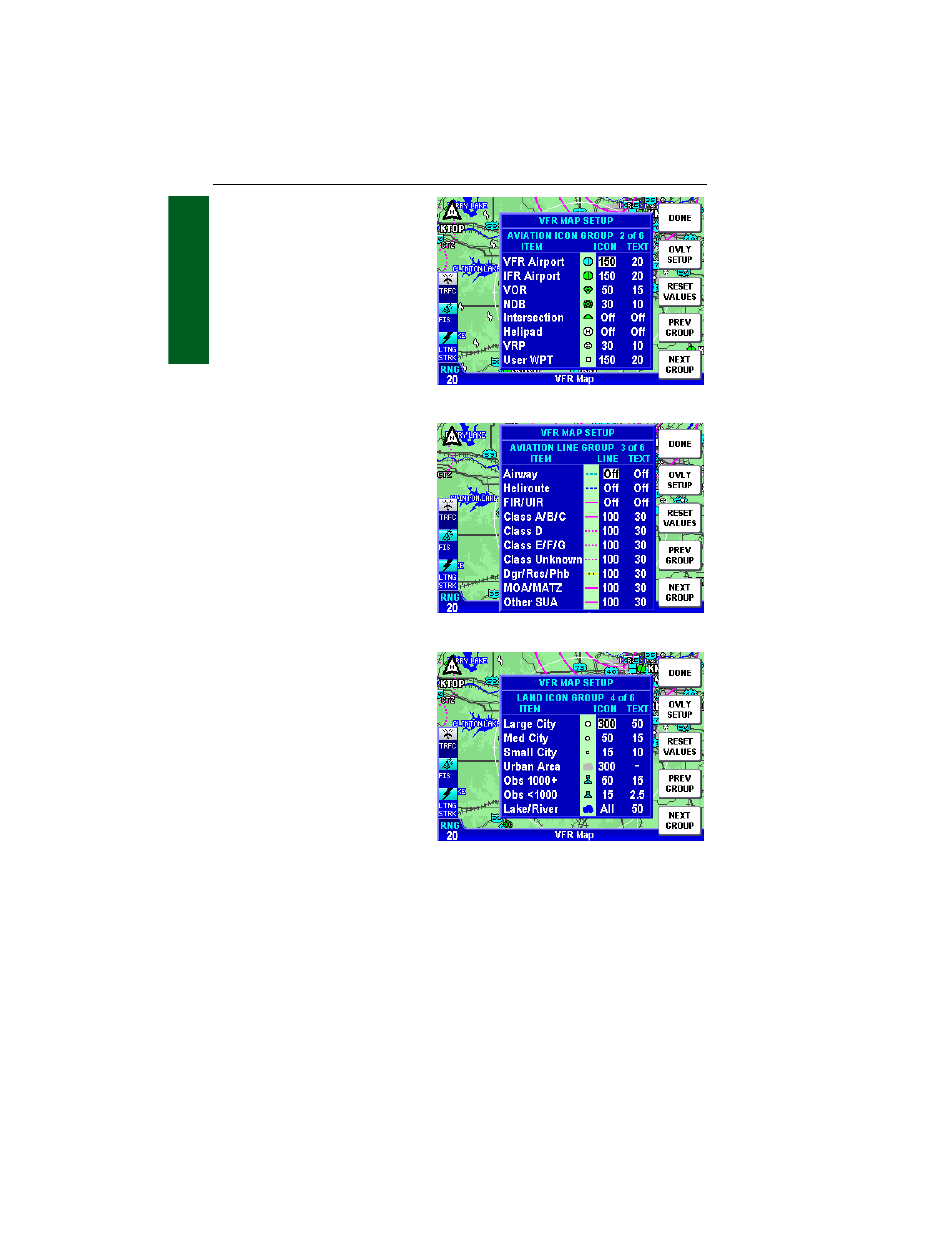

Press the NEXT GROUP
Softkey to display the AVIATI-
ON ICON GROUP Page as in
Figure 1-164.
VFR Map aviation related icons
are shown with corresponding
definitions.
The next series of menus
allows customizing of the Map
Displays to show the amount of
data desired for ease of read-
ability at various display
ranges.
The maximum range settings
at which the ICON, LINE
and/or TEXT is displayed on
the map may be selected for
each category. Use the
Joystick to select the desired
field and turn the Rotary Knob
to change the setting.
3.
Press the NEXT GROUP
Softkey to display the AVIATI-
ON LINE GROUP Page as in
Figure 1-165.
VFR Map aviation related lines
are shown with corresponding
definitions.
The database filters airspace
first by class, then by type. If
the class is not known and the
type does not fit into one of the
categories, it will be displayed
as Unknown.
Other SUA types are Radar
Area, Alert, Caution, Training, Warning or Unspecified.
Again, use the Joystick to select the desired field and turn the Rotary
Knob to change the setting.
NOTE: Class A, E, F and G airspace will not be shown in the United
States, but are in the international data.
4.
Press the NEXT GROUP Softkey to display the LAND ICON
GROUP Page as in Figure 1-166.
System Setup
Figure 1-164
Figure 1-165
Figure 1-166
