Rev 2 Apr/2004 KMD 250 Pilot’s Guide
3-7
Section 3
Traffic Avoidance
AUTO-POP-UP
If AUTO-POP-UP is enabled,
a TA or RA will cause the
Traffic Display to be presented
automatically. The default
range of the pop-up display
will be 7 nm.
To enable AUTO-POP-UP
perform the following:

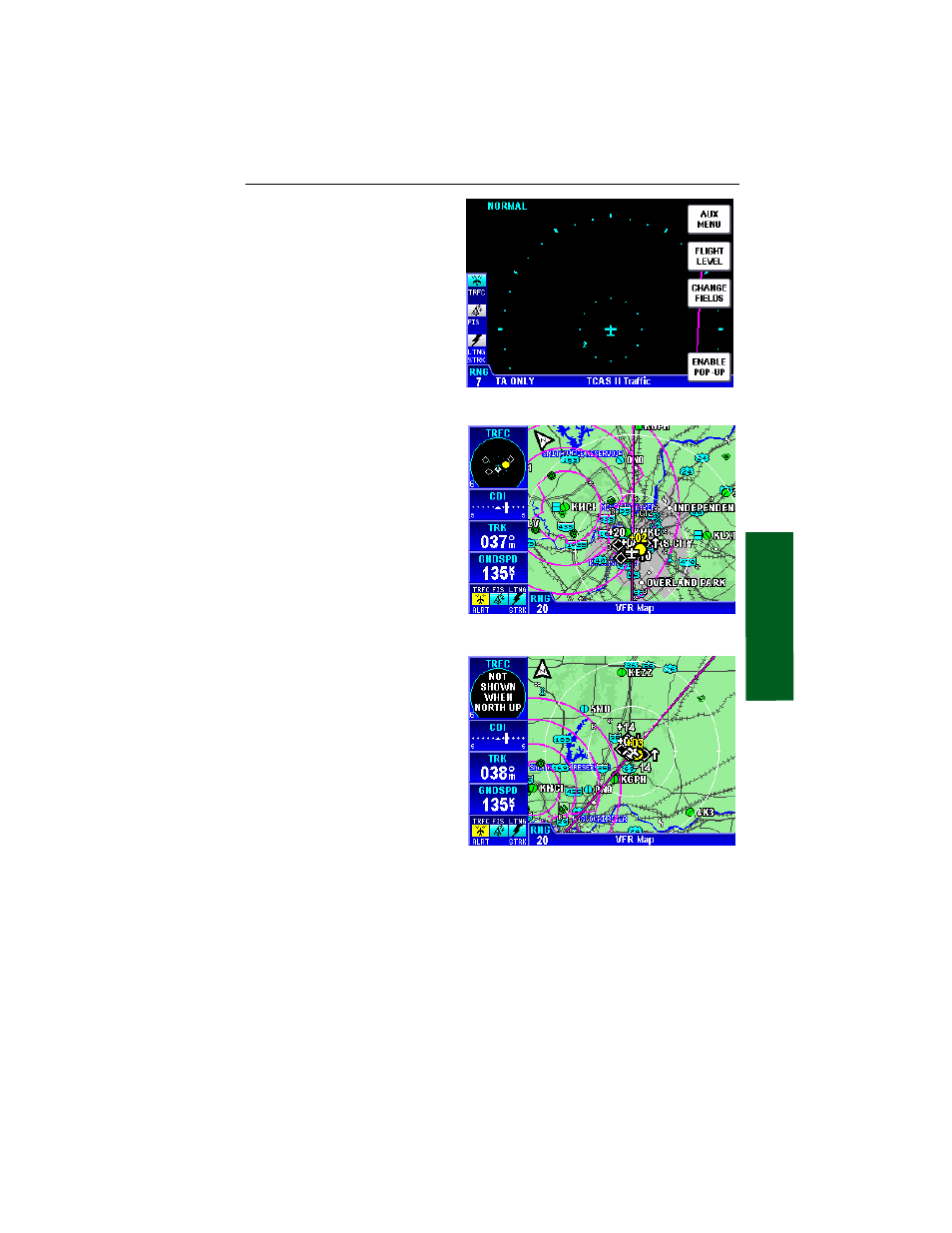

1. While viewing the Traffic
Display, press the MENU Key
to display the ENABLE POP-
UP Softkey as shown in Figure
3-5. This Softkey toggles
between ENABLE and DIS-
ABLE POP-UP.
VIEWING TRAFFIC IN A
DATA FIELD
Traffic may be selected for
viewing in a Data Field as
shown in Figure 3-6 (also see
Section 1 for displaying Data
Fields). Altitude tags and ver-
tical trend arrows will not be
shown with traffic symbol in the
Data Field display.
Traffic will not be available in
the Data Field if the Map
Orientation is set to North Up.
If the Map Display is in North
Up mode, the Traffic Data Field
will appear as shown in Figure
3-7.
TAS/TCAS
Figure 3-5
Figure 3-6
Figure 3-7
