1-32
KMD 250 Pilot's Guide
Section 1
Basic Operation
Map Operation
Rev 2 Apr/2004

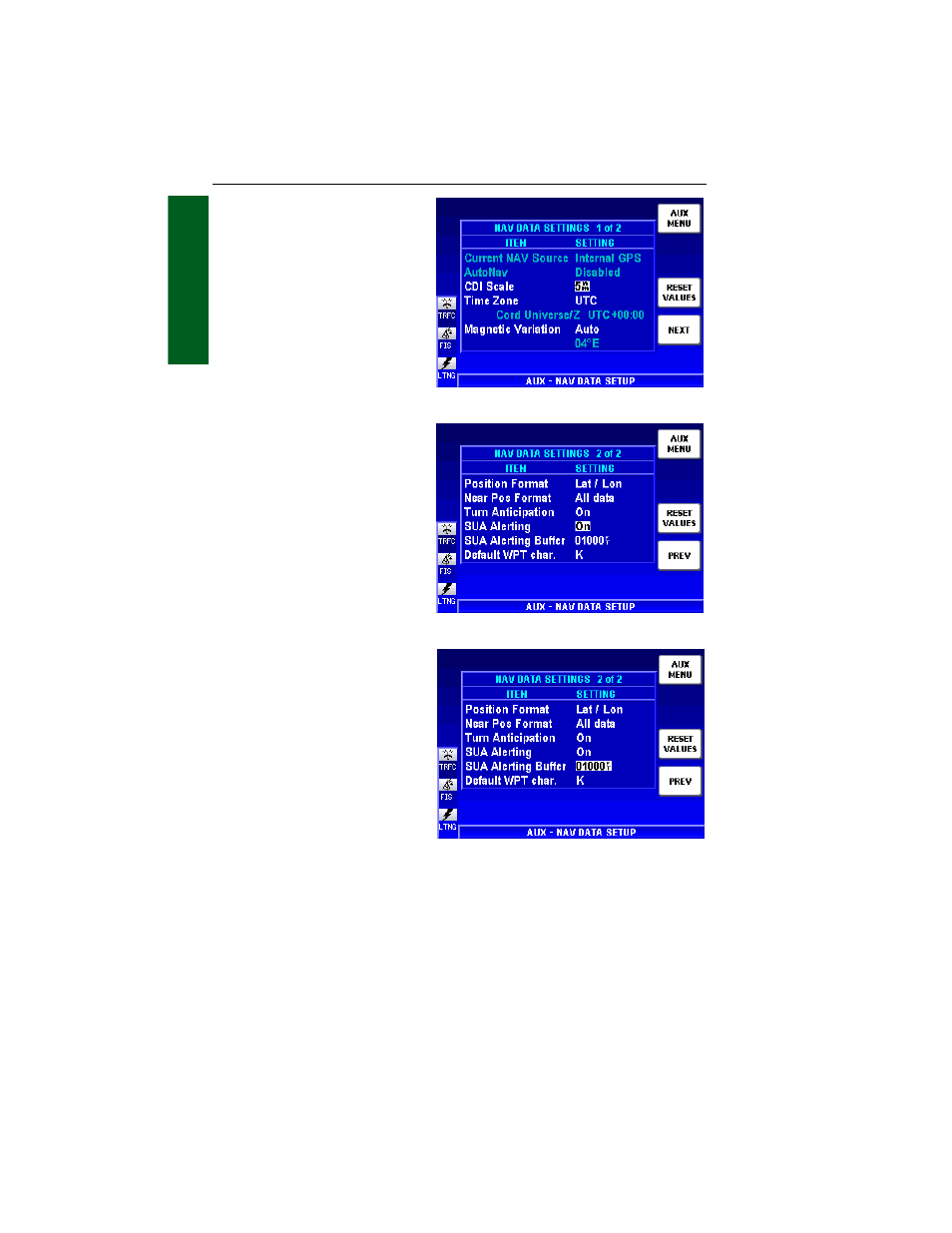

3. Press the SELECT Softkey
to display Figure 1-46.
4. Press the NEXT Softkey to
display Figure 1-47.
5. Use the Joystick to place
the cursor in the selection field
for SUA Alerting.
6. Use the Rotary Knob to
select On or Off.
7. When On is selected the
SUA Alerting Buffer will be
editable. Use the Joystick to
place the cursor over this field
(see Figure 1-48) and use the
Rotary Knob to select the
desired altitude. An Airspace
Alert message will be given
when the aircraft enters within
this selected buffer altitude
from the published SUA alti-
tude boundary. For example: if
the published upper SUA
boundary is 3,000 feet and a
buffer altitude of 1,000 feet is
selected, the Airspace Alert will
be issued when the aircraft
descends to 4,000 feet and is
within the lateral SUA bound-
aries.
Figure 1-46
Figure 1-47
Figure 1-48
