KMD 250 Pilot's Guide
Section 2
FIS Operation
Value Added Service Weather Products
Rev 4 Aug/2007
GRAPHICAL ALERT WEATHER WATCHES (VDL ONLY)
The graphical Alert Weather Watches (AWWs) are derived from the
location description in the textual AWW and displayed as a boundary
box with the appropriate color for the condition as shown in the legend
(for a description, see ALERT WEATHER WATCHES in the Basic
Weather Services section). The “IN” box in the legend indicates the
current aircraft position is within the corresponding forecast condition.
The boundaries are displayed on a map background to enhance situa-
tional awareness as shown on Figure 2-10.

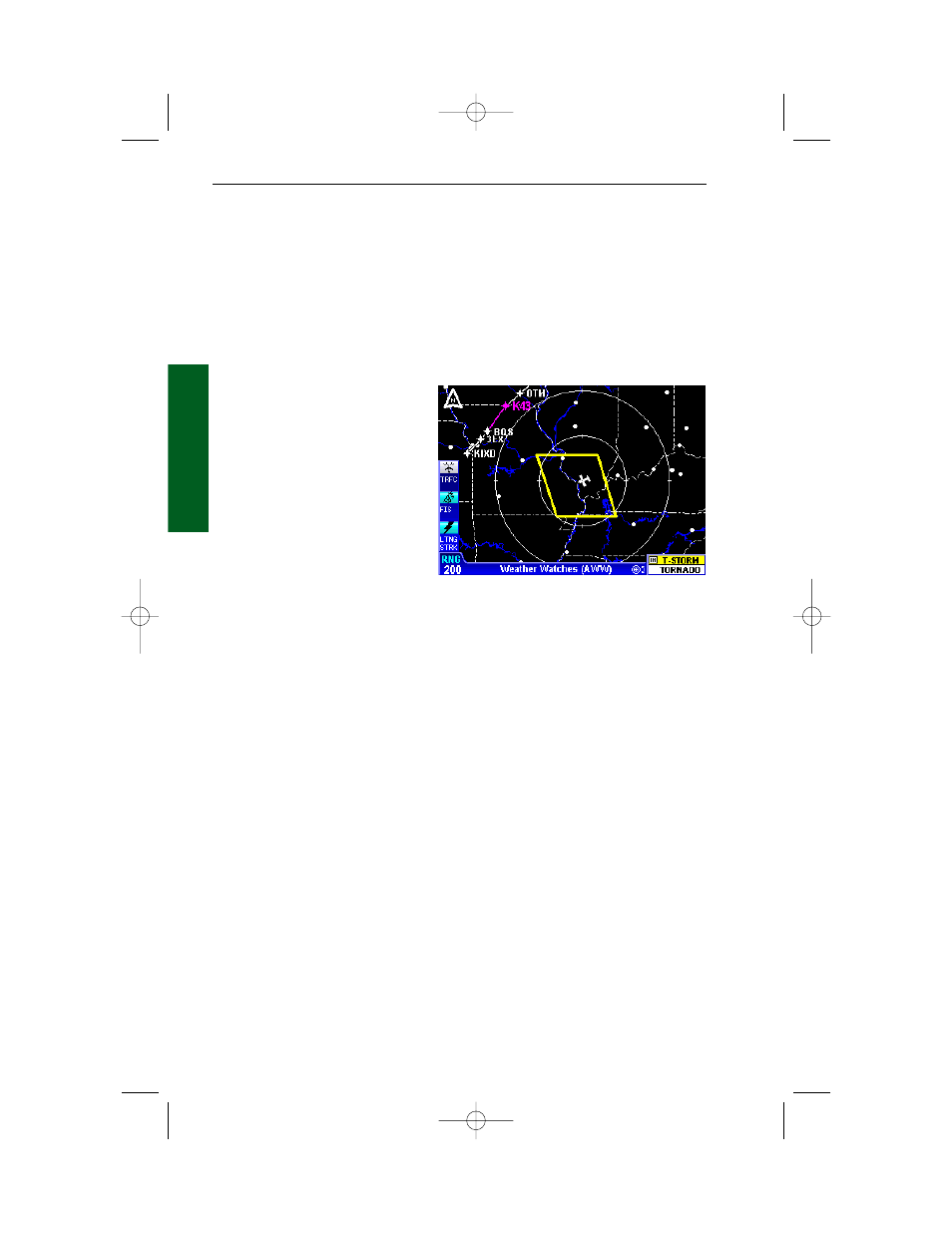

Figure 2-10
