English

43

3 How to Install Accessories In Your PC

Installing Mass Storage Devices

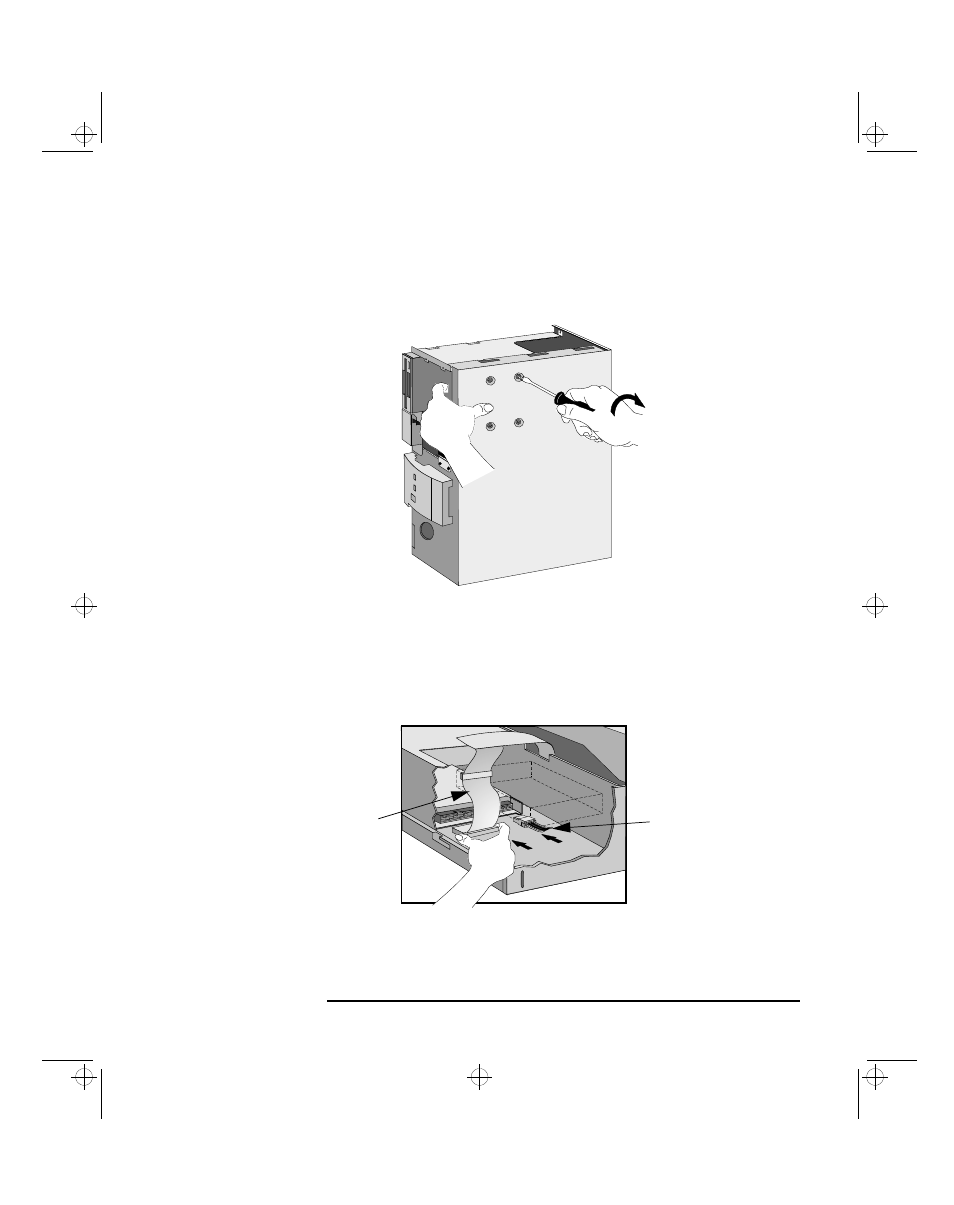

8 Align the drive with the holes in the bottom of the PC. Support the

drive with your hand while securing the drive with the four screws
provided.

9 Support the power supply with your hand and very carefully return

the PC to the upright position.

10 Connect the data and power cables to the rear of the drive.

The connectors are shaped to fit one way only. If you are not sure
which connector to use, refer to “Connecting an IDE Device to a Data
Cable” on page 39.

11 If a device was removed from the middle shelf, replace it.

12 If no device was removed from the middle shelf, replace the RFI

bezel.

Power cable

Data cable
