Moving and replacing the power supply – HP 5/xx Series 4 User Manual
Page 36

3 How to Install Accessories In Your PC
Moving and Replacing the Power Supply
24
English

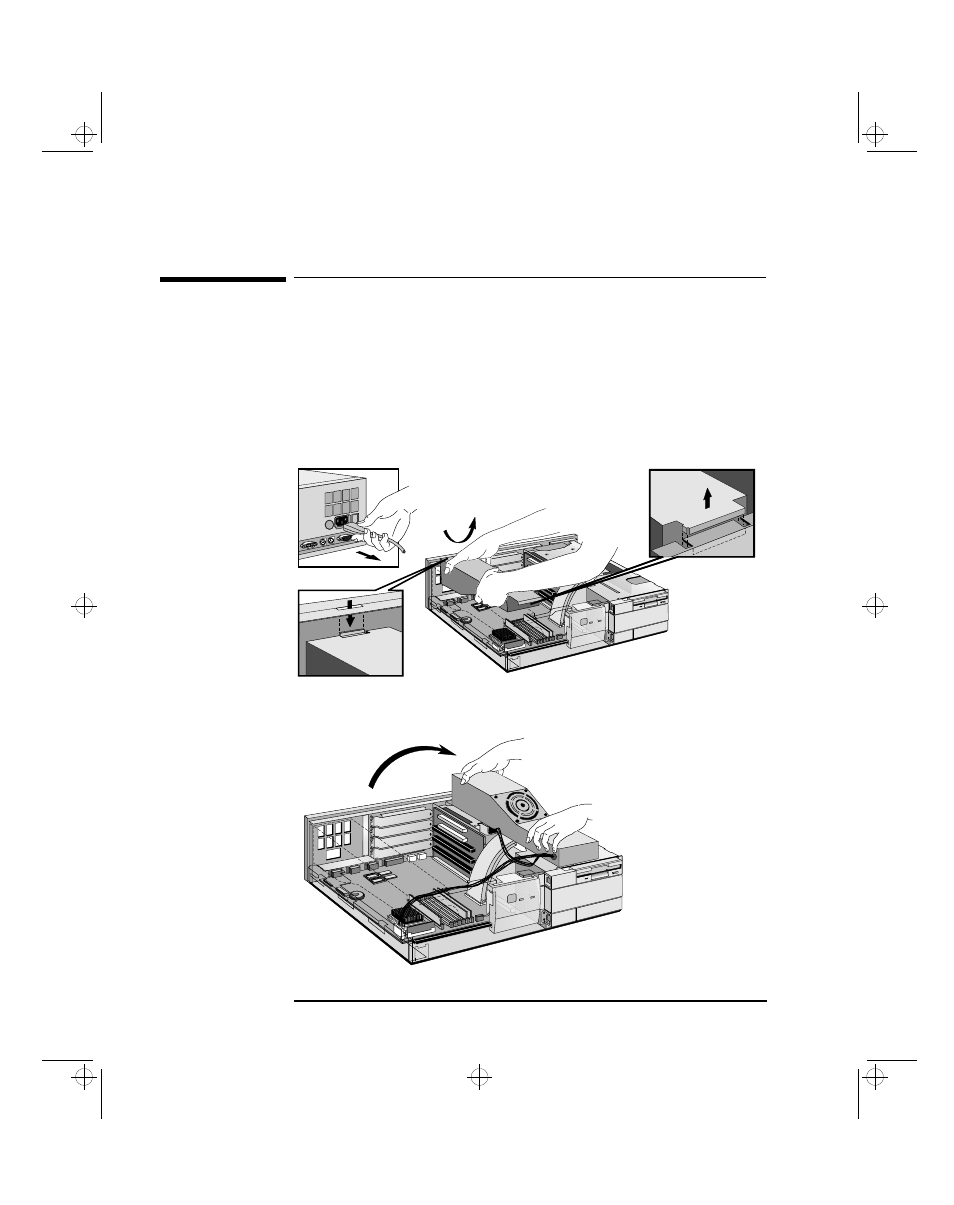

Moving and Replacing the Power Supply
You must move the power supply to access the sockets for the main
memory, cache memory, video memory, processor, battery, or
accessory board slots.
1 Disconnect the computer’s power supply cord.
2 Remove the computer’s cover.
3 Lift the front of the power supply to disengage the hinge on the rear.
4 Lift the power supply clear and lay it upside down on the frame
above the disk drives.
uno.bk : uno3_ins.fb4 Page 24 Monday, July 21, 1997 12:46 PM
