Drive Overload Protection
Solid state motor overload protection is provided in each model at no more than 115% of rated FLA. This overload
protection is based on maximum continuous output current capacity. It will allow up to 200 percent of drive FLA to
be delivered for the amount of time determined by the following chart.
When motor rated FLA is less than drive FLA, the motor FLA parameter is to be entered into drive configuration.
Drive will then provide motor overload protection at correct value.

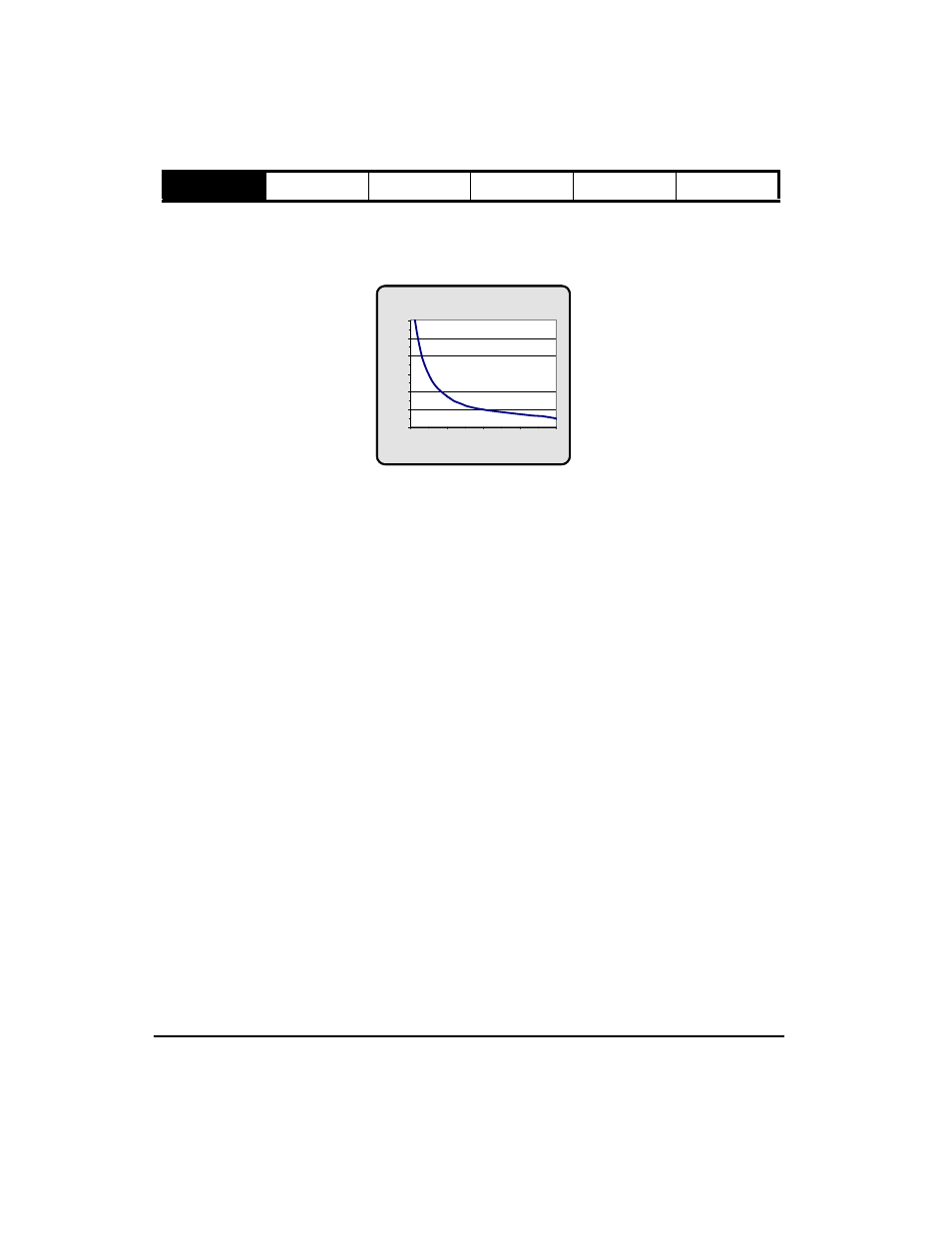

Drive Output Current vs. Time graph
0
10
20
30
40
50
60
100 125 150 175 200
% Drive Rated Current
Ti
me
(
s
e c
onds
)
