Options and Accessories 51
Safety Information Product Overview Installation Diagnostics
Options and
Accessories
Specification
STI-SNCOA
The STI-SNCOA interface board allows access to the analog/sync signals. The STI-SNCOA plugs directly into the
J5 connector on the bottom of the drive. The numbers printed on the connector label correlate to the screw terminal
numbers.
Shield connection points are connected from the shell of the "D" connector to the faston lug connector.

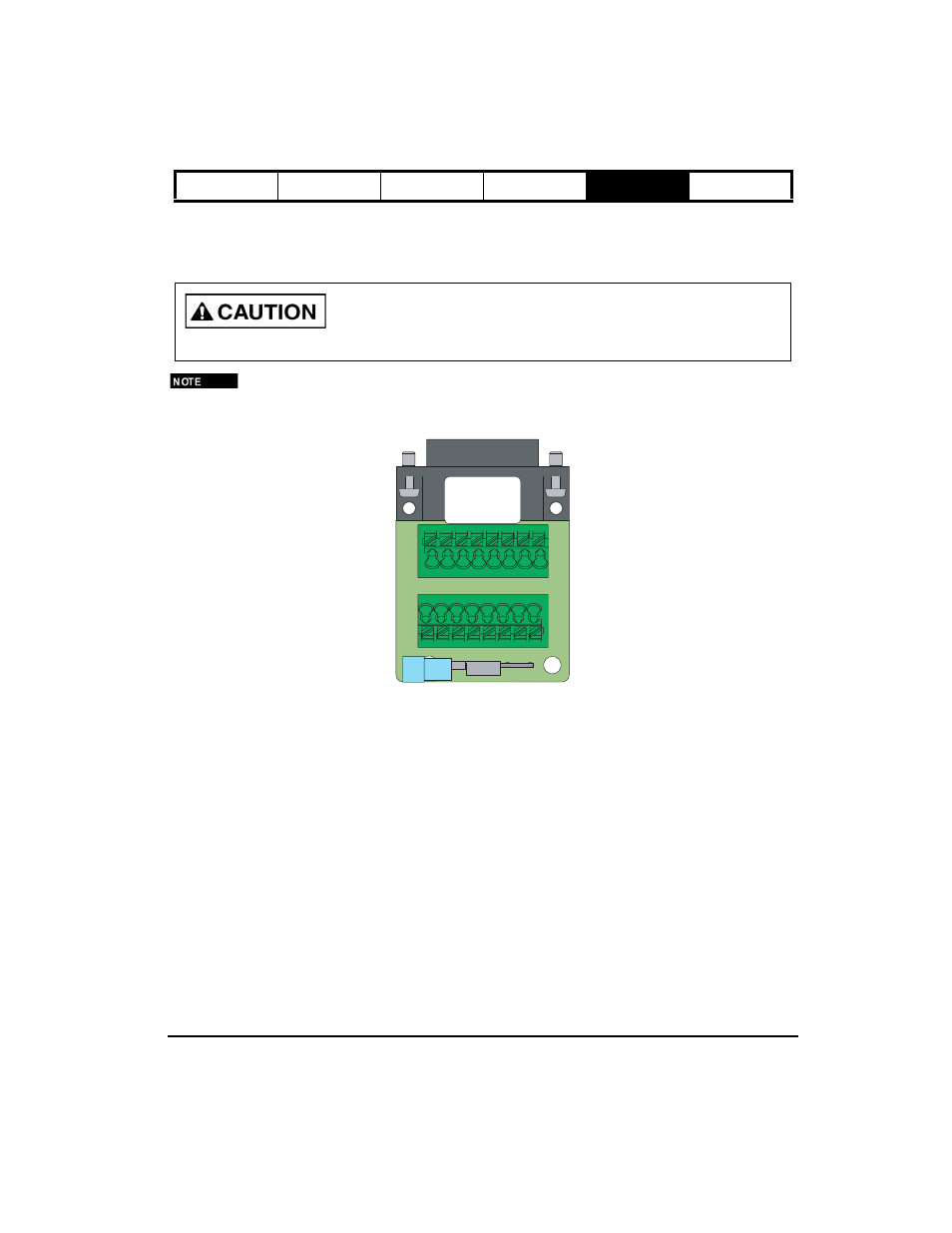

Figure 48: STI-SNCOA Drive Analog/Sync Output Breakout Board
Do not allow ESD directly to terminals. Always discharge static electricity to enclosure, not the drive when
performing maintenance.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
