Figure 27: I/O Connector (J3) Functions

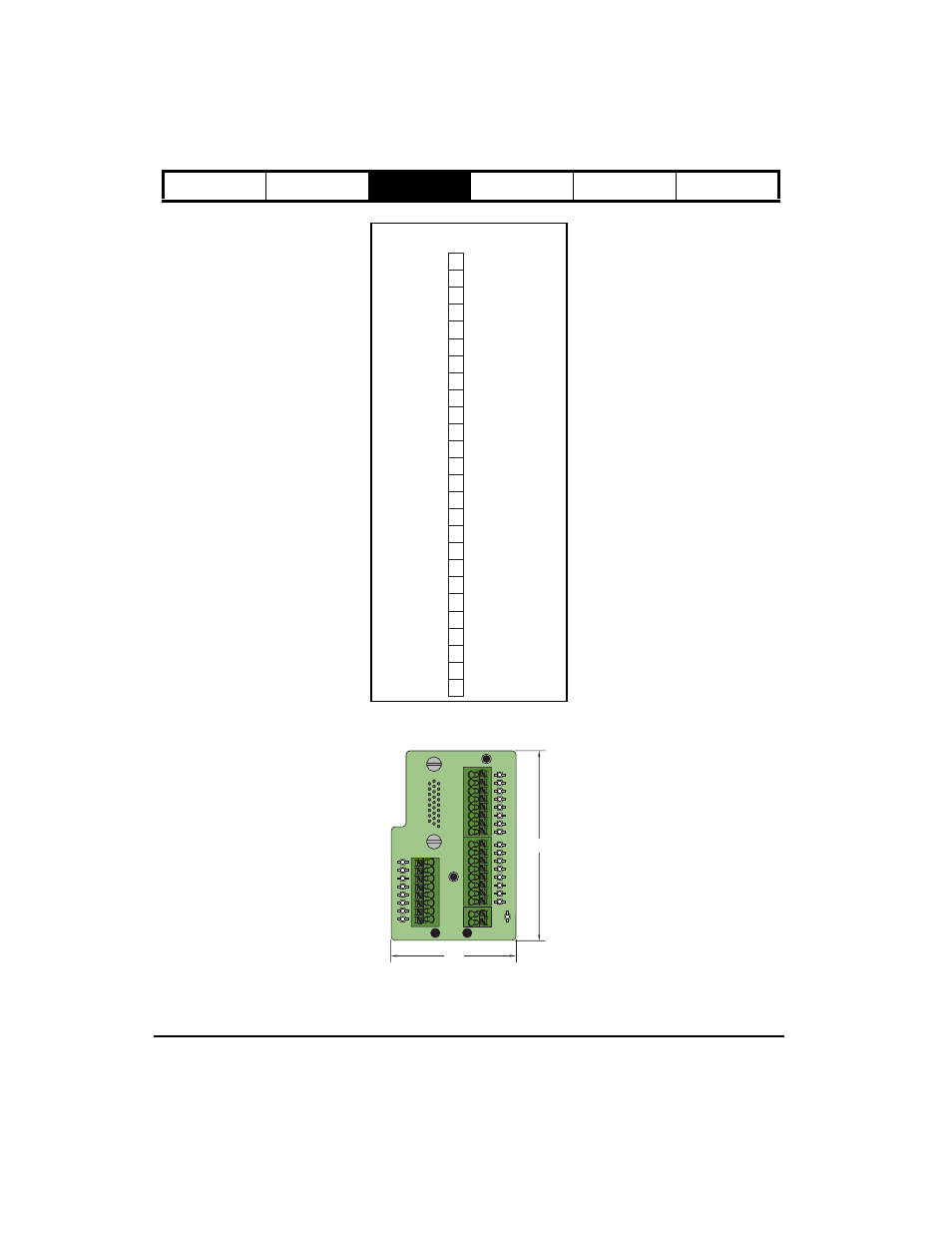

Figure 28: STI-24IO Interface Board
Input Line 5
Input Line 7
7
8
9
5
6
4
3
1
2
16
17
18
14
15
13
12
10
11
25
26
23
24
22
21
19
20
Input Line 1
Input Line 11
Input Line 3
Output Line 1
Output Line 5
Output Line 3
Input Line 9
Input Line 4
Input Line 6
Enable
Input Line 10
Input Line 2
Input Line 12
Output Line 4
Output Line 2
Input Line 8
Output Line 8
Input Line 13
I/O +V
Input Line 15
I/O Common
Output Line 6
Output Line 7
Input Line 14
Function
J3 Connector
Pin#
+24V
0V
0
1
2
3
4
5
6
7
TB1
TB2
TB4
TB3
OUTPUTS
1
2
3
4
5
6
7
8
INPUTS
EN
8
9
10
11
12
13
14
15
3.2
2.1
