SL-31091 Installation Instructions

page 1

12/03 (Rev. 0)

L

IEBERT

M

ULTI

L

INK

™ C

ABLE

A

DAPTER

K

IT

(IRACKMLADPT)

Installation Instructions
Description

The Liebert MultiLink Cable Adapter Kit has two adapters designed for cable connections from a MultiLink

computer to a UPS or to a multiplexer such as the IntelliRack. These DB9-to-RJ45 adapters are used at

either end of an RJ45 straight-through cable, as described in these instructions.
This kit has the following components:
• DB9M - RJ45F adapter, part number ML-ADP-03
• DB9F - RJ45F adapter, part number ML-ADP-04
These instructions describe how to connect the adapters and an RJ45 cable. Step 3 also provides information

to make a longer RJ45 cable, if needed.

Connecting Adapters

1. Connect the adapter labeled ML-ADP-04

to the serial communication port on the

MultiLink computer.

2. Connect the other adapter (ML-ADP-03)

as follows, depending on your system

configuration:
To a multiplexer such as the Intel-

liRack:

Connect the ML-ADP-03 adapter to a

connector on the MultiPort 4 molded

cable assembly.
To a UPS with a DB9 port:

Connect the ML-ADP-03 adapter to the

DB9 communication interface on the

UPS.

3. Connect an RJ45 straight-through cable

between the two adapters. The cable must

be an 8-conductor wire. The pinout for

this cable is:

NOTE
Liebert recommends—although it is not required—powering down your system and UPS before

continuing with the following cable installation.

RJ45 male

RJ45 male

1

———————

1

2

———————

2

3

———————

3

4

———————

4

5

———————

5

6

———————

6

7

———————

7

8

———————

8

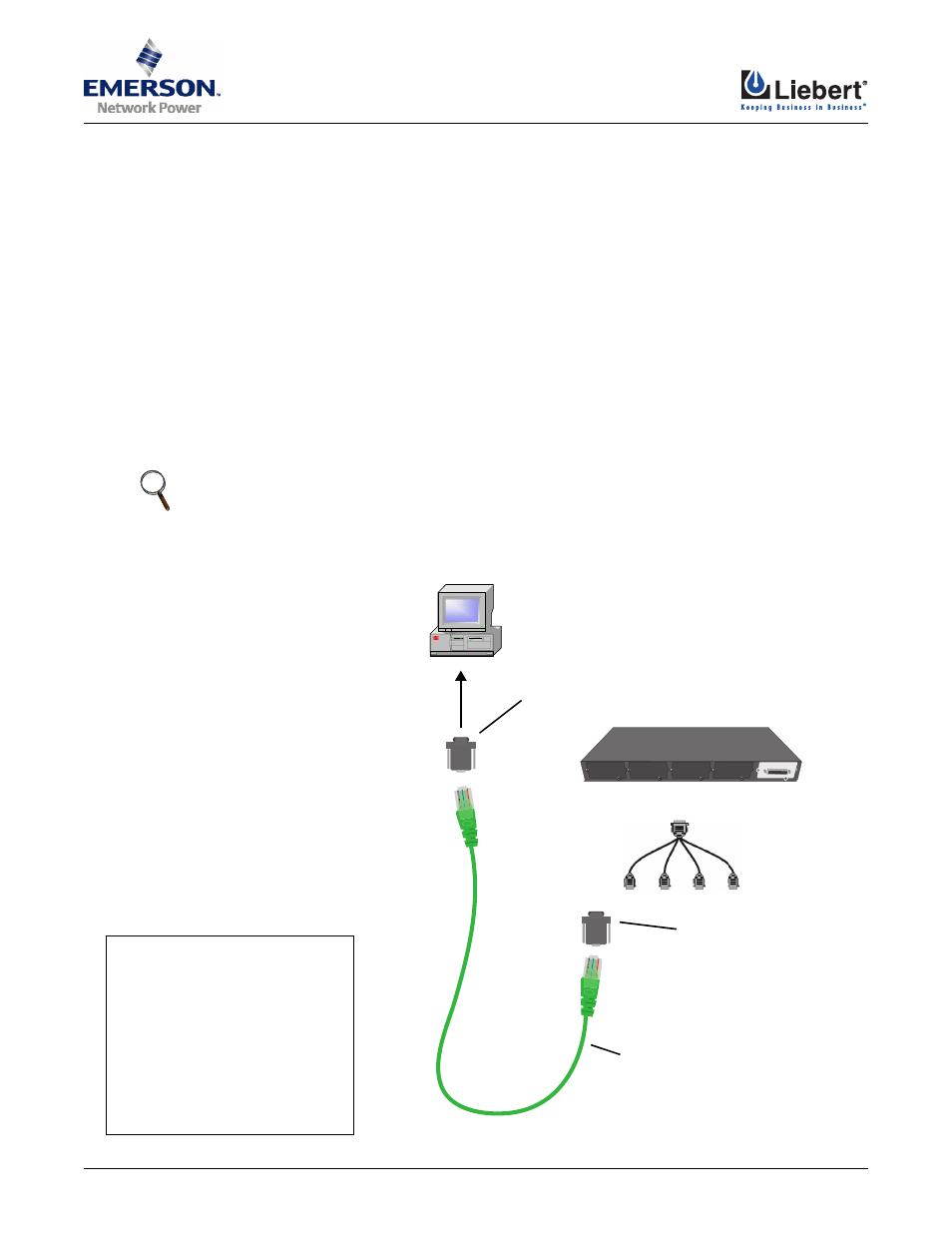

STEP 1

ML-ADP-04

to serial port

on MultiLink

computer

STEP 2

ML-ADP-03 to MultiPort 4

(or to UPS)

STEP 3

RJ45 cable

between adapters

1

2

3

4

MultiPort4

MultiPort 4 molded

cable assembly

IntelliRack
